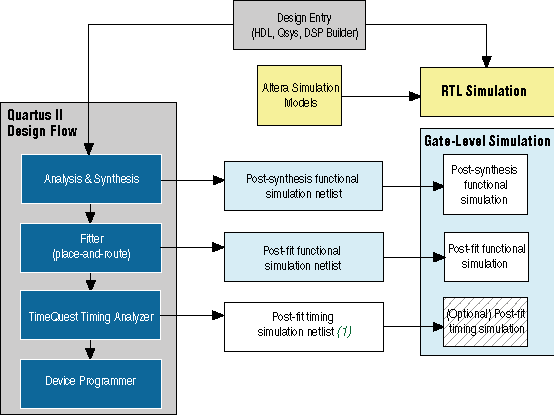

Simulation Flow Diagram





Note:

Gate-level timing simulation is not supported for Arria V, Cyclone V, or Stratix V devices. Rely on TimeQuest static timing analysis rather than on post-fit timing simulation.
