10GBASE-R PHY Intel® FPGA IP
The 10GBASE-R PHY Intel® FPGA Intellectual Property (IP) core allows connectivity directly with any XFP or SFP+ optical module or with any external device with XFI and SFI interfaces.
Intel® Stratix® 10 L- and H-Tile Transceiver PHY user guide ›
Intel® Arria® 10 Transceiver PHY user guide ›
Intel® Cyclone® 10 Transceiver PHY user guide ›

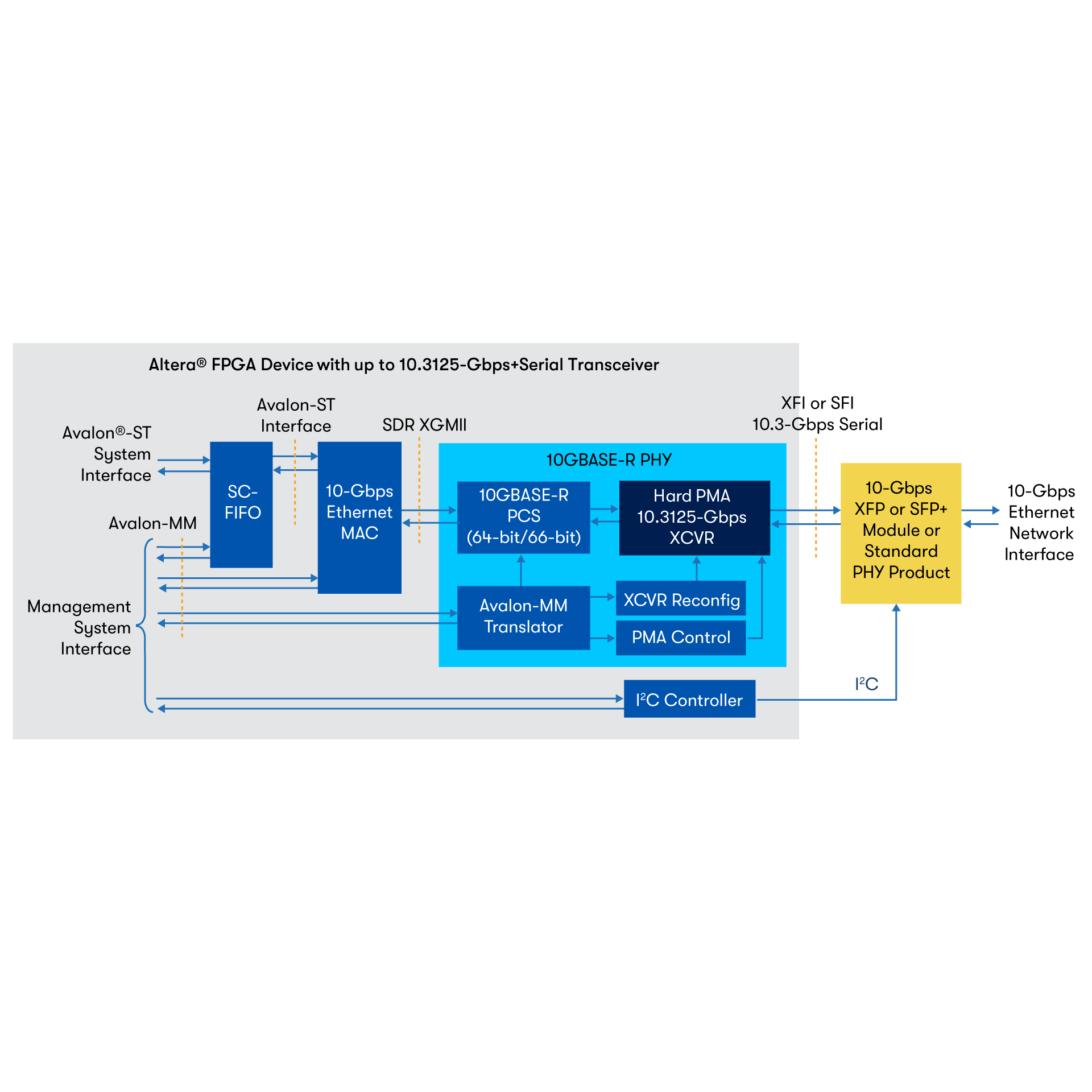

10GBASE-R PHY Intel® FPGA IP
The PHY IP core can be used with either Intel® FPGA IP for 10G Ethernet MAC or with a customer-developed Ethernet MAC via a standard XGMII interface running at 156.25 Mbps.
This PHY IP core is made available as part of the transceiver functionality of the Intel® FPGAs.
Features
- PHY consisting of 10GBASE-R physical coding sublayer (PCS), 10.3125-Gbps physical medium attachment (PMA), and PHY management functions.
- Direct interface with 10GbE MAC for a complete single-chip solution.
- PHY integrated into hard silicon in Intel® Arria® 10, Stratix® V, and Arria® V GZ FPGAs with 10.3125 Gbps serial transceivers. Soft 10GBASE-R PCS is also available in Stratix® IV GT and Arria® V (GT and ST) FPGAs.
- Direct 10.3125 Gbps serial connection for chip-to-chip, chip-to-optical module, chip-to-PHY device, and backplane applications.
- Dynamic partial reconfigurable I/O (DPRIO) support in serial transceivers to adapt to various 10GBASE-R channel characteristics and devices in systems during operation.
- Implementing the Ethernet standard 10GBASE-R PHY functions: 64b/66b encoding or decoding, scrambling/descrambling, receiver rate matching for clock frequency compensation, 66b/16b gear-boxing, and data serialization or deserialization to and from 10.3125 Gbps line.
- Receiver-link fault status detection.
- Local serial loop-back from transmitter to receiver at serial transceiver for testing.
- IEEE 1588 v2 option for high precision and accuracy time stamping.
- High-performance internal system interfaces
- Intel® FPGA Avalon® Streaming (Avalon-ST) single data rate (SDR) XGMII, 72 bits at 156.25 Mbps for data transfer
- Intel® FPGA Avalon® Memory-Mapped (Avalon-MM) 32 bits for slave management
- IEEE 802.3 10GbE standard compliant, clauses 46, 49, and 51.
- Passed University of New Hampshire Interoperability Lab (UNH-IOL) 10 Gbps Ethernet MAC and PCS validation tests.
IP Quality Metrics
Basics |
|
|---|---|
Year IP was first released |
2015 |
First version of Intel Quartus Prime Software supported |
16.1 |
Ordering Codes |
IP-10GMRPHY: Intel Arria 10 IP-10GBASERPCS: Cyclone V series IP-10GMRPHY: Intel Cyclone10 IP-10GETHMAC: 10-Gbps Ethernet MAC MegaCore |
Status |
Production |
Deliverables |
|
Customer deliverables include the following: Design file (encrypted source code or post-synthesis netlist) Simulation model for ModelSim*- Intel FPGA Edition Timing and/or layout constraints Documentation with revision control Readme file |
Y |
Any additional customer deliverables provided with IP |
|
Parameterization GUI allowing end user to configure IP |
Y |
IP core is enabled for Intel FPGA IP Evaluation Mode Support |
Y |
Source language |
Verilog |
Testbench language |
|
Software drivers provided |
N |
Driver OS Support |
|
Implementation |
|
User interface |
XGMII Single Data Rate / GMII / 16 Bits GMII (Data Path), Avalon-MM (Management) |
IP-XACT metadata |
N |
Verification |
|
Simulators supported |
Mentor Graphics*, Synopsys*, Cadence* |
Hardware validated |
Intel Stratix 10, Intel Arria 10 |
Industry-standard compliance testing performed |
Y |
If Yes, which test(s)? |
46, 49, and 51 |
If Yes, on which Intel FPGA device(s)? |
|
If Yes, date performed |
|
If No, is it planned? |
N |
Interoperability |
|
IP has undergone interoperability testing |
N |
If yes, on which Intel FPGA device(s) |
|
Interoperability reports available |
N |
