Agilex™ 7 FPGA I-Series Transceiver Development Kit (6x F-Tile)
The Agilex™ 7 FPGA I-Series Transceiver development kit delivers a complete prototyping and reference platform design environment that includes hardware and software for developing with Agilex™ 7 FPGA I-Series containing 6x F-Tiles.
Learn more about Agilex™ 7 FPGA I-Series devices ›
You can use this development kit to:
- Evaluate Agilex™ 7 FPGA I-Series designs (6x F Tile ) transceiver capabilities.
- Evaluate F-Tile FGT and FHT transceiver performance.
- Generate and check pseudo-random binary sequence (PRBS) patterns.
- Dynamically change differential output voltage (VOD) pre-emphasis and equalization settings to optimize transceiver performance for your channel.
- Perform jitter analysis.
- Accelerate your product design for general purpose embedded solution as well as Wireline OTN, muxponder, multiplexer, crosspoint switch, Wireless designs etc., with FMC+ connectors.
Table 1. Ordering Information
| Ordering Code | Check Distributor Availability | Agilex™ 7 FPGA I-Series Device |
|---|---|---|
| DK-SI-AGI040FES | AGIC040R39A2E2VR0 |
Table 2. Development Kit Contents and Features
What is included |
|
|---|---|

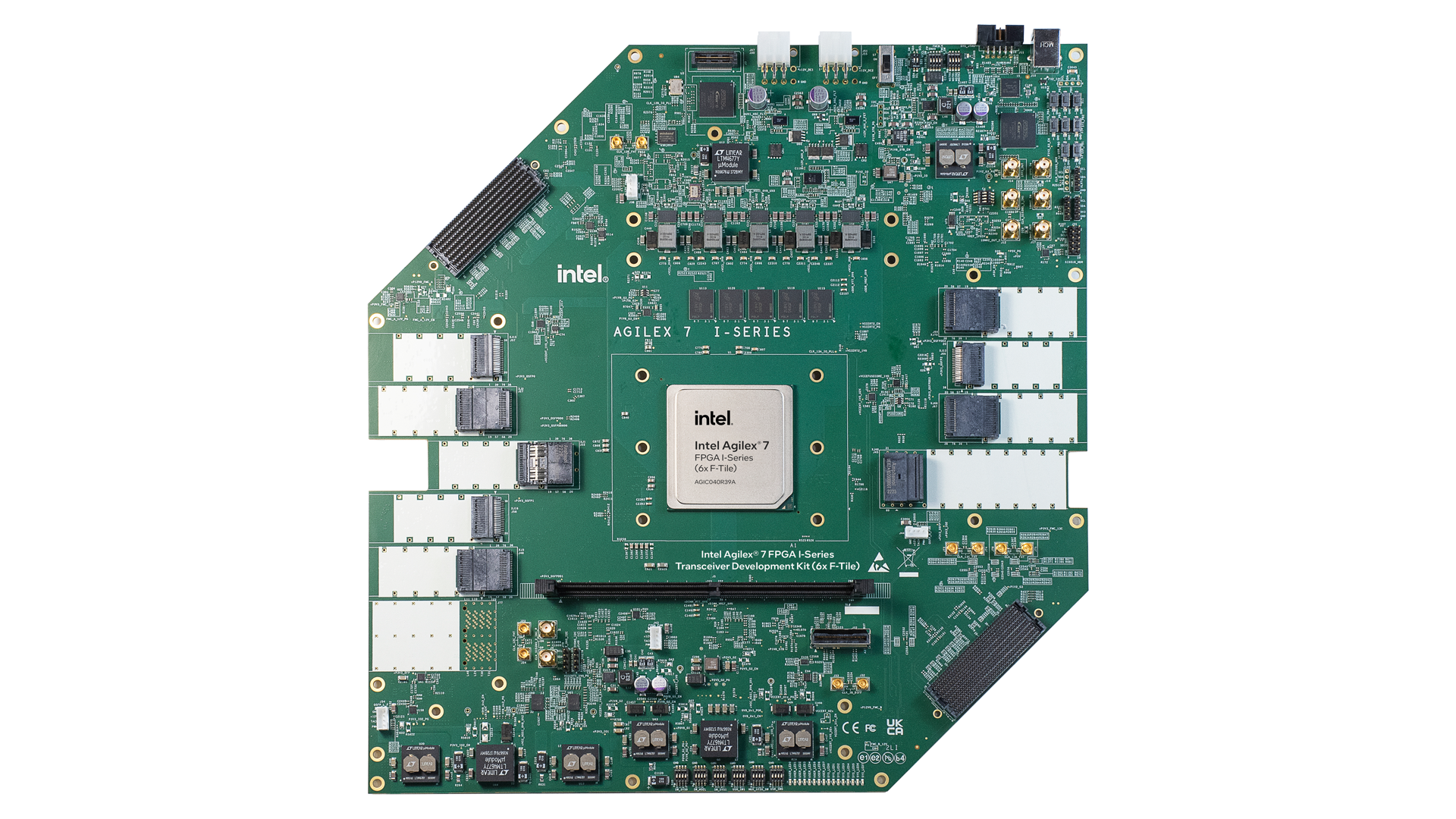

| Board | Agilex™ 7 FPGA I-Series Transceiver Development Board mounted with Agilex™ 7 FPGA I-Series, 2700 KLE, 3184B package |
| Device | AGIC040R39A2E2VR0 |
| Form Factor | Tabletop |
| Features and Connectors | F-Tile: 4 x QSFP–DD; QSFP-DD800;3xQSFP; SFP; OSFP; 2x FMC+, MCIO (PCIe 4.0 x4) Note: QSFP-DD and OSFP work up to 400 Gbps (50G x 8) PAM4 on DK-SI-AGI040FES (ES version of the development kit). QSFP-DD800 and OSFP work up to 800 Gbps (100G x 8) PAM4 in DK-SI-AGI040EA (Production version of the development kit). |
| DDR Memory | On-board DDR4 32Gb SDRAM 3200 MT/s (2G x16) 1x DDR4 DIMM socket
|
| (QSFP) Cages | 4x QSFP–DD; QSFP-DD800; 3x QSFP |
| Cables and Adapters | USB 2.0 Type B cable Ethernet cable 240W power adapter and NA/EU/JP/UK cords ATX power convert cable - 24 pin to 6 pin |
| Software | A one-year license for the Quartus® Prime Pro Edition design software is included with the purchase of the kit. Refer to Intel® FPGA Software Installation and Licensing for more information. |
Table 3. Documentation
| Design Files | Content Description |
|---|---|
| User Guide | Documentation about setting up the development kit and using the included software (Quartus® Prime and installer package) |
Installer Package |
A single installation file containing:
Download and unzip the Design Files first, then install the Board Test System. |
| Board Schematic | DK-SI-AGI040FES |
Note:
Buyer represents that it is a product developer, software developer or system integrator and acknowledges that this product is an evaluation kit that is not FCC authorized, is made available solely for evaluation and software development and may not be resold.
