Agilex™ 7 FPGA I-Series Transceiver-SoC Development Kit (4x F-Tile)
The Agilex™ 7 FPGA I-Series Transceiver SoC development kit delivers a complete design environment that includes both hardware and software for developing with Agilex™ 7 FPGA I-Series that contain 4x F-Tiles.
Learn more about Agilex™ 7 FPGA I-Series devices ›
You can use this development kit to:
- Evaluate Agilex™ 7 FPGA I-Series SoC designs with the hard processor system (HPS).
- Evaluate F-Tile FGT and FHT transceiver performance.
- Generate and check pseudo-random binary sequence (PRBS) patterns.
- Dynamically change differential output voltage (VOD) pre-emphasis and equalization settings to optimize transceiver performance for your channel.
- Perform jitter analysis.
- Design for flexible protocol support in Video and Vision, JESD204C, SerialLite IV, CPRI, and other major standards.
Table 1. Ordering Information
Ordering Code |
Check Distributor Availability |
|
|---|---|---|
| DK-SI-AGI027FC | Mouser |
AGIB027R31B1E1VB |
Table 2. Development Kit Contents and Features
What Is Included |
|
|---|---|

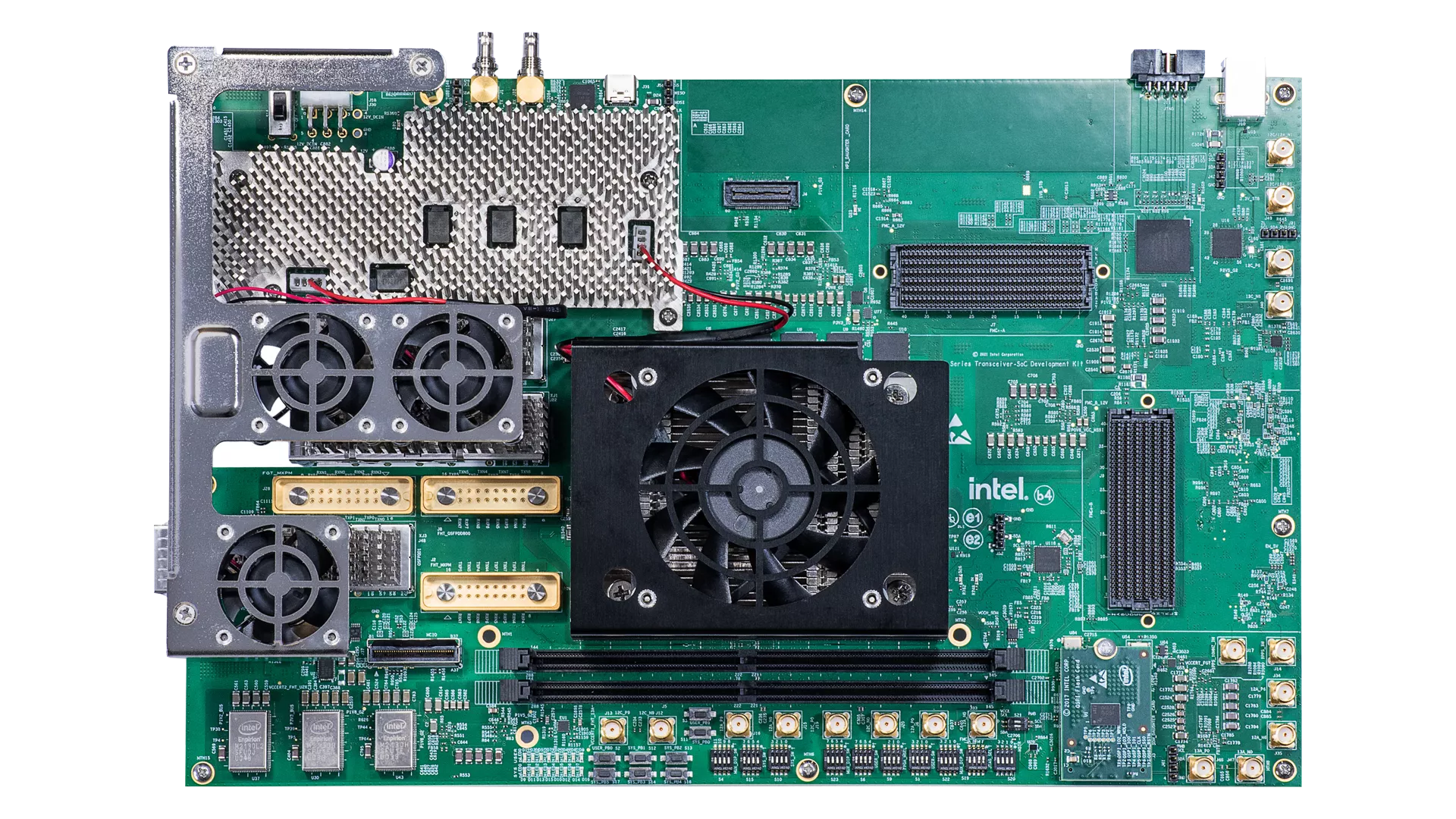

| Board | Agilex™ 7 FPGA I-Series Transceiver-SoC Development Board mounted with Agilex™ 7 FPGA I-Series, 2700 KLE, 3184B package. |
Device |
AGIB027R31B1E1VB |
Form Factor |
Tabletop |
Features and Connectors |

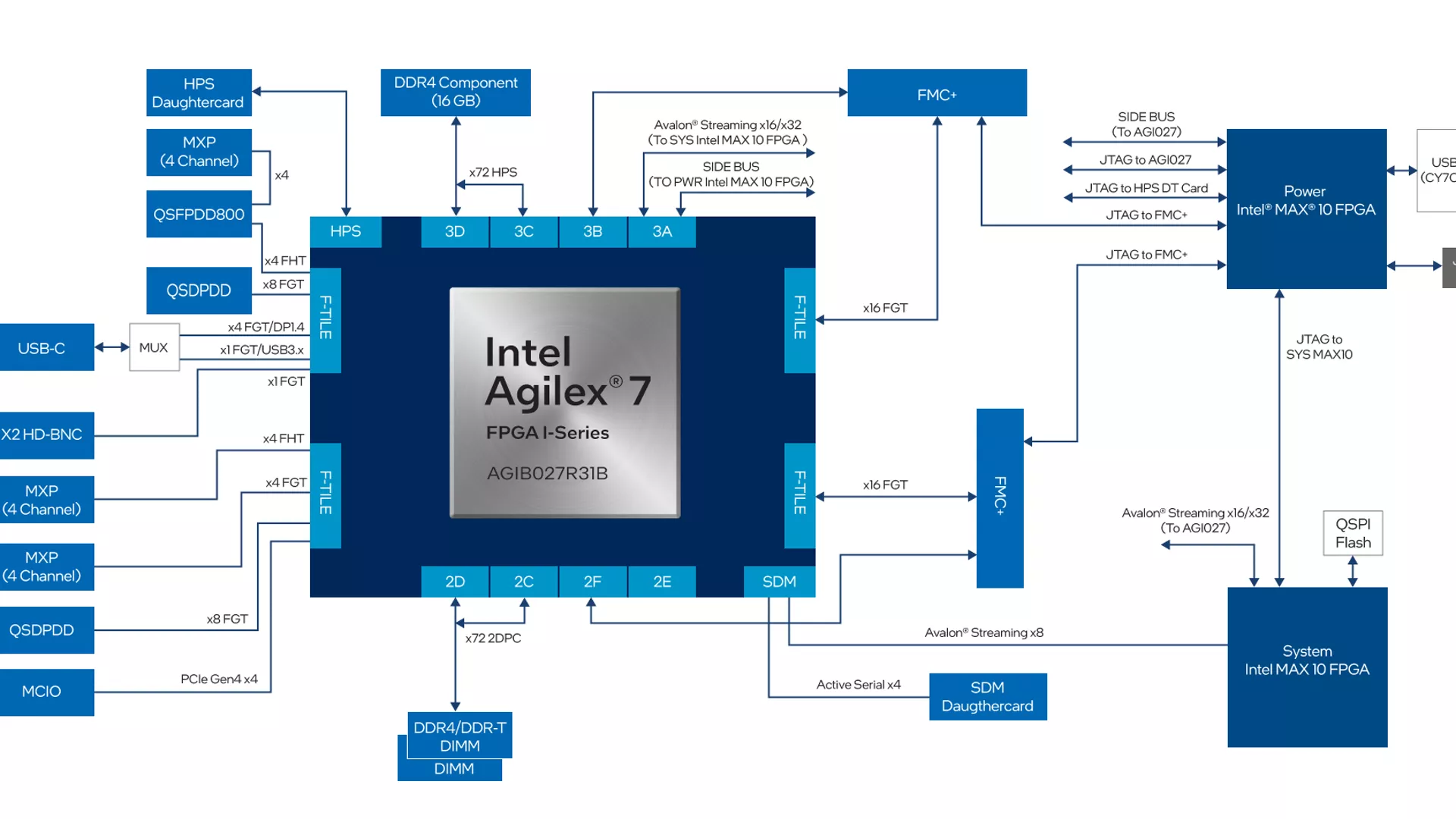

Two FMC+ expansion connectors Transceiver interfaces include MXPM, MCIO, HD-BNC, 2xQSFP-DD and QSFP-DD800 Serial digital interface (SDI) channel |
DDR Memory |
On-board DDR4 memory (8GB) 2x DDR4 DIMMs sockets
|
(QSFP) Cages |
One quad small-form-factor pluggable (QSFP) cage |
Cables and Adapters |
USB 2.0 Type B cable Ethernet cable 240W power adapter and NA/EU/JP/UK cords ATX power convert cable - 24 pin to 6 pin |
Software |
A one-year license for the Quartus® Prime Pro Edition design software is included with the purchase of the kit. Refer to Intel® FPGA Software Installation and Licensing for more information. |
Table 3. Documentation
| Design Files | Content Description |
|---|---|
Documentation about setting up the development kit and using the included software (Quartus® Prime and installer package). |
|
Installer Package DK-SI-AGI027FA (v24.1 or higher) DK-SI-AGI027FC (v24.3 or higher) |
A single installation file containing:
Download and unzip the Design Files first, then install the Board Test System. |
Board Schematic |
DK-SI-AGI027FC DK-SI-AGI027FA |
| Agilex™ 7 FPGA I-Series GSRD (Golden System Reference Design) | The GSRD page on Rocketboards.org has instructions for getting started on hardware and software designs that utilize the HPS (hard processor system) on Agilex™ 7 FPGA I-Series. Golden System Reference Design for DK-SI-AGI027FB, DK-SI-AGI027FA and DK-SI-AGI027FC. |
Note:
Buyer represents that it is a product developer, software developer or system integrator and acknowledges that this product is an evaluation kit that is not FCC authorized, is made available solely for evaluation and software development and may not be resold.
