COM Express C10M-BT
About this offer

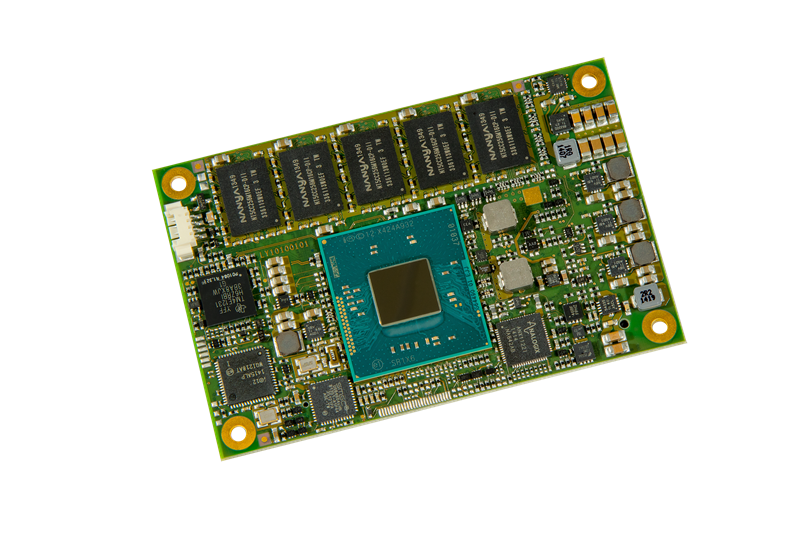

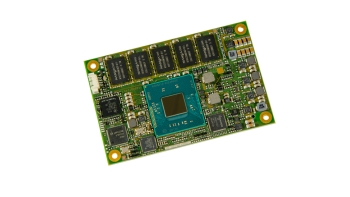

The MSC C10M-BT module is based on the multi-core system-on-chip (SOC) Intel® Atom™/Celeron® that integrates processor core, graphics, memory, and I/O interfaces into one solution. Based on 22nm processor technology it provides outstanding computing and graphics power and highest power efficiency. The MSC C10M-BT brings dual independent display support, DirectX 11.1 and fast DDR3L memory on a very compact, power saving and cost-efficient COM Express Mini module. Different SOCs with single-, dual- and quad-core processors are supported by this design. Besides an extensive set of interfaces and features, the MSC C10M-BT optionally offers hardware based security compliant to the requirements of TCG (Trusted Computing Group). Type 10 pin-out offers USB 3.0 support and digital display interfaces like DisplayPort, HDMI 1.4a and DVI. The rugged design with soldered memory, optional ECC support and extended temperature range opens new application areas. The board is designed and manufactured by Avnet Embedded.
Details
Availability and Pricing
Minimum Order Quantity (Unit): 60
Order Lead Time (Days): 84
Regional Coverage
Americas:
North America Region
Use Case
Digital Signage
Digital Security Surveillance
Industry
Defense and Space
Arts and Entertainment : Amusement and Gambling
Manufacturing
Automotive
Retail
Health and Life Sciences
Transportation and Warehouse
Technical Specifications
- Category:
- Component: Board: COM Express
- Operating Systems:
-
Microsoft Windows Client*:Windows 10 family*
Microsoft Windows Client*:Windows 10 family*:Windows 10*
Microsoft Windows Client*:Windows 7 family*
Microsoft Windows Client*:Windows 7 family*:Windows 7*
Included Intel Technology
Intel® Celeron® Processor
Intel® Celeron® Processor N Series
Intel® Celeron® Processor J Series
Intel Atom® Processor
Intel Atom® Processor E Series
