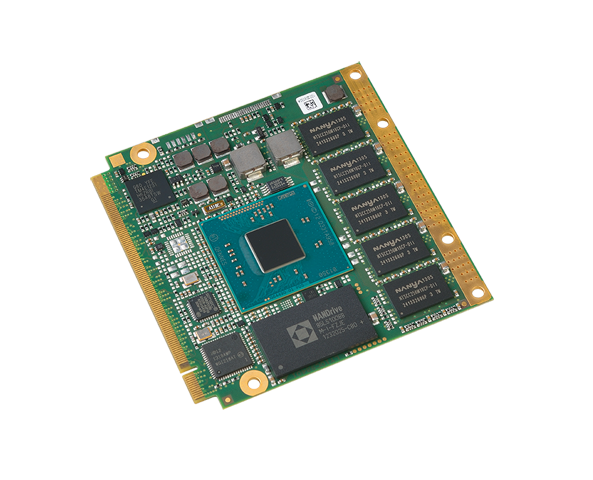

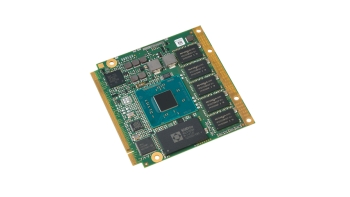

Qseven Q7-BT
About this offer
MSC Qseven-BT Module featuring the new Intel Atom® Processor E3xxx series. Qseven Spec.. Rev. 2.0 compatible module Intel Atom® Single, Dual and Quad Core Processors TDP from 5 Watt based on Intel Atom® E3815 Processor Intel® Generation 7 HD Graphics Up to 8 GB DDR3L memory soldered, optional ECC Up to 32 GB Flash memory soldered PCIe x1, SATA USB 3.0 Host and Client USB 2.0 Host and Client LPC, SPI, I²C, SDIO, UART interfaces Intel® HD Graphics Hardware acceleration for MPEG2, H.264, DirectX11, OpenCL 1.2, OpenGL 3.0 DisplayPort 1.2 (max. 2560x1600) / HDMI 1.4a (max. 1920x1200) Dual-channel LVDS interface 18/24 bit Designed and manufactured by Avnet Embedded
Details
Availability and Pricing
Minimum Order Quantity (Unit): 40
Order Lead Time (Days): 84
Regional Coverage
Americas:
North America Region
Asia, Pacific, and Japan:
Japan
Use Case
Digital Security Surveillance
Digital Signage
Industry
Manufacturing
Retail
Defense and Space
Health and Life Sciences
Automotive
Communications : Publishing (except Internet)
Communications : Data Processing, Hosting and Related Services
Transportation and Warehouse
Arts and Entertainment : Amusement and Gambling
Energy and Utilities
Technical Specifications
- Category:
- Component: Board: Qseven
Included Intel Technology
Intel Atom® Processor
Intel Atom® Processor E Series
Avnet Embedded
Due to a technical difficulty, we were unable to submit the form. Please try again after a few minutes. We apologize for the inconvenience.
Avnet Embedded
The recaptcha has identified the current interaction similar to a bot, please reload the page or try again after some time.
Avnet Embedded builds embedded compute, display and software solutions that meet the demand for innovation and quality, with reduced time to market, utilizing Avnet Embedded’s platform technologies, design and manufacturing capabilities, and a world-class team of experts. Formerly known as MSC Technologies, the business was acquired by Avnet and today continues to design and manufacture award-winning embedded technology in-house. From industrial robotics to advanced medical equipment, Avnet Embedded helps its customers to build the best products for their market. Some of the world’s most well-recognized industry leaders trust Avnet Embedded as their partner, to get their products to market faster, better and stronger. Avnet Embedded focuses its innovative solutions on three core areas: displays, compute, and software. In the compute sector, Avnet Embedded has many years of development and production expertise in designing and manufacturing standard and customized Single Board Computers and complete systems. Due to its consulting competence including providing turnkey solutions, Avnet Embedded secures a competitive advantage for its customers with premium-quality solutions and long-term availability. Utilizing Avnet’s global logistics footprint and sales organizations, Avnet Embedded can serve any customer worldwide.
