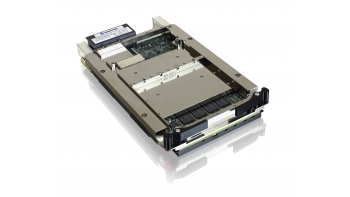

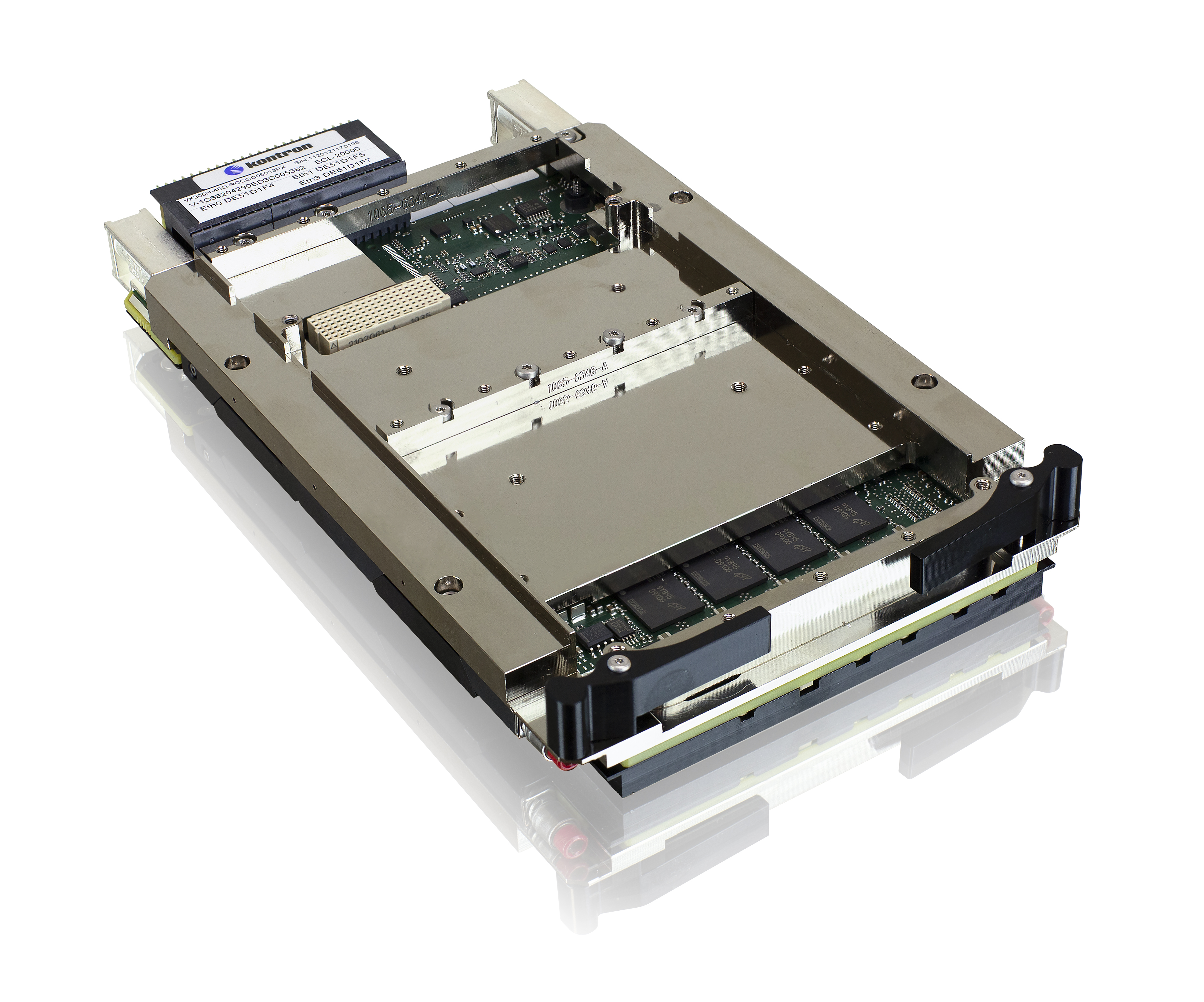

VX305H-40G
About this offer
Building on Kontron's successful VX305x and VX305C-40G SBCs, and designed in alignment with the SOSA™ Technical Standard,the VX305H-40G 3U OpenVPX Single Board Computer leverages the VITA 65 (OpenVPX) SLT3-PAY-1F1U1S1S1U1U2F1H-14.6.11 Payload, or Compute Intensive slot profile adopted by both SOSA™ and the US Army CMOSS Modular Open Systems Architecture programs to bring processing and network performance to 3U systems. Using the highly integrated 12-core Intel® Xeon® D processor, the VX305H-40G complements the 40 Gigabit Ethernet Data Plane (40GBASE-KR4) with a second 10 Gigabit Ethernet Data Plane (10GBASE-KR), a 10 Gigabit Control lane (also 10GBASE-KR), and a wide 8-lane PCI Express 3.0 expansion plane. It also provides an XMC site with an 8-lane PCIe Gen3 interface for adding capabilities such as front-panel I/O or large block storage. As a result, it is a SWaP-C optimized computing platform suitable for a wide range of applications. The ITAR-free VX305H-40G is an ideal choice when designing a high-performance sensor system using modular open systems architecture principals.
Details
Availability and Pricing
Mass Production Schedule: 2019-08-26
Working Sample Schedule: 2019-08-26
Minimum Order Quantity (Unit): 1
Retail Price band: >$1500
Order Lead Time (Days): 120
Regional Coverage
Americas:
North America Region
Latin America Region
Use Case
High Performance Computing
Industry
Defense and Space
Technical Specifications
- Category:
- Component: Board: VPX
Included Intel Technology
Intel® Xeon® Processors
Intel® Xeon® D Processor
