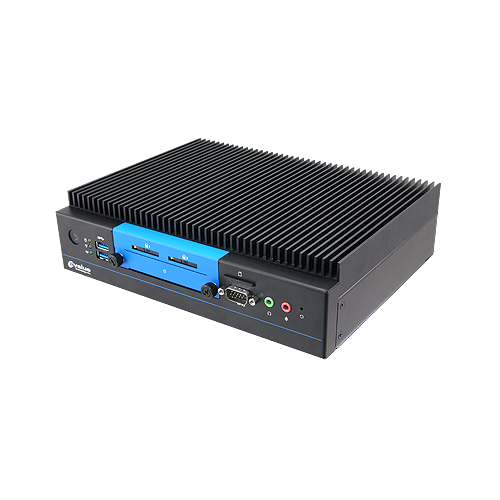

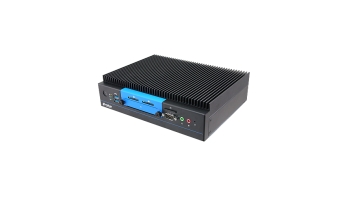

Avalue VMS-APL Intel®Pentium®/Celeron®/Atom® Processor Fanless Vehicle Telematics System
About this offer
Intel® Pentium®/Celeron®/Atom® ProcessorOne 204-pin SODIMM Socket Up to 8GB DDR3L 1866MHz SDRAMRich I/O, 1 DP, 1 LVDS, 1 DC-Out, 1 8-bit GPIO, 1 M.2 SSD, 1 SD Card, 1 2.5" Swappable Drive Bay, 2 Line-out, 2 Mic-in, 2 LAN, 2 COM, 4 USB, 5 Antenna MountingOnboard u-box M8N concurrent GNS module (GPS/QZSS, GLONASS, BeiDou)Rugged Fanless Design Compliant with MIL-STD-810GPower Management and Low Voltage Protection DesignWake on RTC/SMS Via WWAN ModuleOptional CAN modules supports OBD II, SAE J1939 or J1708Wide Range DC Power Input from 9 ~ 36VFanless Operating from -20/40 ~ 70°CSupports TPM 1.2/2.0 (Factory Option), SD card(SD 3.0)
Details
Availability and Pricing
Mass Production Schedule: 2019-06-25
Working Sample Schedule: 2019-06-25
Regional Coverage
Americas:
North America Region
Latin America Region
Asia, Pacific, and Japan:
Japan
Rest of Asia
People's Republic of China:
People's Republic of China
Use Case
Digital Security Surveillance
Industry
Automotive
Transportation and Warehouse
Arts and Entertainment
Communications
Manufacturing
Technical Specifications
- Category:
- System: Industrial Computer
- Operating Systems:
-
Google:Google family*
Google:Google family*:Android*
Included Intel Technology
Intel® Pentium® Processor
Intel® Pentium® Processor N Series
Intel® Celeron® Processor
Intel® Celeron® Processor N Series
Resources
