MI995-8th Gen Intel® Xeon® E/ Intel® Core™ i7/i5/i3 Mini-ITX Motherboard w/ Intel® CM246 PCH
About this offer

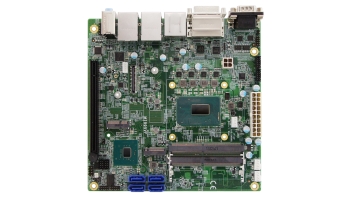

The MI995 is a low-power Mini-ITX based on the latest 8th Gen Intel® Core™ / Xeon® E family processors and Intel® CM246/QM370 mobile chipset. It delivers stunning graphics and media performance and supports up to three independent displays in eDP, HDMI 2.0a, DVI-D and DisplayPort outputs, which makes it ideal for gaming/entertainment, digital signage and POS applications. The motherboard has two DDR4-2666 SO-DIMM sockets accepting up to 32GB memory with ECC. Apart from enhanced performance of CPU and graphics, the MI995 features optimized I/O with onboard 6x USB 3.1, 4x USB 2.0, 4x COM, and up to 4x SATA III to empower real-time IoT and data-intensive applications.The MI995 is available in three variants – supporting Intel CM246/Xeon E-2176M, Intel QM370/Core i7-8850H, and Intel QM370/Core™ i5-8400H, all with dual Intel Gigabit Ethernet. Additionally, it provides 1x PCIe(x16), 1x Mini PCIe, and 2x M.2 slots for NVMe drives and wireless devices, such as WiFi and Bluetooth. Advanced features include iAMT (11.6) for remote system management, TPM (2.0) for systems integrity, and iSMART technology that enables energy-efficient systems.
Details
Availability and Pricing
Working Sample Schedule: 2018-06-10
Mass Production Schedule: 2018-06-25
Minimum Order Quantity (Unit): 1
Order Lead Time (Days): 90
Regional Coverage
Americas:
North America Region
Asia, Pacific, and Japan:
Japan
Rest of Asia
People's Republic of China:
People's Republic of China
Use Case
Digital Signage
Smart City
Print Imaging and Office Automation
Digital Security Surveillance
Industry
Defense and Space
Retail
Transportation and Warehouse
Manufacturing
Arts and Entertainment
Automotive
Technical Specifications
- Category:
- Component: Board: Mini-ITX
Included Intel Technology
Intel® Core™ Processors
8th Generation Intel® Core™ i7 Processors
8th Generation Intel® Core™ i3 Processors
8th Generation Intel® Core™ i5 Processors
Intel® Xeon® Processors
Intel® Xeon® E Processor
