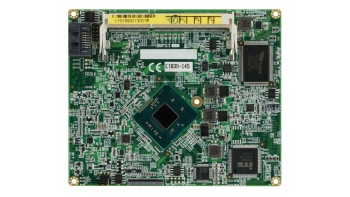

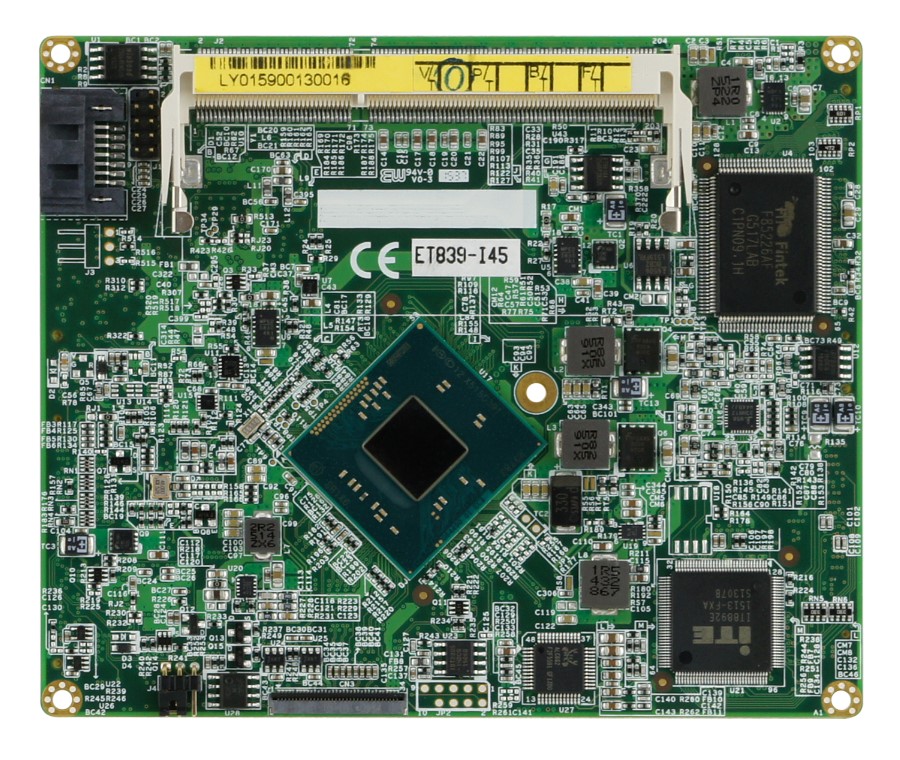

ET839 - Intel® Atom® Processor E3845 Based ETX 3.0 Module
About this offer
The ET839 ETX module supports industrial wide temperature (-20°C -70°C) and low heat dissipation efficiency, making it ideal for use in fanless applications in harsh environments. The platform is powered by a 1.91GHz quad-core Intel® Atom® Processor E3845 SoC that features scalable performance that allows simple replacement or upgrade of current Bay Trail-I ETX solutions without changing the baseboard, regardless of the chassis and thermal designs.The ET839 ETX module also gives customers with flexibility to design different carrier boards with different I/O interface, connectors and functionality specific to their needs and reduce time-to-market.The new ET839 (95 x 114mm) supports up to 8GB of DDR3L SO-DIMM system memory. Integrated graphics enable dual independent displays via 24-bit dual channel LVDS and CRT graphics outputs with resolutions up to 1600 x 1200 and 2048 x 1536 respectively. Other interfaces and expansion provided include 4x USB, SATA II, 2x IDE, 2x COM, audio, LAN, LPT, PS/2 keyboard/mouse, as well as PCI and ISA bus.
Details
Availability and Pricing
Minimum Order Quantity (Unit): 1
Order Lead Time (Days): 99
Regional Coverage
Americas:
North America Region
Latin America Region
Asia, Pacific, and Japan:
Japan
Rest of Asia
People's Republic of China:
People's Republic of China
Use Case
Others
Industry
Manufacturing
Automotive
Transportation and Warehouse
Technical Specifications
- Category:
- Component: Board: ETX
Included Intel Technology
Intel Atom® Processor
Intel Atom® Processor E Series
