MI990 - Mini-ITX Motherboard Supports Latest 6th Gen Intel® Core™ Processors
About this offer

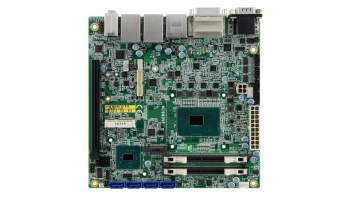

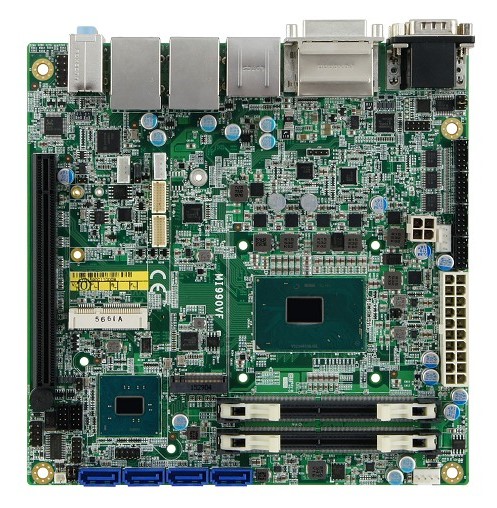

The MI990 Mini-ITX motherboard supporting 6th Gen Intel® Core™ processors fabricated at a 14nm manufacturing process, with clock speeds running up to 3.5 GHz.IBASE’s MI990 mainboard features 6th Gen Intel® Core™ series or Celeron® processors. The motherboard supports two DDR4 SO-DIMM slots for up to 32GB of memory, two USB 2.0, eight USB 3.0, six COM, four SATA III and two SATA II ports, as well as graphics interface for DVI-D, LVDS, HDMI and DisplayPort displays.Equipped with a wide variety of expansion options including one PCI-E(x16), two Mini PCIe and M.2, MI990 is best suited for IoT, industrial, digital signage, medial, retail and factory automation applications. The platform comes with two Gigabit Ethernet controllers and supports digital I/O, RAID, TPM 1.2 and Intel® Active Management Technology (Intel® AMT)11.0. The board also has advanced EuP/ErP and iSMART environmental features that enable power on/off scheduling, power resume and full power down functions.
Details
Availability and Pricing
Minimum Order Quantity (Unit): 1
Order Lead Time (Days): 90
Regional Coverage
Americas:
North America Region
Latin America Region
Asia, Pacific, and Japan:
Japan
Rest of Asia
People's Republic of China:
People's Republic of China
Use Case
Print Imaging and Office Automation
Industry
Transportation and Warehouse
Retail
Manufacturing
Automotive
Defense and Space
Communications
Technical Specifications
- Category:
- Component: Board: Mini-ITX
Included Intel Technology
Intel® Core™ Processors
6th Generation Intel® Core™ i3 Processors
6th Generation Intel® Core™ i5 Processors
Intel® Xeon® Processors
Intel® Xeon® Processor E3 v5 Family
Intel vPro® Platform Technology
