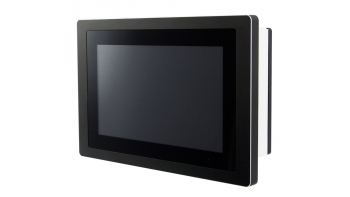

BYTEM-W071-PC - 7-inch Flat Bezel Projected Capacitive Panel PC
About this offer
The BYTEM-W071-PC is a 7-inch wide screen all-in-one Panel PC that utilizes Intel Atom® processors to provide high computing performance and low power consumption for touch panel solutions.The fanless BYTEM-W071-PC operates silently and reliably in harsh environments. It comes with two SO-DIMM slots to accommodate up to 8GB of 1333MHz DDR3L system memory and one 2.5” half-size SATA SSD. Featuring two Gigabit Ethernet and two COM ports, the unit is equipped with a projected capacitive touch screen with IP65-rated protection. BYTEM-W071-PC has a flat bezel design and supports 7H surface hardness against scratches. This Panel PC supports a 12V DC single power input with a 60W power adaptor, which makes it ideal for factory automation or any other industrial applications such as door sign, vending machine, kiosk and interactive information systems.IBASE offers various sizes with the BYTEM series: BYTEM-101-PC for 10.1" and BYTEM-121-PC for 12.1" models. Both models support additional 9V~30V DC power input function.
Details
Availability and Pricing
Working Sample Schedule: 2019-10-14
Regional Coverage
Americas:
North America Region
Asia, Pacific, and Japan:
Japan
Rest of Asia
Use Case
Others
Industry
Retail
Manufacturing
Technical Specifications
- Category:
- System: Panel PC
- Operating Systems:
-
Microsoft Windows Client*:Windows Embedded family*
Included Intel Technology
Intel Atom® Processor
Intel Atom® Processor E Series
