eBOX671-517-FL -- Fanless Embedded System with LGA1151 Socket 7th/6th Gen Intel® Core™ i7/i5/i3 & Celeron® Processor, Intel® Q170, HDMI, DVI-D, VGA, 8-CH PoE, 6 USB and 24 VDC
About this offer

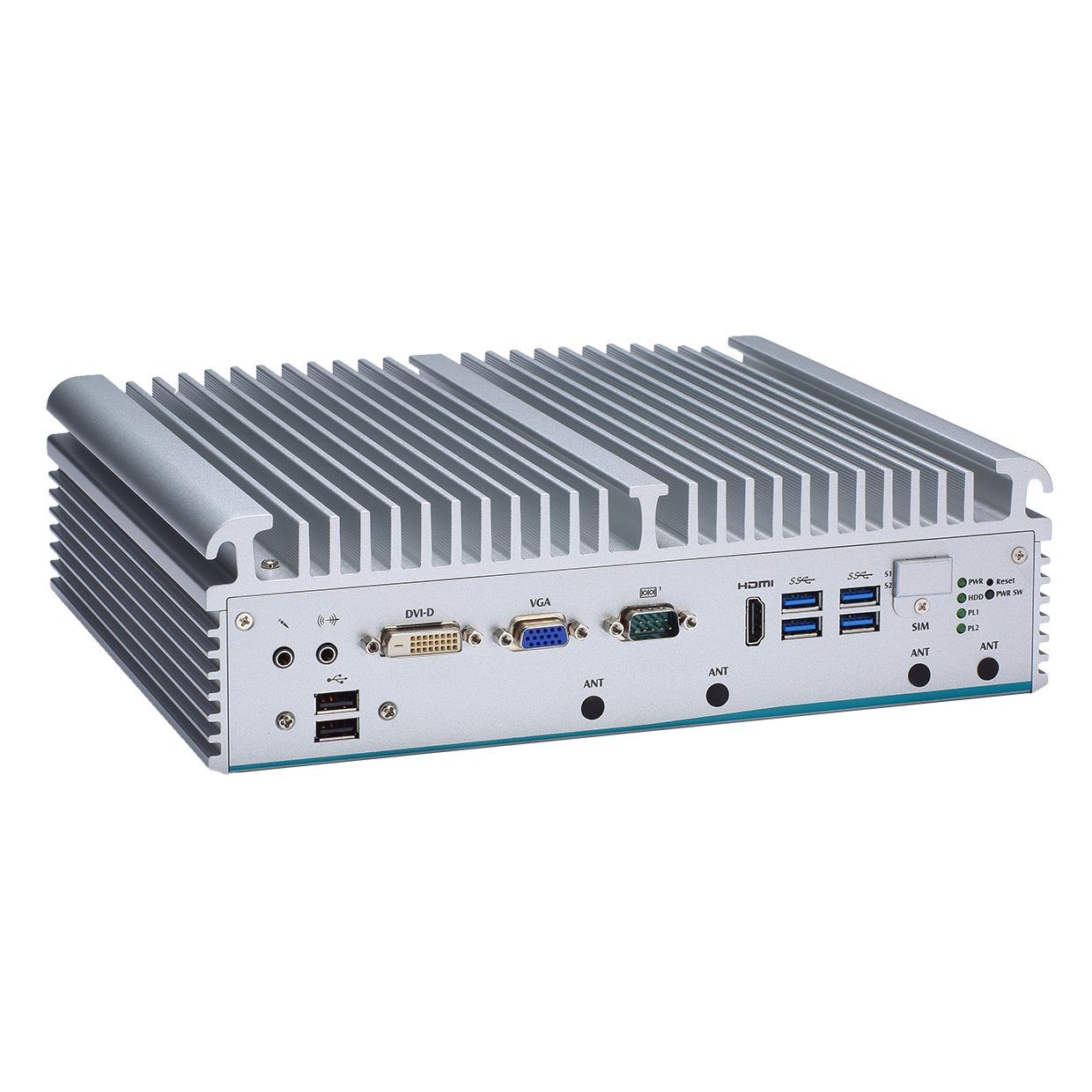

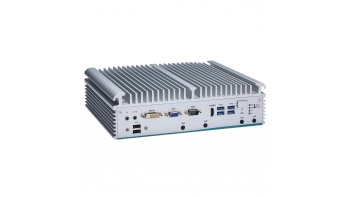

The Axiomtek eBOX671-517-FL supports 8-port Gigabit PoE and able to work under harsh temperatures. Its eight Gigabit PoE ports allow multiple cabling to cameras and any PoE power device; and, the eBOX671-517-FL is specifically designed for security surveillance, optical inspection, and edge computing applications. This rugged NVR embedded box PC is powered by the 7th/6th generation Intel® Core™ (Kaby Lake/Skylake) or Intel® Celeron® processors with a 35W/65W TDP and comes with Intel® Q170 chipset. The eBOX671-517-FL comes in great expansion possibilities, including a flexible I/O module slot with a wide selection of PCIe Mini modules and four PCI Express Mini Card slots. It also has two front-accessible SIM slots and four SMA-type antenna connectors. For storage, this high performance fanless embedded system has two SATA HDD drive bays with a height of up to 15 mm and one optional mSATA for RAID 0 and 1. Moreover, the embedded device supports two non-ECC 260-pin DDR4 SO-DIMM slots for up to 32GB of system memory.
Details
Availability and Pricing
Working Sample Schedule: 2019-06-30
Mass Production Schedule: 2019-06-30
Regional Coverage
Americas:
North America Region
Latin America Region
Asia, Pacific, and Japan:
Southeast Asia
Australia and New Zealand
Japan
Taiwan
Rest of Asia
Korea
South Asia
Europe, Middle East, and Africa:
Middle East, Turkey, and Africa
Central Eastern Europe
Western European Union Region
Commonwealth of Independent States
Northern European Union Region
Southern European Union Region
Central European Region
People's Republic of China:
People's Republic of China
Use Case
Smart City
Digital Security Surveillance : Entry Level Solutions (1 to 20 cameras)
Industry
Manufacturing : Industrial Automation
Others
Energy and Utilities
Technical Specifications
- Category:
- System: Industrial Computer
- Operating Systems:
-
Microsoft Windows Client*:Windows Embedded family*
- End Customer Type:
-
Enterprise
Other
Small and Medium sized Business
Included Intel Technology
Intel® Core™ Processors
7th Generation Intel® Core™ i3 Processors
7th Generation Intel® Core™ i5 Processors
6th Generation Intel® Core™ i7 Processors
6th Generation Intel® Core™ i3 Processors
7th Generation Intel® Core™ i7 Processors
6th Generation Intel® Core™ i5 Processors
