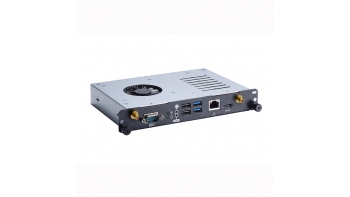

OPS500-520-H -- Open Pluggable Specification (OPS) 4K Digital Signage Player with 8th Generation Intel® Core™ & Celeron® Processor and TPM 2.0
About this offer
The Axiomtek OPS500-520-H is powered by the newest 8th generation Intel® Core™ i7/i5/i3 and Celeron® processors (code name: Coffee Lake S) with the Intel® H310 chipset. The smart cableless digital signage module has two DDR4-2400 SO-DIMMs for up to 32GB of system memory. Axiomtek's OPS500-520-H supports the LGA1151 socket-type processors offering greater flexibility for CPU selections, which is easily configured to meet various performance requirements. The OPS signage module is connected to OPS-compliant display via a standardized JAE TX-25A plug connector interface which supports DisplayPort, HDMI 2.0, USB 2.0, USB 3.1, audio and UART signals. It also has one M.2 Key E for Wi-Fi modules and one M.2 Key M supporting PCIe, SATA and SSD interfaces for storage. We believe that this new smart cableless open pluggable signage module with simplified installation, maintenance and upgrade can help you develop creative display solutions that increase your sales and improve your customers' experiences. With the enhanced multimedia performance, the Intel® Coffee Lake S-based OPS500-520-H is well suited for a wide range of digital signage applications in retail, transport, entertainment, education, and more. Intel® Open Pluggable Specification (OPS compliance) 8th gen Intel® Core™ i7/i5/i3 & Celeron® processor (formerly Coffee Lake-S) 2 DDR4-2400 SO-DIMM, up to 32GB 1 M.2 M Key for storage & 1 M.2 E Key for Wi-Fi solution USB 3.1 & TPM 2.0 supported
Details
Availability and Pricing
Mass Production Schedule: 2018-03-21
Working Sample Schedule: 2018-03-21
Regional Coverage
Americas:
North America Region
Latin America Region
Asia, Pacific, and Japan:
Southeast Asia
Australia and New Zealand
Japan
Taiwan
Rest of Asia
Korea
South Asia
Europe, Middle East, and Africa:
Middle East, Turkey, and Africa
Central Eastern Europe
Western European Union Region
Commonwealth of Independent States
Northern European Union Region
Southern European Union Region
Central European Region
People's Republic of China:
People's Republic of China
Use Case
Digital Signage
Interactive Whiteboard
Industry
Education
Technical Specifications
- Category:
- System: Digital Signage: Media Player
- Operating Systems:
-
Microsoft Windows Client*:Windows Embedded family*
- End Customer Type:
-
Enterprise
Other
Consumer
Small and Medium sized Business
Included Intel Technology
Intel® Core™ Processors
8th Generation Intel® Core™ i7 Processors
8th Generation Intel® Core™ i3 Processors
8th Generation Intel® Core™ i5 Processors
