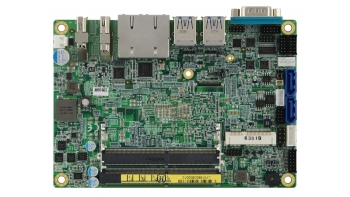

IB916 - 3.5” Single Board Computer with 7th Generation Intel® Core™ Processor
About this offer
The IB916 3.5-inch SBC is equipped with Intel® 7th Generationg Core™ Processors belonging to the ultra-low voltage family. There are currently four models available with processors from the Intel® Celeron® 3965U @2.2GHz to the Intel® Core™ i7-7600U (2.8GHz/3.9GHz), all offering impressive processing and graphics performance, 9V-24V wide power support and scalability.The IB916 single board computer is designed for a broad range of applications requiring unparalled compute and graphics performance at lower power consumption, such as those found in factory automation, kiosk, communications, gaming and digital signage environments. Combining fast time-to-market and long life support, the IB916 includes a rich set of standard features and I/Os including two DDR4 SO-DIMMs for up to 32GB of system memory, dual gigabit Ethernet, display interfaces with eDP, DisplayPort and HDMI, four serial ports, two SATA III, four USB 3.0, and two USB 2.0 ports. The board also comes with other options like heatsink, heat spreader and cable kit. Other important features include digital I/O, IBASE owned iSMART power-saving technology, TPM (2.0) and a Mini PCI-E slot.
Details
Availability and Pricing
Minimum Order Quantity (Unit): 1
Order Lead Time (Days): 90
Regional Coverage
Americas:
Latin America Region
North America Region
Asia, Pacific, and Japan:
Japan
Rest of Asia
People's Republic of China:
People's Republic of China
Use Case
Digital Signage
Industry
Arts and Entertainment : Amusement and Gambling
Manufacturing
Retail
Defense and Space
Health and Life Sciences
Technical Specifications
- Category:
- Component: Board: ESB 3.5
- Operating Systems:
-
Microsoft Windows Client*:Windows Embedded family*
Included Intel Technology
Intel® Celeron® Processor
Intel® Celeron® Processor 3000 Series
Intel® Core™ Processors
7th Generation Intel® Core™ i3 Processors
7th Generation Intel® Core™ i5 Processors
7th Generation Intel® Core™ i7 Processors
Data Center Technology
Resources
IBASE TECHNOLOGY INC.
Due to a technical difficulty, we were unable to submit the form. Please try again after a few minutes. We apologize for the inconvenience.
IBASE TECHNOLOGY INC.
The recaptcha has identified the current interaction similar to a bot, please reload the page or try again after some time.
IBASE Technology (TPEx: 8050) specializes in the design and manufacturing of robust industrial PC products, delivering high quality products and excellent service since its establishment in 2000. IBASE carries out manufacturing and quality control at its own facilities in Taiwan that are certified with ISO 9001, ISO 13485 and ISO 14001 standards. Current product offerings comprise of x86- and RISC-based industrial motherboards, embedded systems, panel PCs, digital signage players and network appliances for applications in the AIoT, automation, smart retail, transportation, networking and medical sectors. For more information, please visit www.ibase.com.tw .
