MPT-7000R - EN50155 Certified Multi-Purpose Rolling Stock System
About this offer

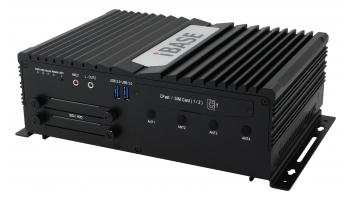

The EN50155 certified fanless MPT-7000R rolling stock system is powered by a 2.6GHz 6th Generation Intel® Core™ i7-6600U processors. Purposely built for various rolling stock applications such as train control and management, passenger information, entertainment and communications, and surveillance, the rugged MPT-7000R computing solution provides an optimal combination of high performance with low power consumption. It is equipped with ruggedized, lockable M12 connectors for firm I/O connections in the course of train travel and silently operates at temperatures from -20°C to +55°C. In addition, these platforms undergo numerous tests to follow EN50155 standards and protect them against shocks, vibration, humidity, temperature variations and excessive voltages.The MPT-7000R is available in two models, one for 24VDC input (MPT-7000R) and the other for 72/110VDC input (MPT-7000RHV). The M12 Gigabit Ethernet, two USB 2.0 and power input connectors are on the rear, as well as a PCI-E (x4) socket. For easy access and maintenance, the front panel comes with a CFAST socket, a 2.5” drive bay, two SIM sockets, two USB 3.0 and four antenna connections.
Details
Regional Coverage
Americas:
North America Region
Asia, Pacific, and Japan:
Japan
Rest of Asia
People's Republic of China:
People's Republic of China
Use Case
Others
Industry
Transportation and Warehouse : Rail Transportation
Automotive
Technical Specifications
- Category:
- System: Vehicle Computer
- Operating Systems:
-
Microsoft Windows Client*:Windows Embedded family*
Included Intel Technology
Intel® Core™ Processors
6th Generation Intel® Core™ i7 Processors
