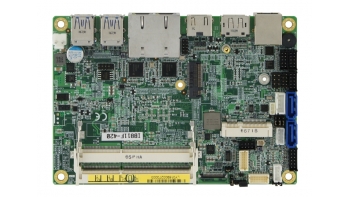

IB811 - Intel Atom x7/x5 / Pentium / Celeron Processor 3.5-inch Single Board Computer
About this offer
The IB811 3.5-inch single board computer features 9V-36V wide-voltage input that makes it suitable for rugged industrial and in-vehicle applications with varying voltage input requirements. The SBC supports four types of formerly Apollo Lake processors including Intel Atom x7-E3950, Intel Pentium N4200, and Intel Celeron N3350. The board has two memory sockets supporting up to 8GB of DDR3L-1866/1600 SO-DIMM modules.Aside from the 9V-36V wide voltage input, the IB811 also supports a wide-range operating temperature (-40°C to 85°C), offering significant improvement in processing and graphics performance than previous Intel architecture. Featuring the SoC integrated Gen9 graphics that allow hardware-based 4K playback, the IB811 enables three simultaneous displays with interfaces such as 1.4b HDMI, DP, and eDP/24-bit dual channel LVDS.The IB811 is the perfect platform for embedded applications requiring a small form factor to fit in space-limited environments. It has flexible I/O and expansion connectivity, including a full-size Mini PCIe slot and an M.2 (B-key) connector. Located at the rear edge I/O are 1x COM, 1x DisplayPort, 1x HDMI, 2x GbE, and 4x USB 3.0. The board also supports two USB 2.0 ports via pin headers and a total of four serial ports. IB811 complies with EuP/ErP standards and supports power failure detection. Dimensions are 102mm x 147mm.
Details
Regional Coverage
Americas:
North America Region
Asia, Pacific, and Japan:
Japan
Rest of Asia
People's Republic of China:
People's Republic of China
Use Case
Digital Signage
High Performance Computing
Industry
Automotive
Transportation and Warehouse
Defense and Space
Manufacturing
Health and Life Sciences
Arts and Entertainment : Amusement and Gambling
Retail
Communications : Publishing (except Internet)
Technical Specifications
- Category:
- Component: Board: ESB 3.5
- Operating Systems:
-
Microsoft Windows Client*:Windows Embedded family*
Included Intel Technology
Intel® Celeron® Processor
Intel® Celeron® Processor N Series
Intel® Pentium® Processor
Intel® Pentium® Processor N Series
Intel Atom® Processor
Resources
IBASE TECHNOLOGY INC.
Due to a technical difficulty, we were unable to submit the form. Please try again after a few minutes. We apologize for the inconvenience.
IBASE TECHNOLOGY INC.
The recaptcha has identified the current interaction similar to a bot, please reload the page or try again after some time.
IBASE Technology (TPEx: 8050) specializes in the design and manufacturing of robust industrial PC products, delivering high quality products and excellent service since its establishment in 2000. IBASE carries out manufacturing and quality control at its own facilities in Taiwan that are certified with ISO 9001, ISO 13485 and ISO 14001 standards. Current product offerings comprise of x86- and RISC-based industrial motherboards, embedded systems, panel PCs, digital signage players and network appliances for applications in the AIoT, automation, smart retail, transportation, networking and medical sectors. For more information, please visit www.ibase.com.tw .
