EN50155-Certified MPT-3000R Fanless Railway System Powered by Intel® Atom® Processor E3845
About this offer

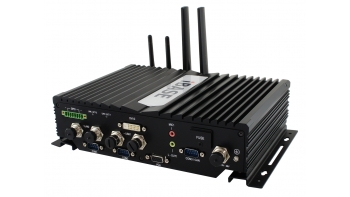

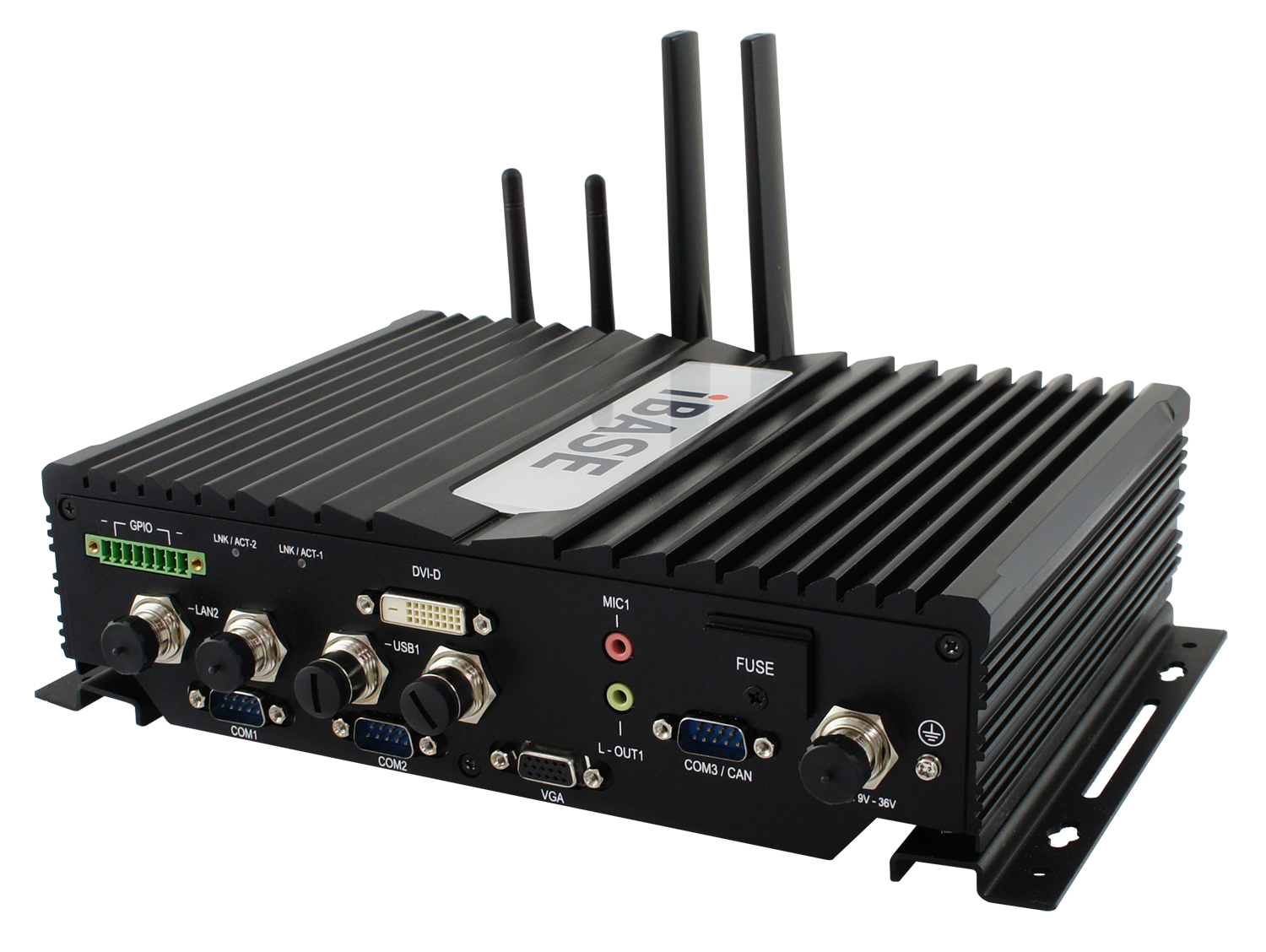

The 2016 COMPUTEX Best Choice awarded MPT-3000R is an EN50155-certified multiple-purpose IoT railway system designed for railway applications. Featuring an innovative cable-free power supply module design that allows module swapping to meet various regulatory requirements, the system has self-protection, self-debugging and reporting capabilities to actively or passively carry out the corresponding protective measures. Operating in temperatures from -40°C to 70°C, the unit has built-in G-sensor shock protection and uses M12 connectors as well as a wide-range voltage GPIO interface that supports dual SIM cards and dual WWAN communication modules to provide a recovery mechanism.Based on the MBT-3001 motherboard, MPT-3000R is powered by a 1.91GHz Intel® Atom® Processor E3845. Enclosed in a black aluminum chassis are two DDR3L-1333 SO-DIMM dual-channel sockets bundled with a total system memory of 4GB. The rear panel comes with connectors for DVI-D, VGA, three serial connections, two M12 GbE, two M12 USB 2.0, and a wide-range voltage GPIO interface.
Details
Regional Coverage
Americas:
North America Region
Asia, Pacific, and Japan:
Japan
Rest of Asia
People's Republic of China:
People's Republic of China
Use Case
Others
Industry
Transportation and Warehouse : Rail Transportation
Automotive
Technical Specifications
- Category:
- System: Vehicle Computer
- Operating Systems:
-
Microsoft Windows Client*:Windows Embedded family*
Included Intel Technology
Intel Atom® Processor
Intel Atom® Processor E Series
Resources
