MI808 - Mini-ITX Motherboard based on Intel Pentium / Celeron
About this offer

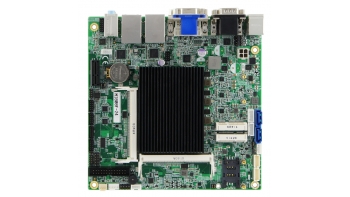

The MI808 Mini-ITX motherboard is powered by a 2.4GHz Intel® Pentium® N3700 or 2.08GHz Celeron® N3000 processor and is paired with two DDR3L SO-DIMM sockets that accept up to 8GB of memory. With a DC-power input design, it is scalable to adapt to various applications in transportation, mobile, POS and industrial automation markets.Measuring 170mm x 170mm, the MI808 provides expansion with one PCI-E(x1) and one Mini PCI-E slots. Display interfaces supported are DVI, VGA and 24-bit dual-channel LVDS. Network connectivity and I/Os come in the form of two Gigabit Ethernets, four COM, one LPC, two SATA III, four USB 3.0, two USB 2.0 and one mSATA for SSD devices. Other important features include digital I/O, iSMART power-saving technology, TPM (2.0) and a SIM card slot.The MI808 is currently available in four models that differ in the processor type and the DC-in value, which is 12V or 18V~24V.
Details
Availability and Pricing
Order Lead Time (Days): 90
Minimum Order Quantity (Unit): 1
Regional Coverage
Americas:
North America Region
Latin America Region
Asia, Pacific, and Japan:
Japan
Rest of Asia
People's Republic of China:
People's Republic of China
Use Case
Digital Signage
Industry
Manufacturing : Industrial Automation
Defense and Space
Automotive
Retail
Transportation and Warehouse
Technical Specifications
- Category:
- Component: Board: Mini-ITX
Included Intel Technology
Intel® Celeron® Processor
Intel® Celeron® Processor N Series
Intel® Pentium® Processor
