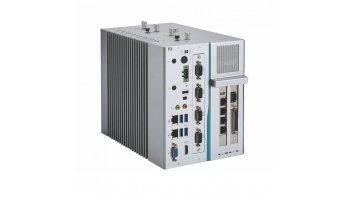

IPS960-511-PoE -- Vision System with LGA1151 Socket 7th/6th Gen Intel® Core™ i7/i5/i3 & Intel® Celeron®, Intel® H110 Chipset, 4 PoE, 4 USB 3.0, and Real-time Vision I/O
About this offer
the IPS960-511-PoE, its highly integrated vision controller optimized for machine vision applications. Featuring a multi-core CPU, IP40-rated rugged design, camera communication interfaces, real-time vision-specific I/O with microsecond-scale and LED lighting control, this machine vision controller provides an all-in-one solution that addresses the needs across various machine vision platforms and automatic inspection cases. Axiomtek’s IPS960-511-PoE is powered by the LGA1151 socket the 7th & 6th generation Intel® Core™ (codename: Kaby Lake/Skylake) and Intel® Celeron® processors (up to 65W) with the Intel® H110 chipset. The intelligent vision system comes with dual DDR4-2133/2400 un-buffered SO-DIMM sockets for up to 32GB of system memory as well as supports rich camera interfaces for connecting industrial cameras, including four IEEE802.3at PoE LAN ports and four USB 3.0 ports. Its vision I/O integrates a full range of isolated I/O interfaces and real-time controls essential to machine vision applications, including trigger input, LED lighting controller, camera trigger, as well as an encoder input for conveyor tracking. The IPS960-511-PoE also supports lighting dimming control to identify object characteristics for different inspection. Two easy-swappable 2.5" HDDs are available for extensive storage needs.
Details
Availability and Pricing
Working Sample Schedule: 2019-06-30
Mass Production Schedule: 2019-06-30
Regional Coverage
Americas:
North America Region
Latin America Region
Asia, Pacific, and Japan:
Southeast Asia
Australia and New Zealand
Japan
Taiwan
Rest of Asia
Korea
South Asia
Europe, Middle East, and Africa:
Middle East, Turkey, and Africa
Central Eastern Europe
Western European Union Region
Commonwealth of Independent States
Northern European Union Region
Southern European Union Region
Central European Region
People's Republic of China:
People's Republic of China
Use Case
Smart City
Digital Security Surveillance : Entry Level Solutions (1 to 20 cameras)
Smart Building
Industry
Manufacturing : Industrial Automation
Others
Technical Specifications
- Category:
- System: Industrial Computer
- Operating Systems:
-
Microsoft Windows Client*:Windows Embedded family*
- End Customer Type:
-
Enterprise
Other
Included Intel Technology
Intel® Core™ Processors
6th Generation Intel® Core™ i5 Processors
6th Generation Intel® Core™ i7 Processors
7th Generation Intel® Core™ i7 Processors
7th Generation Intel® Core™ i3 Processors
7th Generation Intel® Core™ i5 Processors
6th Generation Intel® Core™ i3 Processors
