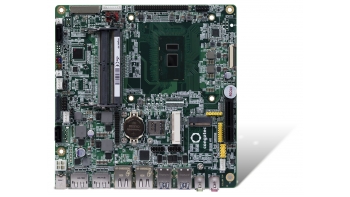

conga-IC175
About this offer
Ready for Intel® Optane™ memory technology FormfactorMini ITXCPUIntel® Core™ i5-7300U (2 x 2.6 / 3.5 GHz, 3MB Cache, 15W)Intel® Core™ i3-7100U (2 x 2.4 GHz, 3MB Cache, 15W)Intel® Celeron® 3965U (2 x 2.2 GHz, 2MB Cache, 15W)Intel® Core™ i7-7600U (2 x 2.8 / 3.9 GHz, 4MB Cache, 15W)DRAMSupport for 2x SO DIMM Socket (dual channel DDR4 up to 2133 MT/s), max. 2x 16GBChipsetIntegrated in SoCEthernetDual LAN Gbit / 100 Mbit / 10 Mbit; 1x Intel® Gigabit Ethernet PHY i219LM (with AMT support); 1x Intel ®Gigabit Ethernet Controller i211 (i210 optional)Internal Connectors1x PCIe x4 slot (gen3)1x Full/Half-size Mini PCIe slotM.2 key B 2242/3042 connector (2x PCIe lanes for Intel® Optane™ memory support)3x SATA (6G), one shared with M.21x SATA Power4x USB 2.01x LVDS (2x24 bit)1x Embedded DisplayPort (x4)1x Backlight (Power, control)1x Monitor OFF1x Surround1x Front Panel HD Audio1 x Digital MIC or S/PDIF1x Internal stereo speaker2x Serial Port COM2 (opt. as ccTALK)1x Feature connector - congatec custom (8 Bit General Purpose I/O)Connector for Integrated Sensor Hub1x Frontpanel (Power Switch, LEDs, Reset)1x Intrusion (Case Open),1x FAN CPU1x FAN System1x internal power header (12-24V)1x CEC1x microSIM card slot1x microSD card slot1x opt. battery header signal + power (SBM3)1x I²C BusExternal Connectors2x DisplayPort dp++Audio InLine Out2x LAN RJ454x USB 3.0/2.01x DC-In (external input) 12-24 Vcongatec Board ControllerMulti Stage Watchdog | non-volatile User Data Storage | Manufacturing and Board Information | Board Statistics | LVDS backlight control I²C bus (fast mode, 400 kHz, multi-master) | Power Loss Controlembedded BIOS FeaturesAMI Aptio UEFISM-BIOSBIOS UpdateLogo BootQuiet BootHDD PasswordSecurityThe conga-IC175 can be optionally equipped with a discrete ”Trusted Platform Module 2.0”t is capable of calculating efficient hash and RSA algorithms with key lengths up to 2048 bits and includes a real random number generator.Power ManagementPower Management | ACPI S3/S4 DeepSx | Wake on time from S5 | Power Supply 12-24 V | 2x fan (CPU / system) monitored & controlledOperating SystemsMicrosoft® Windows 10 (64bit only)Microsoft® Windows 10 IoT Enterprise (64bit only) LinuxPower ConsumptionSee User's Guide for full detailsTemperatureOperating: 0 to +60°C Storage: -20 to +70°CHumidityOperating: 10 - 90% r. H. non cond.Size170 x 170 mm (6.7” x 6.7”)
Details
Regional Coverage
Americas:
Latin America Region
North America Region
Asia, Pacific, and Japan:
Japan
Rest of Asia
People's Republic of China:
People's Republic of China
Use Case
Digital Signage
Industry
Retail
Communications
Health and Life Sciences
Arts and Entertainment : Amusement and Gambling
Technical Specifications
- Category:
- Component: Board: Mini-ITX
Included Intel Technology
Intel® Celeron® Processor
Intel® Celeron® Processor 3000 Series
Intel® Core™ Processors
7th Generation Intel® Core™ i7 Processors
7th Generation Intel® Core™ i5 Processors
7th Generation Intel® Core™ i3 Processors
Data Center Technology
