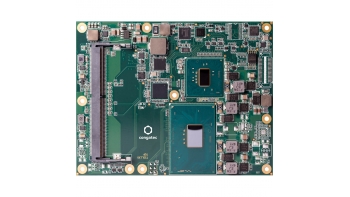

conga-TS175
About this offer
Ready for Intel® Optane™ memory technology FormfactorCOM Express BasicCPUIntel® Core™ i7-7820EQ (4 x 3.0 / 3.7 GHz, 8MB Cache, 45W)Intel® Core™ i5-7440EQ (4 x 2.9 / 3.6 GHz, 6MB Cache, 45W)Intel® Core™ i5-7442EQ (4 x 2.1 / 2.9 GHz, 6MB Cache, 25W)Intel® Core™ i3-7100E (2 x 2.9 GHz, 3MB Cache, 35W)Intel® Core™ i3-7102E (2 x 2.1 GHz, 3MB Cache, 25W)Intel® Xeon® E3-1505M V6 (4 x 3.0 / 4.0 GHz, 8MB Cache, 45W)Intel® Xeon® E3-1505L V6 (4 x 2.2 / 3.0 GHz, 8MB Cache, 25W)DRAM2 Sockets, SO-DIMM DDR4 up to 2400 MT/s and 32GByte dual channel, optionally with ECC supportChipsetMobile Intel® 100 Series ChipsetEthernetIntel® i219-LM GbE LAN Controller with AMT 11.6 supportI/O Interfaces8 x PCI Express GEN 3.0 lanesIntel® Optane™ memory can be connected via PCI Express Gen 3.04 x Serial ATA Gen 34 x USB 3.0 (XHCI)8 x USB 2.0 (XHCI)1 x PEG x16 Gen 3LPC busI²C bus (fast mode, 400 kHz, multi-master) 2 x UARTSoundDigital High Definition Audio Interface with support for multiple audio codecsGraphicsIntel® Gen9 HD Graphics Engine OpenCL 2.1, OpenGL 5.0 and DirectX12 (for Windows 10) support | up to three independent displays: HDMI 1.4a / DisplayPort 1.2 / eDP 1.3 | High performance hardware MPEG-2 decoding | WMV9 (VC-1) and H.265 (HEVC) support Blu-ray support @ 40 MBit/s | HEVC, VP9 and VDENC encodingcongatec Board ControllerMulti Stage Watchdog | non-volatile User Data Storage | Manufacturing and Board Information | Board Statistics | LVDS backlight control I²C bus (fast mode, 400 kHz, multi-master) | Power Loss Controlembedded BIOS FeaturesAMI AptioV® UEFI 2.x firmware8/16 MByte serial SPI firmware flashSecurityThe conga-TS175 can be optionally equipped with a discrete ”Trusted Platform Module” (TPM 1.2 / 2.0)Power ManagementACPI 4.0 with battery supportOperating SystemsMicrosoft® Windows 10 (64bit only)Microsoft® Windows 10 IoT Enterprise (64bit only) LinuxFedora 24UbuntuSuSeRed Hat EnterpriseYocto Project v2.2Chromium 2Wind River VxWorksPower ConsumptionSee User's Guide for full detailsTemperatureStandardOperating: 0 to +60°CStorage: -20 to +80°CHumidityOperating: 10 to 90% r. H. non cond. / Storage 5 to 95% r. H. non cond.Video Interfaces3x TMDS (HDMI) / DisplayPort 1.2 with support for Multi-Stream Transport (MST) | resolutions up to 4k | VGA (optional)Dual channel LVDS transmitter, Supports flat panels 2x24 Bit interface | VESA and openLDI colour mappings | resolutions up to 1920x1200 Automatic Panel Detection via EDID/EPISize95 x 125 mm (3.74" x 4.92")
Details
Regional Coverage
Americas:
North America Region
Latin America Region
Asia, Pacific, and Japan:
Japan
Rest of Asia
People's Republic of China:
People's Republic of China
Use Case
Digital Security Surveillance
Digital Signage
Industry
Communications
Health and Life Sciences
Retail
Technical Specifications
- Category:
- Component: Board: COM Express
Included Intel Technology
Intel® Xeon® Processors
Intel® Core™ Processors
7th Generation Intel® Core™ i3 Processors
7th Generation Intel® Core™ i7 Processors
7th Generation Intel® Core™ i5 Processors
CONGATEC AG
Due to a technical difficulty, we were unable to submit the form. Please try again after a few minutes. We apologize for the inconvenience.
CONGATEC AG
The recaptcha has identified the current interaction similar to a bot, please reload the page or try again after some time.
congatec AG offers a product portfolio that is comprised of embedded computer modules based on the most common form factors such as Qseven, COM Express and ETX/XTX. congatec also provides professional board support packages, extensive design-in support and specialized embedded BIOS features for industrial use.
