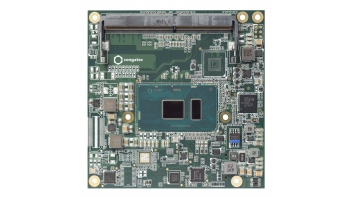

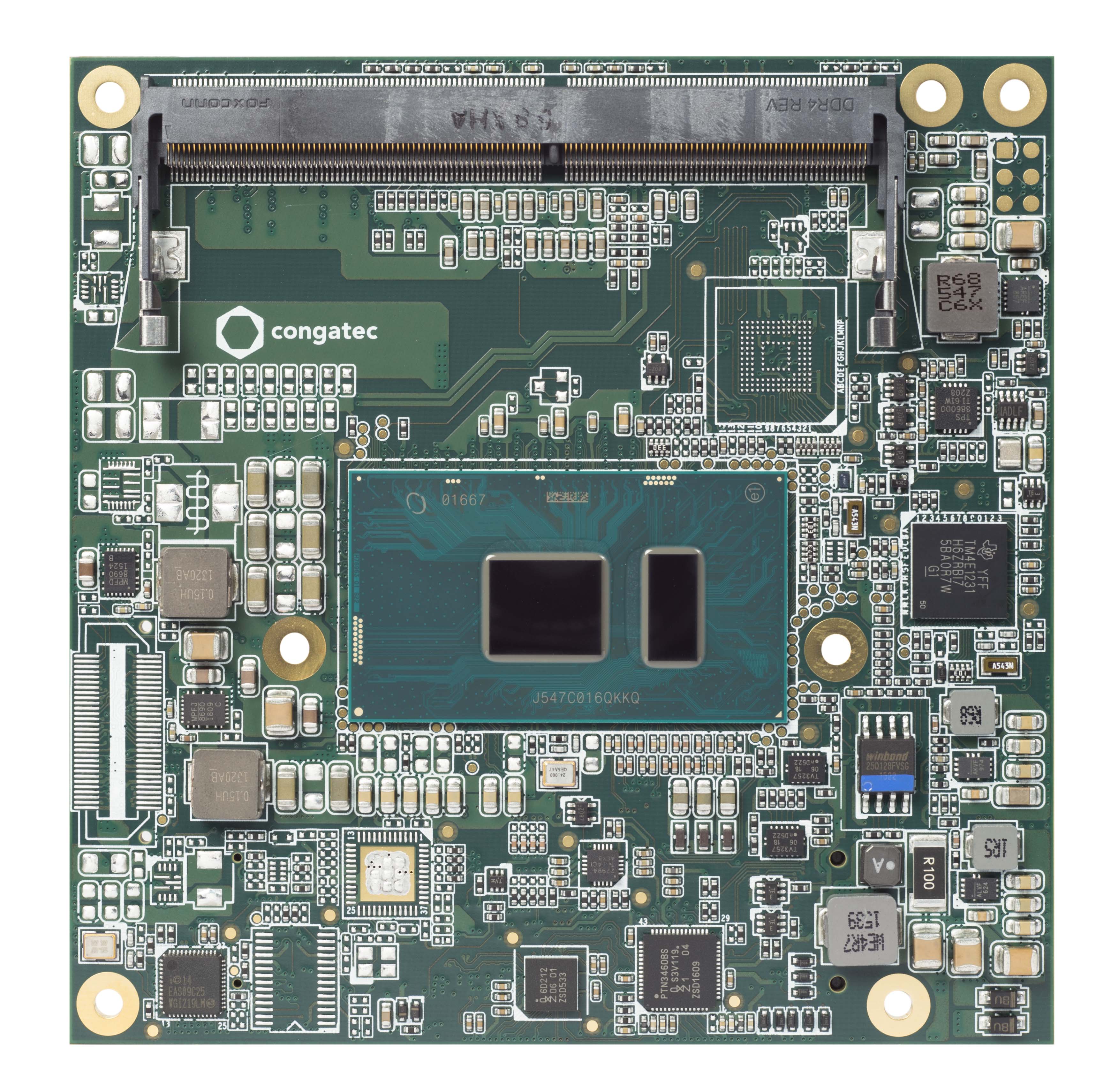

conga-TC175
About this offer
Ready for Intel® Optane™ memory technology FormfactorCOM Express CompactCPUIntel® Core™ i7-7600U (2 x 2.8 / 3.9 GHz, 4MB Cache, 15W)Intel® Core™ i5-7300U (2 x 2.6 / 3.5 GHz, 3MB Cache, 15W)Intel® Core™ i3-7100U (2 x 2.4 GHz, 3MB Cache, 15W)Intel® Celeron® 3965U (2 x 2.2 GHz, 2MB Cache, 15W)DRAM2 Sockets, SO-DIMM DDR4 up to 2133 MT/s and 32 GByte dual channelChipsetIntegrated PCH-LPEthernetIntel® i219-LM GbE LAN Controller with AMT 11.6 supportI/O Interfaces8 x PCI Express GEN 3.0 lanesIntel® Optane™ memory can be connected via PCI Express Gen 3.03 x Serial ATA® Gen 3 (can be configured as RAID)4 x USB 3.0 (XHCI)8 x USB 2.0 (XHCI)LPC bus (no DMA)I²C bus (fast mode, 400 kHz, multi-master) 2 x UARTSoundDigital High Definition Audio Interface with support for multiple audio codecsGraphicsIntel® Gen9 HD Graphics Engine OpenCL 2.1, OpenGL 5.0 and DirectX12 (for Windows 10) support | up to three independent displays: HDMI 1.4a / DisplayPort 1.2 / eDP 1.3 | High performance hardware MPEG-2 decoding | WMV9 (VC-1) and H.265 (HEVC) support Blu-ray support @ 40 MBit/s | HEVC, VP9 and VDENC encodingcongatec Board ControllerMulti Stage Watchdog | non-volatile User Data Storage | Manufacturing and Board Information | Board Statistics | LVDS backlight control I²C bus (fast mode, 400 kHz, multi-master) | Power Loss Controlembedded BIOS FeaturesAMI AptioV® UEFI 2.x firmware8/16 MByte serial SPI firmware flashSecurityThe conga-TC175 can be optionally equipped with a discrete ”Trusted Platform Module” (TPM 1.2 / 2.0). It is capable of calculating efficient hash and RSA algorithms with key lengths up to 2,048 bits and includes a real random number generator. Security sensitive applications such as gaming and e commerce will benefit also with improved authentication, integrity and confidence levels.Power ManagementACPI 4.0 with battery supportOperating SystemsMicrosoft® Windows 10 (64bit only)Fedora 24UbuntuSuSeRed Hat EnterpriseYocto Project v2.2Chromium 2Wind River VxWorksMicrosoft® Windows 10 IoT Enterprise (64bit only)Power ConsumptionSee User's Guide for full detailsTemperatureStandardOperating: 0 to +60°CStorage: -20 to +80°CHumidityOperating: 10 to 90% r. H. non cond. / Storage 5 to 95% r. H. non cond.Video Interfaces2x TMDS (HDMI) / DisplayPort 1.2 with support for Multi-Stream Transport (MST) | resolutions up to 4k | VGA (optional)Dual channel LVDS transmitter, Supports flat panels 2x24 Bit interface | VESA and openLDI colour mappings | resolutions up to 1920x1200 Automatic Panel Detection via EDID/EPISize95 x 95 mm (3,74" x 3,74")
Details
Availability and Pricing
Minimum Order Quantity (Unit): 20
Order Lead Time (Days): 30
Regional Coverage
Americas:
North America Region
Latin America Region
Asia, Pacific, and Japan:
Japan
Rest of Asia
People's Republic of China:
People's Republic of China
Use Case
Digital Security Surveillance
Digital Signage
Industry
Arts and Entertainment : Amusement and Gambling
Communications
Health and Life Sciences
Retail
Technical Specifications
- Category:
- Component: Board: COM Express
- Operating Systems:
-
Linux*:Wind River Linux family*
Linux*:Wind River Linux family*:VxWorks*
Included Intel Technology
Intel® Celeron® Processor
Intel® Celeron® Processor 3000 Series
Intel® Core™ Processors
7th Generation Intel® Core™ i5 Processors
7th Generation Intel® Core™ i7 Processors
7th Generation Intel® Core™ i3 Processors
Resources
CONGATEC AG
Due to a technical difficulty, we were unable to submit the form. Please try again after a few minutes. We apologize for the inconvenience.
CONGATEC AG
The recaptcha has identified the current interaction similar to a bot, please reload the page or try again after some time.
congatec AG offers a product portfolio that is comprised of embedded computer modules based on the most common form factors such as Qseven, COM Express and ETX/XTX. congatec also provides professional board support packages, extensive design-in support and specialized embedded BIOS features for industrial use.
