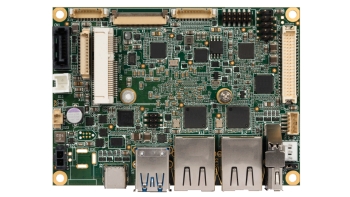

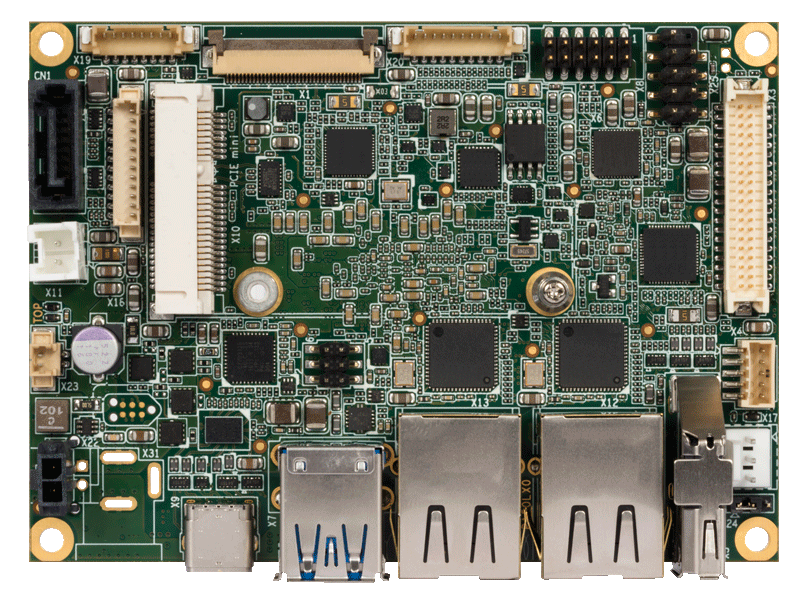

conga-PA5
About this offer
Formfactor Pico-ITX Singleboard Computer CPU Intel® Atom™ x7-E3950 2.00 GHz (Burst) | 1.6 GHz Clock Quad Core L2 cache 2MB 12W TDPIntel® Atom™ x5-E3940 1.80 GHz (Burst) | 1.6 GHz Clock Quad Core L2 cache 2MB 9W TDPIntel® Atom™ x5-E3930 1.80 GHz (Burst) | 1.3 GHz Clock Dual Core L2 cache 1MB 6.5W TDPIntel® Pentium® N4200 2.50 GHz (Burst) | 1.1 GHz Clock Quad Core L2 cache 2MB 6W TDPIntel® Celeron® N3350 2.40 GHz (Burst) | 1.1 GHz Clock Dual Core L2 cache 1MB 6W TDPDRAMMemory up to 4 Channels onboard LPDDR4 (V1.1) with up to 2400 MT/s | max. 8 GBChipsetIntegrated in SoCEthernet2x LAN Gbit / 100 Mbit / 10 Mbit | Intel Gigabit Ethernet i211 controller (i210 for industrial temperature)SoundHigh Definition Audio Interface | Cirrus Logic CS4207GraphicsIntel® Gen 9 HD Graphics with support for DirectX12 | OpenGL 4.3 | OpenCL 2.0 | OpenGLES 3.x | MPEG2 full HW acceleration with H.265/HEVC decoding and H.264 encoding | VP9 | PAVP 3.x | HDCP 1.4 | MVC and 2x independent display support in 4K (3840 x 2160 px) @30 Hz or WQXGA (2560 x 1600 px) @60 HzGraphic Interfaces1x 18/24-bit Single/Dual Channel LVDS Interface (via eDP to LVDS converter PTN3460) | 1x DisplayPort DP++ | resolution up 1920x1200 with 60Hz up to 4096x2160 @ 60Hz with eDPInternal Connectors 1x miniPCIe or mSATA full size | 1x SATA (6G) (with auxiliary +5V power connector for 2.5" HDD)2x USB 2.0 | 1x LVDS 2x24bit | 1x Backlight power connector | 1x Line Out | 1xMic In | 1x S/PDIF Out | 1x Power In (+12V) 2x COM (RS232 / RS-485 / RS422) | 1x Fan Connector | 3x Feature Connector | micro SD Card | MIPI-CSI 2.0External Connectors(Frontpanel)1x DisplayPort DP++ | 2x LAN RJ45 | 1x USB 3.0 Type C (with PD and DP++) | 2x USB 3.0 | 1x DC-In (only for commercial variants)congatec embedded ControllerMulti-Stage Watchdog | non-volatile User Data Storage | Manufacturing and Board Information | Board Statistics | BIOS Setup Data Backup I²C bus (fast mode | 400 kHz | multi-master) | Power Loss ControlEmbedded BIOSAMI Aptio® 2.X (UEFI) BIOS; SM-BIOS | BIOS Update | Logo Boot | Quiet Boot | HDD PasswordPower Specification Power Supply 12V | RTC batteryOperating SystemsMicrosoft® Windows 10 | Microsoft® Windows 10 IoT | Linux (Wind River, Yocto) | Android | Wind River VxWorksOperating Temperature:Operating: Commercial: 0 .. +60°C Storage: Commercial: -40 .. +70°CIndustrial: -40 + 85°C Industrial: -40 + 85°CHumidity Operating:Operating: 10 - 90% r. H. | Storage: 5 - 95% r.H.Size 100 x 72 mm (3.9” x 2,8”)
Details
Availability and Pricing
Minimum Order Quantity (Unit): 20
Order Lead Time (Days): 30
Regional Coverage
Americas:
Latin America Region
North America Region
Asia, Pacific, and Japan:
Japan
Rest of Asia
People's Republic of China:
People's Republic of China
Use Case
Digital Signage
Digital Security Surveillance
Industry
Communications
Retail
Technical Specifications
- Category:
- Component: Board: PicoITX
Included Intel Technology
Intel® Pentium® Processor
Intel® Pentium® Processor N Series
Intel® Celeron® Processor
Intel® Celeron® Processor N Series
CONGATEC AG
Due to a technical difficulty, we were unable to submit the form. Please try again after a few minutes. We apologize for the inconvenience.
CONGATEC AG
The recaptcha has identified the current interaction similar to a bot, please reload the page or try again after some time.
congatec AG offers a product portfolio that is comprised of embedded computer modules based on the most common form factors such as Qseven, COM Express and ETX/XTX. congatec also provides professional board support packages, extensive design-in support and specialized embedded BIOS features for industrial use.
