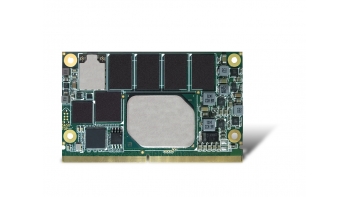

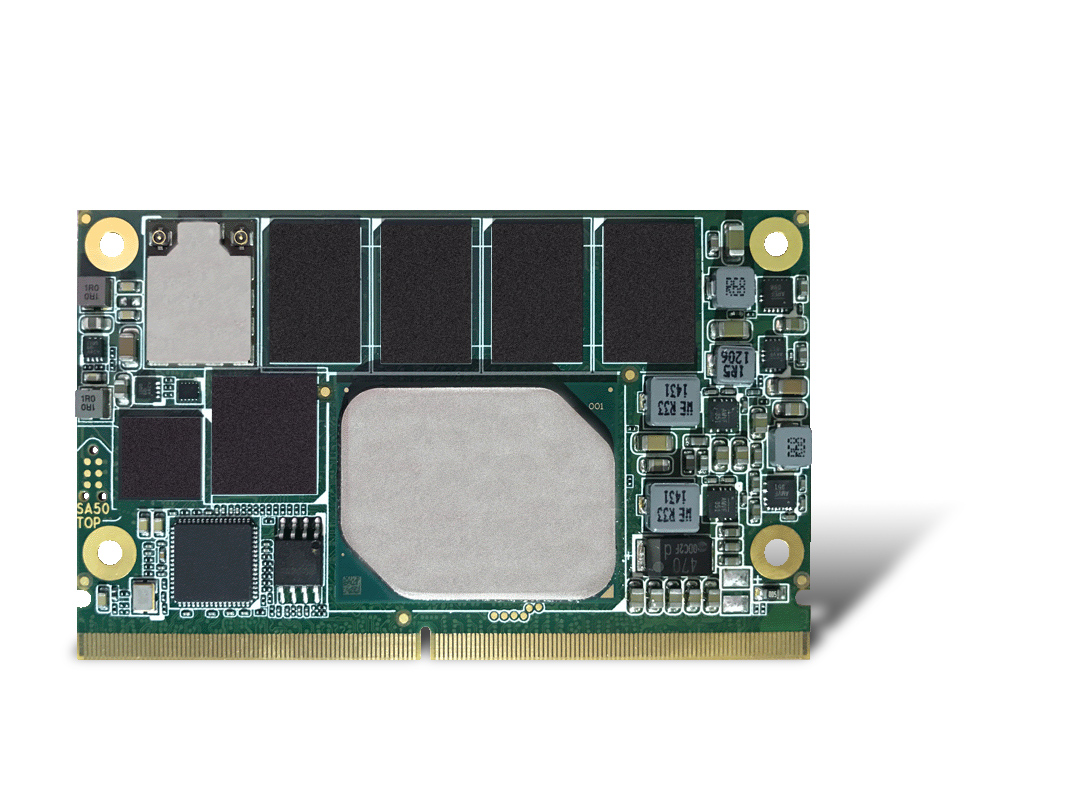

conga-SA5
About this offer
FormfactorSMARC Specification 2.0 | 82x50 mmCPUIntel® Atom™ x7-E3950 2.00 GHz (Burst) | 1.6 GHz Clock Quad Core L2 cache 2MB 12W TDPIntel® Atom™ x5-E3940 1.80 GHz (Burst) | 1.6 GHz Clock Quad Core L2 cache 2MB 9W TDPIntel® Atom™ x5-E3930 1.80 GHz (Burst) | 1.3 GHz Clock Dual Core L2 cache 1MB 6.5W TDPIntel® Pentium® N4200 2.50 GHz (Burst) | 1.1 GHz Clock Quad Core L2 cache 2MB 6W TDPIntel® Celeron® N3350 2.40 GHz (Burst) | 1.1 GHz Clock Dual Core L2 cache 1MB 6W TDPFeaturesDRAM: up to 8GB onboard LPDDR4 with 2400MT/sChipset: Integrated in SoCEthernet: up to 2x Intel® I210 (Industrial) /I211 (Commercial) Gigabit Ethernet Controller with SDP support | 2x Real Time TriggerI/O Interfaces: 2x USB3.0 | 4x USB2.0 | 1x SATA3 | 1x SDIO | up to 4x PCIe Gen2 | 2x I²C Bus | 2x SPI I 4x UART | optional M.2 1216 WiFi module (soldered down)Mass Storage: eMMC 5.0 onboard flash up to 64 GByteSound: Intel® High Definition Audio (Intel® HD Audio) Integrated Audio DSP with Intel® Smart Sound TechnologyGraphics: Intel® Gen 9 HD Graphics with support for DirectX 12 | OpenGL 4.3 | OpenCL 2.0 | OpenGL ES 3.0 | MPEG2 full HW acceleration with H.265/HEVC decoding and encoding | MVC and 2x independent display support in 4K | VP9 | PAVP 2.0 | HDCP 1.4 (wired), HDCP 2.0 (wireless)LVDS: Dual channel LVDS transmitter | support for flat panels with 2x24 bit data mapping up to a resolution of 1920x1200 @60Hz | shared with eDP or 2x MIPI-DSI x4 (option)DisplayPort Interface (DDI): DisplayPort 1.2 up to 4096x2160px or HDMI 1.4b up to 3840x2160pxMIPI-CSI: 1x MIPI-CSI x4 and 1x MIPI-CSI x2congatec Board controller: Multistage watchdog | non-volatile user data storage | manufacturing and board Information | board statistics I²C bus (fast mode | 400 kHz | multi master) | power loss controlEmbedded BIOS Features: AMI Aptio® UEFI 2.x firmware | 8 MByte serial SPI with congatec Embedded BIOS features OEM Logo | OEM CMOS Defaults | LCD Control Display Auto Detection | Backlight Control | Flash UpdatePower Management: ACPI 5 .0 compliant | Smart Battery ManagementOperating Systems: Microsoft® Windows 10 | Microsoft® Windows IoT Core | Linux | Android 6.0 | VxWorks 7.0Power Consumption: Typ. application: tbd. | see manual for full detailsTemperature:Commercial : Operating: 0 to +60°C Storage: -20 to +80°CIndustrial: Operating: -40 to +85°C Storage: -40 to +70°CHumidity: Operating: 10 to 90% r. H. non cond. Storage: 50 to 95% r. H. non cond.Size: 82 x 50 mm (3,23” x 1,97”)
Details
Availability and Pricing
Minimum Order Quantity (Unit): 50
Order Lead Time (Days): 30
Regional Coverage
Americas:
Latin America Region
North America Region
Asia, Pacific, and Japan:
Japan
Rest of Asia
People's Republic of China:
People's Republic of China
Use Case
Others
Industry
Communications
Retail
Technical Specifications
- Category:
- Component: Board: Other HW and Boards
- End Customer Type:
-
Small and Medium sized Business
Enterprise
Included Intel Technology
Intel® Celeron® Processor
Intel® Celeron® Processor N Series
Intel® Pentium® Processor
Intel® Pentium® Processor N Series
CONGATEC AG
Due to a technical difficulty, we were unable to submit the form. Please try again after a few minutes. We apologize for the inconvenience.
CONGATEC AG
The recaptcha has identified the current interaction similar to a bot, please reload the page or try again after some time.
congatec AG offers a product portfolio that is comprised of embedded computer modules based on the most common form factors such as Qseven, COM Express and ETX/XTX. congatec also provides professional board support packages, extensive design-in support and specialized embedded BIOS features for industrial use.
Conga-sa5
Your request for information has been successfully sent to CONGATEC AG
