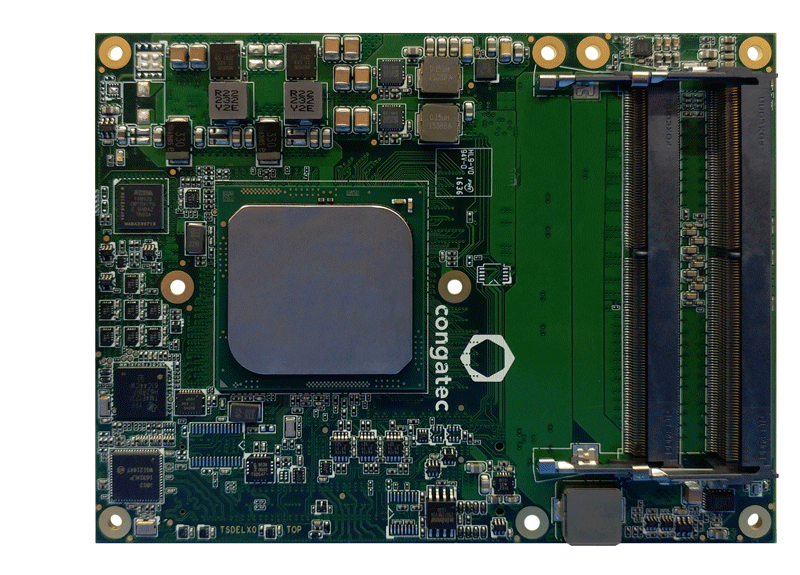

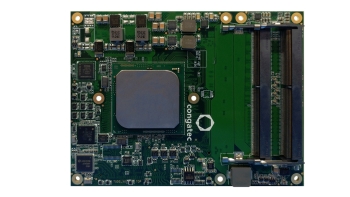

conga-B7XD

About this offer

FormfactorCOM Express BasicCPUIntel® Xeon® D1577 (16 x 1.3 / 2.1 GHz, 25MB cache, 45 W)Intel® Xeon® D1548 (8 x 2.0 / 2.6 GHz, 12MB cache, 45 W)Intel® Xeon® D1527 (4 x 2.2 / 2.7 GHz, 6MB cache, 35 W)Intel® Pentium™ D1509 (2 x 1.5 GHz, 3MB cache, 19 W)Intel® Pentium™ D1508 (2 x 2.2 / 2.6 GHz, 3MB cache, 25 W )Intel® Xeon® D1559 (12 x 1.5 / 2.1 GHz, 18MB cache, 45 W)Intel® Xeon® D1539 (8 x 1.6 / 2.2 GHz, 12MB cache, 35 W)Intel® Xeon® D1529 (4 x 1.3 GHz, 6MB cache, 20 W)Intel® Pentium™ D1519 (4 x 1.5 / 2.1 GHz, 6MB cache, 25 W)DRAMup to 3 SO-DIMM sockets for DDR4 memory modules up to 16 GByte each (48 GByte total) with 2400 MT/s | ECC and non-ECC supportedChipsetIntegrated in SoCEthernet1x Intel I210AT /IT Gigabit Ethernet Controller | 2x 10GbE with KR interface support - the 10GbE PHY must be implemented on the carrier boardI/O Interfaces24 x PCI Express GEN 3.0 lanes8 x PCI Express 2.04 x USB 2.02 x SATA IIILPC busSPII²C bus2 x UARTcongatec Board ControllerMulti Stage Watchdog | non-volatile User Data Storage | Manufacturing and Board Information | Board Statistics | LVDS backlight control I²C bus (fast mode, 400 kHz, multi-master) | Power Loss Controlembedded BIOS FeaturesOEM LogoOEM CMOS DefaultsFlash UpdateAMI Aptio UEFISecurityTrusted Platform Module (TPM) optional. Hash and RSA algorithms, key lengths up to 2,048 bits, real random number generatorPower ManagementACPI 5 .0 compliant, Smart Battery ManagementOperating SystemsMicrosoft® Windows 10 EnterpriseMicrosoft® Windows® 8.1Microsoft® Windows® 7Microsoft® Windows Server 2016Fedora 22Ubuntu 14.10CentOS 6.6 & 7.1FreeBSD 10.3 & 11VMwareMicrosoft® Windows Server 2012 R2Microsoft® Windows Server 2012Microsoft® Windows Server 2008 R2 SP1RHEL 6.6 & 7.1SuSE 11 SP4 & 12 SP1Yocto v.2.0 Kernel 4.1Wind River VxWorks 7ESXiTemperatureStandardOperating: 0 to +60°CStorage: -20 to +80°CHumidityOperating: 10 to 90% r. H. non cond. / Storage 5 to 95% r. H. non cond.Size95 x 125 mm (3.74" x 4.92")

Details

Availability and Pricing

Minimum Order Quantity (Unit): 10

Order Lead Time (Days): 30

Regional Coverage

Americas:
North America Region
Latin America Region

Asia, Pacific, and Japan:
Japan
Rest of Asia

People's Republic of China:
People's Republic of China

Use Case

Others

Industry

Communications

CONGATEC AG

Due to a technical difficulty, we were unable to submit the form. Please try again after a few minutes. We apologize for the inconvenience.

Clear

Your registration cannot proceed. The materials on this site are subject to U.S. and other applicable export control laws and are not accessible from all locations.

CONGATEC AG

The recaptcha has identified the current interaction similar to a bot, please reload the page or try again after some time.

CONGATEC AG

congatec AG offers a product portfolio that is comprised of embedded computer modules based on the most common form factors such as Qseven, COM Express and ETX/XTX. congatec also provides professional board support packages, extensive design-in support and specialized embedded BIOS features for industrial use.
