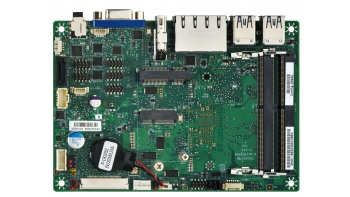

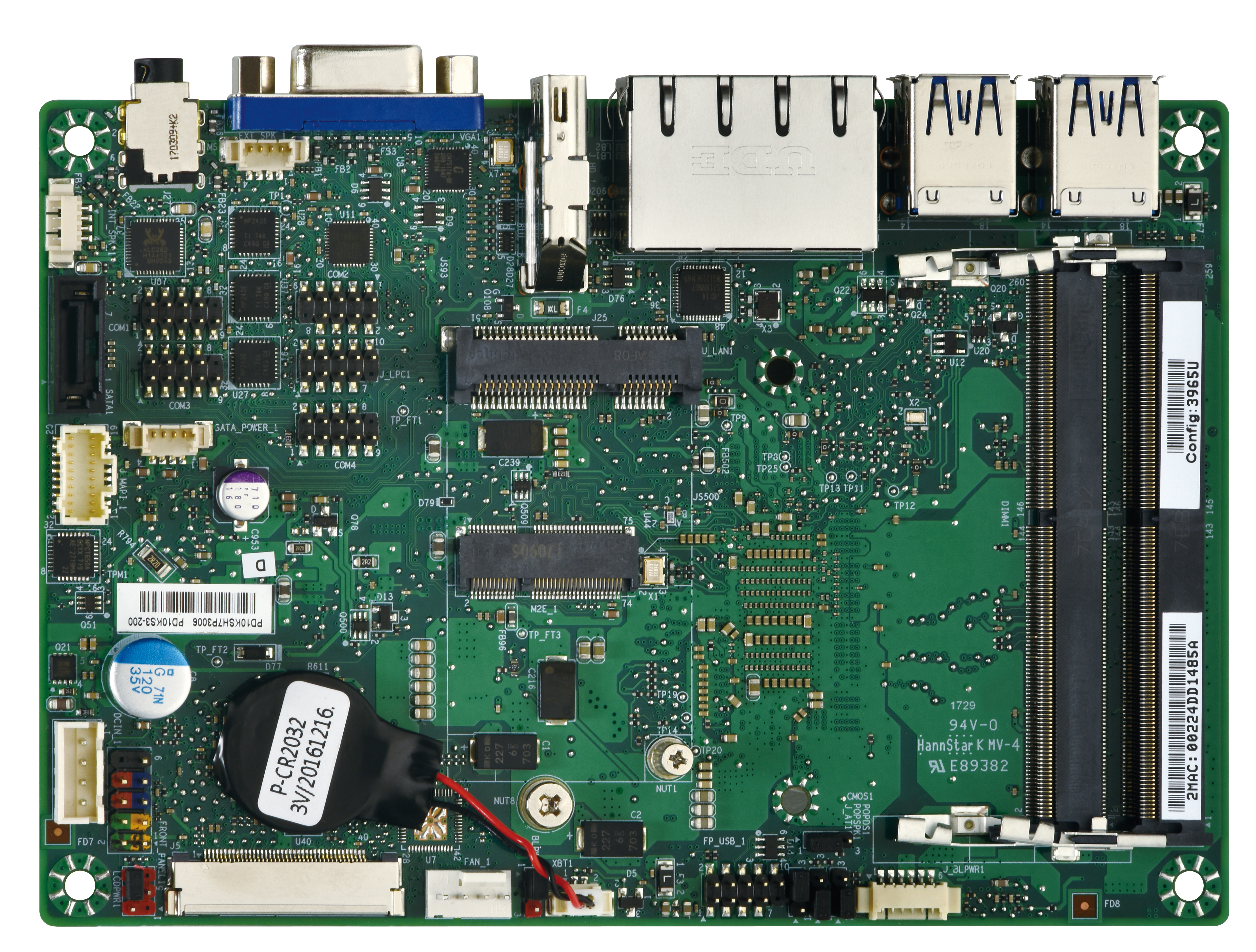

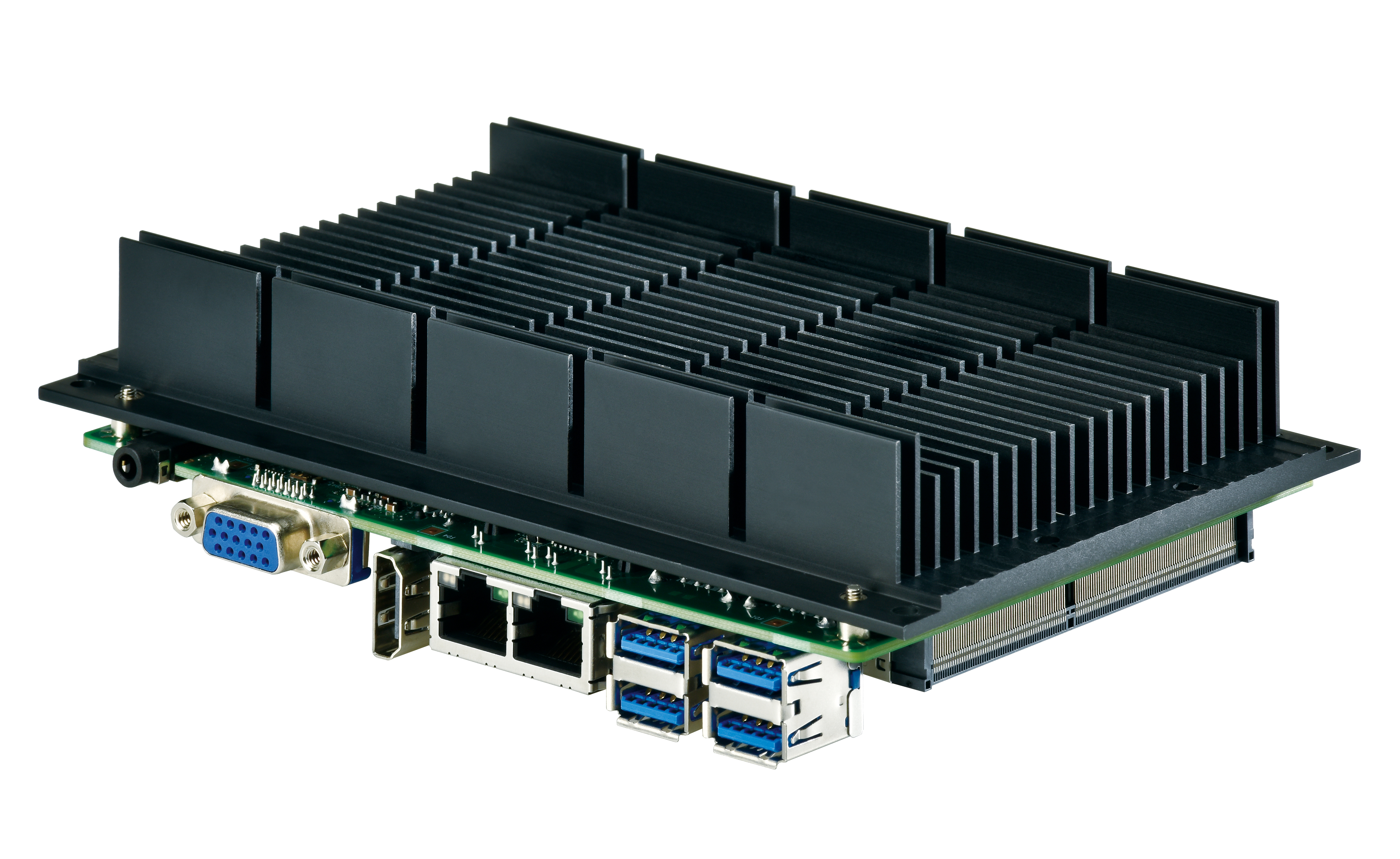

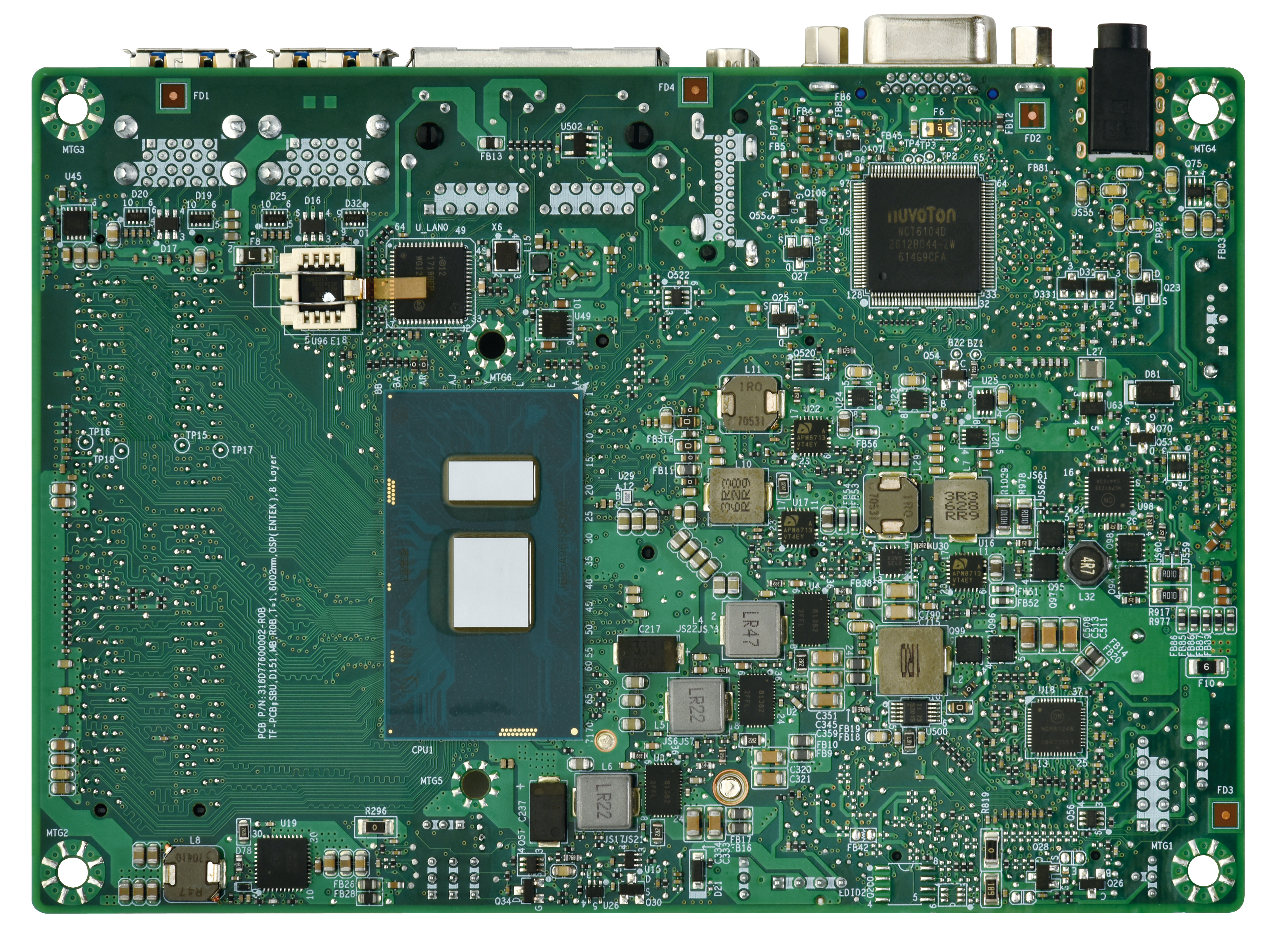

PD10KS
About this offer

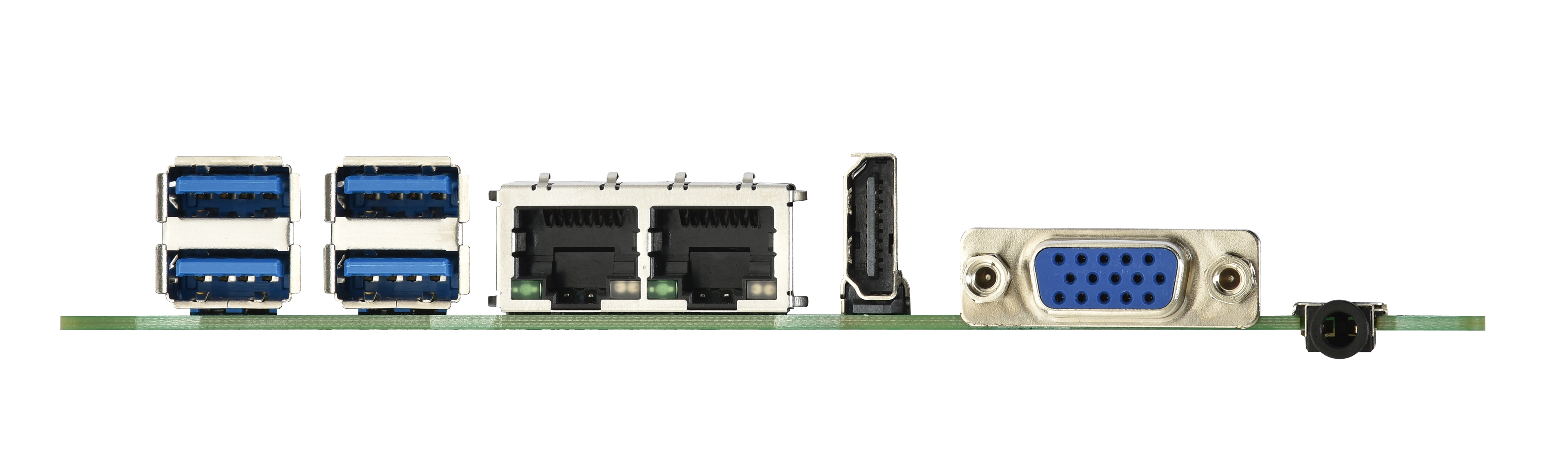

Intel® Core™ i3/i5/i7 Processor (formerly Sky Lake/ Kabylake ULV)Intel® HD graphics and DirectX 12 supportDual channel DDR4 with two connectors for MAX. 32GB memoryTriple independent display from HDMI, VGA, and eDP / LVDS connectivityFeatures high speed Dual Gigabit EthernetFeatures 1 SATA 6Gb/sFour SuperSpeed USB3.0 ports supportThree RS232 + One RS232/422/485 portsOne PCI Express Mini Card connector for expansionOne M.2 2232 (E key) for expansion8 V to 24 V wide-range voltage input
Details
Availability and Pricing
Mass Production Schedule: 2018-07-23
Working Sample Schedule: 2018-07-23
Regional Coverage
Americas:
North America Region
Latin America Region
Asia, Pacific, and Japan:
Japan
Rest of Asia
People's Republic of China:
People's Republic of China
Use Case
Digital Signage
Industry
Retail
Automotive
Health and Life Sciences
Transportation and Warehouse
Technical Specifications
- Category:
- Component: Board: ESB 3.5
Included Intel Technology
Intel® Core™ Processors
6th Generation Intel® Core™ i7 Processors
7th Generation Intel® Core™ i5 Processors
7th Generation Intel® Core™ i7 Processors
6th Generation Intel® Core™ i5 Processors
6th Generation Intel® Core™ i3 Processors
7th Generation Intel® Core™ i3 Processors
Intel® Celeron® Processor
Intel® Celeron® Processor 3000 Series
