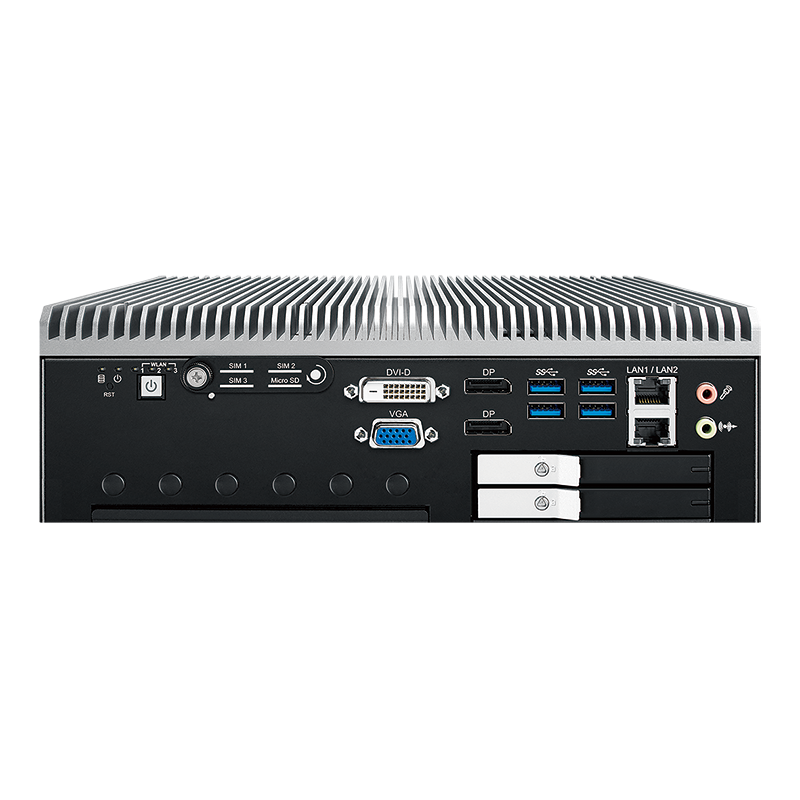

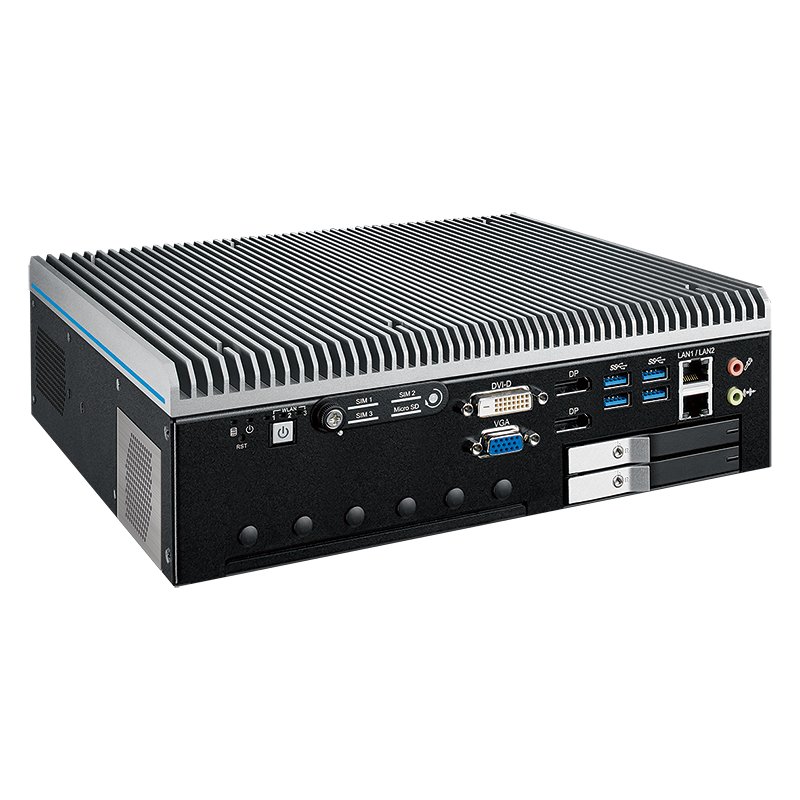

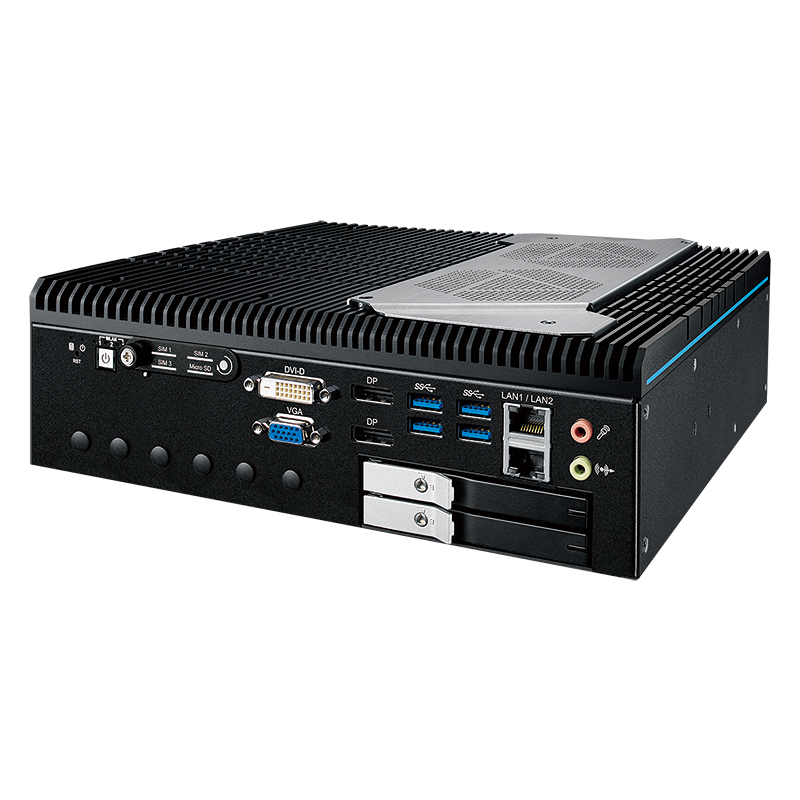

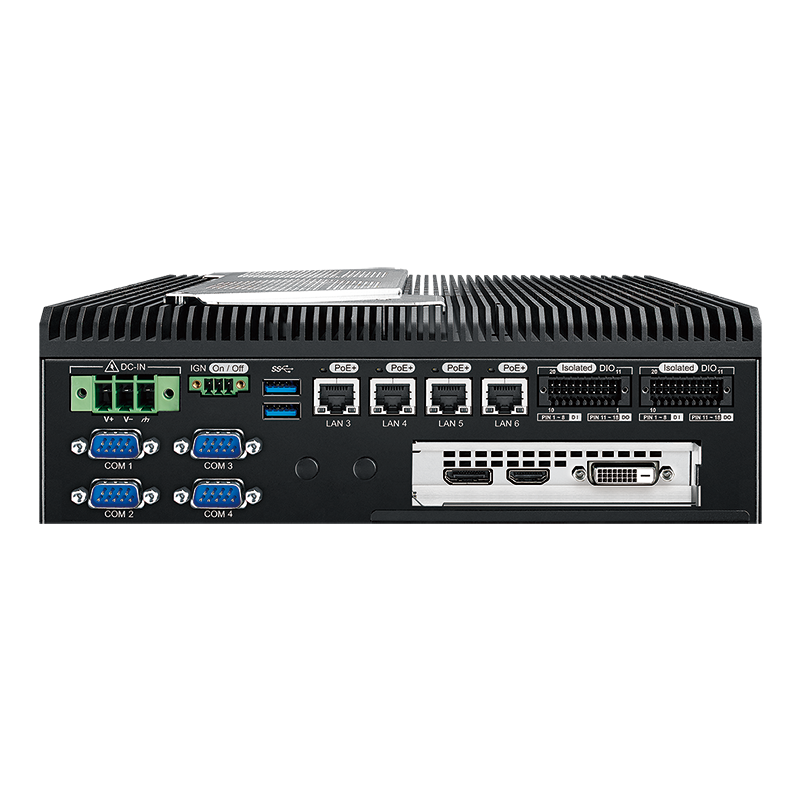

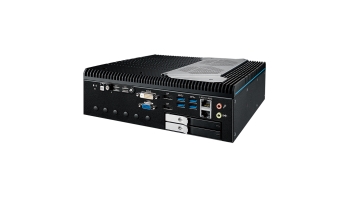

ECX-2200/2100 Series Workstation-grade 10th Gen Intel® Xeon®/Core™ i9/i7/i5/i3 Processor (Comet Lake) AI Computing System
About this offer
Workstation-grade Platform : 10-core 10th Gen Intel® Xeon®/Core™ i9/i7/i5/i3 Processor (CML-S) running with Intel® W480E chipset, supports max 95W TDP CPU12V to 50V wide range DC Power Input with 80V Surge Protection6 Independent GigE LAN with 4 IEEE 802.3at PoE+Expansion : 1 PCI/PCIe, 1 M.2 Key B, 1 M.2 Key E, 2 Mini PCIe, optional SUMIT A, BStorage : 2 2.5" SSD Tray, 1 Micro SD Card, 1 M.2 Key M, 2 SATA IIIMultiple VGA, DVI, HDMI and DisplayPort display interfaces support max 7 independent displays, up to 8K Resolution6-port USB 3.2 support up to 10Gbps data transfer32 Isolated DIO, 4 COM RS-232/422/4853 External Nano SIM Sockets for 5G/WiFi 6/4G/3G/LTE/GPRS/UMTSSupports Configurable Software Ignition Power Control and TPM 2.0Optimized user-friendly design for easier system maintenanceOptional VHub One-Stop AIoT Solution Service supports OpenVINO based AI accelerator and advanced Edge AI applications
Details
Availability and Pricing
Minimum Order Quantity (Unit): 1
Order Lead Time (Days): 28
Mass Production Schedule: 2020-11-02
Working Sample Schedule: 2020-10-20
Regional Coverage
Americas:
Latin America Region
North America Region
Asia, Pacific, and Japan:
Southeast Asia
Australia and New Zealand
Japan
Taiwan
Rest of Asia
Korea
South Asia
Europe, Middle East, and Africa:
Middle East, Turkey, and Africa
Central Eastern Europe
Western European Union Region
Commonwealth of Independent States
Northern European Union Region
Southern European Union Region
Central European Region
People's Republic of China:
People's Republic of China
Use Case
Advanced Analytics
Factory Automation
Artificial Intelligence : Anomaly Detection
Artificial Intelligence : Conversational Bots and Voice Agents
Artificial Intelligence : Deep Learning
Artificial Intelligence : Facial Detection/Recognition/Classification
Artificial Intelligence : Image/Object Detection/ Recognition/Classification
Artificial Intelligence : Machine Learning
Artificial Intelligence : Medical imaging, Analysis and Diagnostics
Artificial Intelligence : Predictive Maintenance and Analytics
Artificial Intelligence : Robotic Process Automation
Artificial Intelligence : Video Surveillance and Analytics
Intelligent Vending
Smart City
Collaboration
Environmental Monitoring
Cloud Computing : Private Cloud
Cloud Computing : Private Cloud and Software Defined Infrastructure
Smart Building
Digital Signage
Digital Security Surveillance : Entry Level Solutions (1 to 20 cameras)
High Performance Computing
Industry
Gaming : PC Gaming
Hospitality and Restaurants : Food and Drink Services
Health and Life Sciences : Medical Imaging
Agriculture
Software
Transportation and Warehouse : Air Transportation
Transportation and Warehouse : Fleet Management
Transportation and Warehouse : Rail Transportation
Transportation and Warehouse : Warehousing and Storage
Automotive : Autonomous Driving
Automotive : In Vehicle Infotainment
Manufacturing : Automotive
Arts and Entertainment : Amusement and Gambling
Manufacturing : Automotive
Manufacturing : Industrial Automation
Manufacturing : Transportation Equipment
Technical Specifications
- Category:
- System: Industrial Computer
- Operating Systems:
-
Linux*:Red Hat Linux family*
Linux*:Red Hat Linux family*:Red Hat Linux*
Linux*:Ubuntu family*
Linux*:Ubuntu family*:Ubuntu*
Linux*:Wind River Linux family*
Linux*:Wind River Linux family*:Wind River Linux*
Microsoft Windows Client*:Other PC family
Microsoft Windows Client*:Other PC family:VMware*
Microsoft Windows Client*:Windows Embedded family*
- End Customer Type:
-
Enterprise
Other
Small and Medium sized Business
- ToolKit:
-
Intel® Distribution of OpenVINO™ toolkit
Intel® IPC Catalyst
Included Intel Technology
Intel® Core™ Processors
10th Generation Intel® Core™ i5 Processors
10th Generation Intel® Core™ i3 Processors
10th Generation Intel® Core™ i9 Processors
10th Generation Intel® Core™ i7 Processors
Intel® Xeon® Processors
Intel® Xeon® W Processor
Intel vPro® Platform Technology
Edge Software Hub (or Intel® Edge Software Hub)
