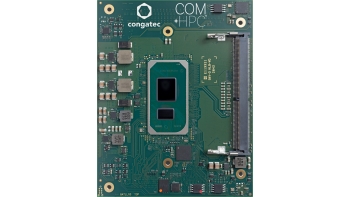

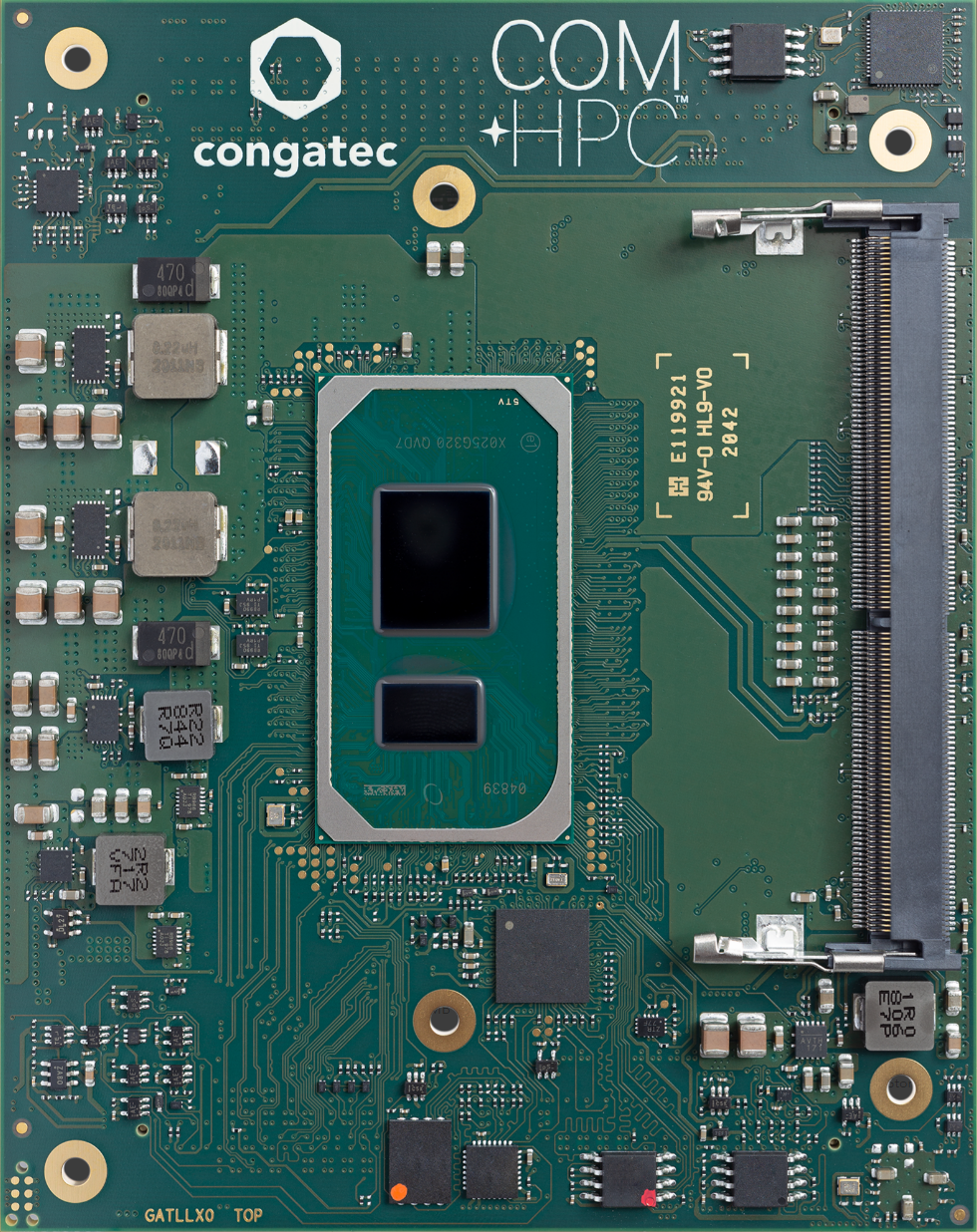

conga-HPC/cTLU
About this offer
COM HPC Client Size A module based on Intel® (formerly "Tiger Lake")-UP3 high performing and low power Intel® Core™ processor series Form factor COM HPC, Size A (95 x 120 mm), Client Connector Pinout DRAM Up to 2 SO-DIMM sockets for DDR4 memory modules up to 32 GByte each (64 GByte total) with 3200 MT/sECC and non-ECC supported Graphics Integrated Xe (Gen 12) graphics engine with up to 96 EU (Execution Units) | Supporting 4 independent display units (4x 4k/2x 8K) | Enhanced media (AV1/12b) with up to 2 Vdbox | Next Gen IPU6 with DPHY2.1 | HDMI 2.0/2.1 | DP 1.4Display3x DP/HDMI/DP++ | 1x eDPEthernet2x 2,5 GbE TSN Ethernet via Intel® i225I/O Interfaces4x PCIe Gen4 | 8x PCIe Gen32x USB 4.0 | 2x USB 3.22x SATA III (6Gb/s) | SPI | 2x UART | 12x GPIO | 2x MIPI-CSIAudio1x I2S | 2x Sound wirecongatec Board Controller Multi Stage Watchdog | non-volatile User Data Storage | Manufacturing and Board Information | Board StatisticsI²C bus (fast mode, 400 kHz, multi-master) | Power Loss Control | Hardware Health Monitoring | POST Code redirection Embedded BIOS Features OEM Customization | Flash Update | based on AMI Aptio UEFI SecurityTrusted Platform Module (TPM 2.0)Power Management ACPI 5.0 with battery supportSize95 x 120 mm
Details
Availability and Pricing
Minimum Order Quantity (Unit): 5
Order Lead Time (Days): 30
Regional Coverage
Americas:
Latin America Region
North America Region
Asia, Pacific, and Japan:
Southeast Asia
Australia and New Zealand
Japan
Taiwan
Rest of Asia
Korea
South Asia
Europe, Middle East, and Africa:
Middle East, Turkey, and Africa
Central Eastern Europe
Western European Union Region
Commonwealth of Independent States
Northern European Union Region
Southern European Union Region
Central European Region
People's Republic of China:
People's Republic of China
Use Case
Video Management
Others
Cloud Computing
Artificial Intelligence
Energy Monitoring
High Performance Computing
Industry
Others
Energy and Utilities
Health and Life Sciences
Communications
Retail
Technical Specifications
- Category:
- Component: Board: COM Express
- End Customer Type:
-
Enterprise
Other
Small and Medium sized Business
Included Intel Technology
Intel® Core™ Processors
11th Generation Intel® Core™ i3 Processors
11th Generation Intel® Core™ i5 Processors
11th Generation Intel® Core™ i7 Processors
