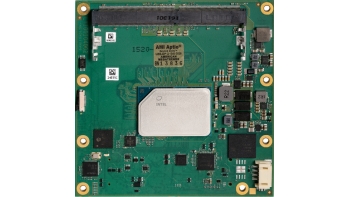

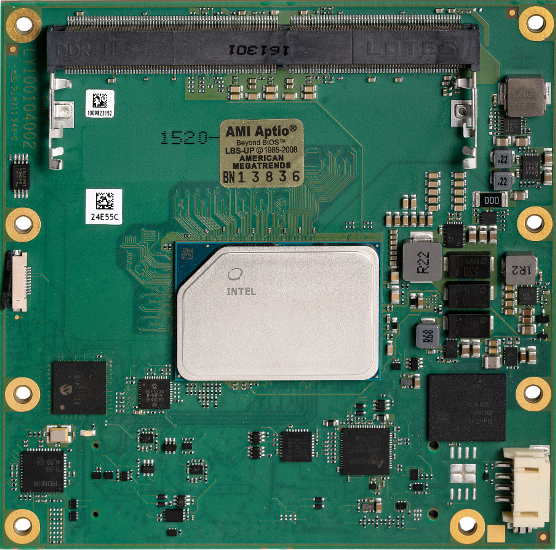

COM Express C6C-EL
About this offer
The MSC C6C-EL module is based on Intel‘s multi-core system-on-chip (SOC) Atom generation (codenamed "Elkhart Lake"). Built on 10nm process technology the SoC integrates the next generation Intel Atom® processor core architecture and graphics accelerators, memory controller and rich I/O functionality into a single package. The module is designed for extended temperature range and 24/7 operation making it an ideal platform for mission critical tasks that require a reliable and performant compute base. It provides significant performance gains over previous Atom generations allowing for technology upgrades within existing power and cooling requirements defined by the system design. Typical applications are industrial IoT, mobile medical equipment, on-board units, way-side controllers and outdoor POS terminals. The MSC C6C-EL can drive up to three independent displays with a maximum of 4k resolution. The COMExpress Type 6 interface allows direct access to digital display interfaces including DisplayPort, HDMI and the choice of LVDS versus eDP. With a maximum capacity of 32GB fast DDR4 memory the board satisfies even demanding applications. Optional in-band ECC capabilities allow for protecting code and data kept in memory. High speed IO includes up to eight PCIe Gen 3 lanes and two USB 3.1 interfaces. Mass storage can be supported with the optional on-board eMMC memory and via two SATA channels.
Details
Availability and Pricing
Minimum Order Quantity (Unit): 60
Order Lead Time (Days): 84
Regional Coverage
Americas:
Latin America Region
North America Region
Asia, Pacific, and Japan:
Southeast Asia
Australia and New Zealand
Japan
Taiwan
Rest of Asia
Korea
South Asia
Europe, Middle East, and Africa:
Middle East, Turkey, and Africa
Central Eastern Europe
Western European Union Region
Commonwealth of Independent States
Northern European Union Region
Southern European Union Region
Central European Region
People's Republic of China:
People's Republic of China
Use Case
Inventory Management
Digital Signage
Smart Building
Telematics
Intelligent Vending
Factory Automation
Industry
Energy and Utilities : Oil and Gas
Energy and Utilities : Electric Power
Manufacturing : Industrial Automation
Manufacturing : Automotive
Manufacturing : Transportation Equipment
Transportation and Warehouse : Air Transportation
Transportation and Warehouse : Fleet Management
Transportation and Warehouse : Rail Transportation
Transportation and Warehouse : Warehousing and Storage
Agriculture
Arts and Entertainment : Amusement and Gambling
Retail
Health and Life Sciences : Medical Devices
Health and Life Sciences : Patient Infotainment
Technical Specifications
- Category:
- Component: Board: COM Express
- Operating Systems:
-
Microsoft Windows Client*:Windows Embedded family*
- End Customer Type:
-
Enterprise
Other
Small and Medium sized Business
Included Intel Technology
Intel® Celeron® Processor
Intel® Celeron® Processor J Series
Intel® Celeron® Processor N Series
Intel Atom® Processor
Intel Atom® Processor X Series
Intel® Pentium® Processor
Intel® Pentium® Processor N Series
Intel® Pentium® Processor J Series
Data Center Technology
