SI-642-N - Fanless 4K Signage Player with one HDMI & DP
About this offer

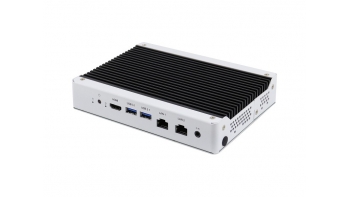

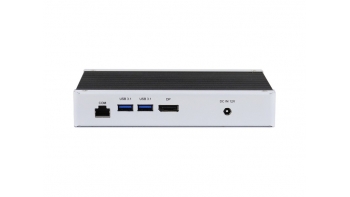

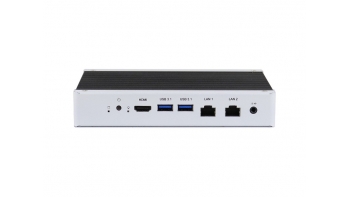

The SI-642-N is a 4K digital signage player that leverages the 8th Gen Intel® Core™ U-series processors. The platform can be installed in restaurant as a menu board player or used in commercial establishments to increase brand awareness and customer engagement or deployed in transportation networks to provide real-time information and advertising relevant to the traveler. The fanless SI-642-N offers high performance and high reliability for 24/7 operation in an industrial grade design. It is integrated with the IBASE iSMART and Observer technologies for remote monitoring, power on/off scheduling, power recovery and low temperature boot functions. With the Intel HD Graphics 620, the system can simultaneously support two independent displays (1x HDMI 2.0 & 1x Active DisplayPort 1.2) with 4K (4096 x 2160) @60Hz resolution as well as two independent audio outputs. The SI-642-N houses the MBD642 motherboard populated with dual Gigabit LAN, 4x USB 3.1, dual channel DDR4 with up to 32GB support and expansion slots including M.2 3042 B-key for 4G/LTE, M.2 2280 M-key for storage and M.2 2240 E-key to install optional capture cards. It also has the Intel vPro and TPM 2.0 features to deliver increased productivity, remote manageability and data security. The SI-642-N is currently available in four models that differ in the processor type and operates on both Windows 10 and Linux Ubuntu operating systems.
Details
Availability and Pricing
Mass Production Schedule: 2020-07-31
Working Sample Schedule: 2020-08-31
Regional Coverage
Americas:
Latin America Region
North America Region
Asia, Pacific, and Japan:
Southeast Asia
Australia and New Zealand
Japan
Taiwan
Rest of Asia
Korea
South Asia
Europe, Middle East, and Africa:
Middle East, Turkey, and Africa
Central Eastern Europe
Western European Union Region
Commonwealth of Independent States
Northern European Union Region
Southern European Union Region
Central European Region
People's Republic of China:
People's Republic of China
Use Case
Digital Signage
Industry
Retail
Technical Specifications
- Category:
- System: Digital Signage: Media Player
- Operating Systems:
-
Linux*:Ubuntu family*
Linux*:Ubuntu family*:Ubuntu*
Microsoft Windows Client*:Windows Embedded family*
- End Customer Type:
-
Enterprise
Consumer
Small and Medium sized Business
Included Intel Technology
Intel® Celeron® Processor
Intel® Celeron® Processor 4000 Series
Intel® Core™ Processors
8th Generation Intel® Core™ i5 Processors
8th Generation Intel® Core™ i7 Processors
8th Generation Intel® Core™ i3 Processors
Intel vPro® Platform Technology
