COM-HPC HCC-CFLS
About this offer

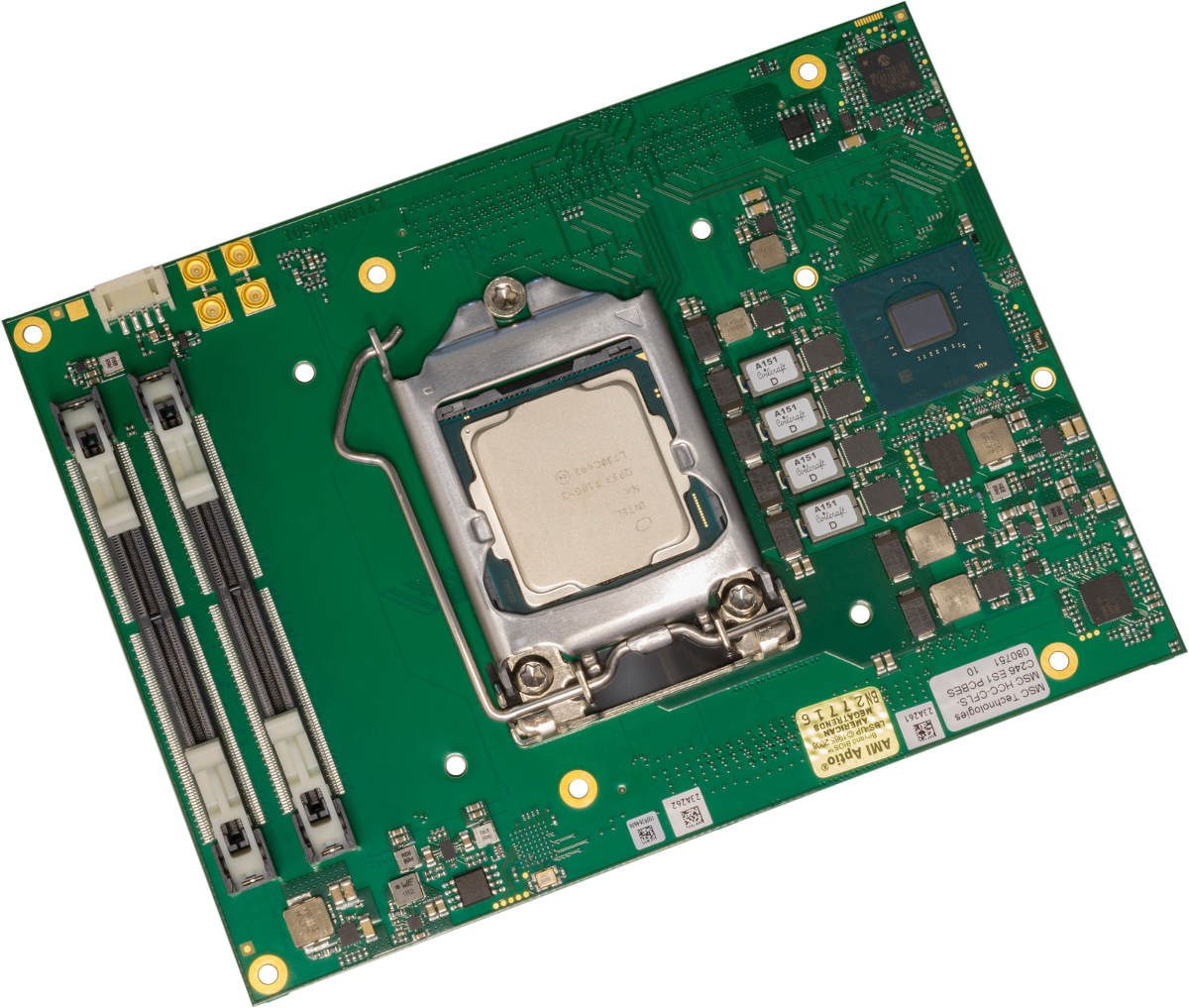

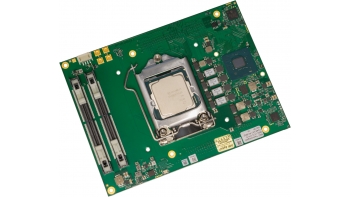

The MSC HCC-CFLS module is the first member of the new COM-HPC product family. It enables a PICMG COM-HPC Client interface and features size C module format. The Client interface offers a wide range of I/O, including multiple graphics interfaces, 1G and 10GBASE-T Ethernet as well as PCIe and USB data paths. Designed for the 9th Generation Intel® Core™ S-Series Processor family, the module comes with the greatest scalability, from cost efficient Pentium up to most performant Core i7 processor. Depending on selected processor variant up to eight cores can be utilized by most demanding applications. A total of 64GB of main memory provides extended and reliable space for data intensive tasks. The graphics units on the MSC HCC-CFLS provide highest level graphics acceleration and hardware based video en-/decoding. They connect to three DDI interfaces and one eDP display port allowing for a maximum of three independent displays at up to 4k x 2k resolution. The 16 lane width PEG port based on PCIe Gen 3 gives system designers the possibility to integrate external graphics and AI accelerators into their application. Further I/O include additional PCIe lanes, USB 3 Gen1 and 2, SATA, 1G and 10GBASE-T Ethernet and GPIOs. For lab evaluation, rapid prototyping and application development Avnet Embedded offers the MSC HC-MB-EV, a COM-HPC Client carrier.
Details
Availability and Pricing
Minimum Order Quantity (Unit): 60
Order Lead Time (Days): 84
Mass Production Schedule: 2021-08-31
Working Sample Schedule: 2020-07-01
Regional Coverage
Americas:
Latin America Region
North America Region
Asia, Pacific, and Japan:
Southeast Asia
Australia and New Zealand
Japan
Taiwan
Rest of Asia
Korea
South Asia
Europe, Middle East, and Africa:
Middle East, Turkey, and Africa
Central Eastern Europe
Western European Union Region
Commonwealth of Independent States
Northern European Union Region
Southern European Union Region
Central European Region
People's Republic of China:
People's Republic of China
Use Case
Digital Signage
High Performance Computing
Smart City
Print Imaging and Office Automation
Artificial Intelligence : Machine Learning
Artificial Intelligence : Data preparation and management
Artificial Intelligence : Image/Object Detection/ Recognition/Classification
Artificial Intelligence : Medical imaging, Analysis and Diagnostics
Artificial Intelligence : Predictive Maintenance and Analytics
Artificial Intelligence : Video Surveillance and Analytics
Smart Building
Video Management
Factory Automation
Digital Security Surveillance
Industry
Retail
Gaming
Government
Health and Life Sciences : Medical Devices
Health and Life Sciences : Medical Imaging
Manufacturing : Industrial Automation
Manufacturing : Transportation Equipment
Transportation and Warehouse : Fleet Management
Transportation and Warehouse : Rail Transportation
Communications : Data Processing, Hosting and Related Services
Defense and Space
Technical Specifications
- Category:
- Component: Board: Other HW and Boards
- Operating Systems:
-
Microsoft Windows Client*:Windows Embedded family*
- End Customer Type:
-
Enterprise
Other
Small and Medium sized Business
Included Intel Technology
Intel® Core™ Processors
9th Generation Intel® Core™ i3 Processors
9th Generation Intel® Core™ i7 Processors
9th Generation Intel® Core™ i5 Processors
Intel® Pentium® Processor
Intel® Pentium® Gold Processor Series
Data Center Technology
Intel vPro® Platform Technology
