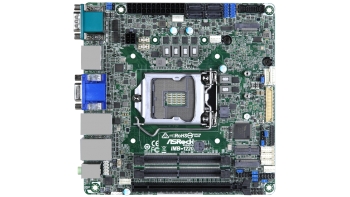

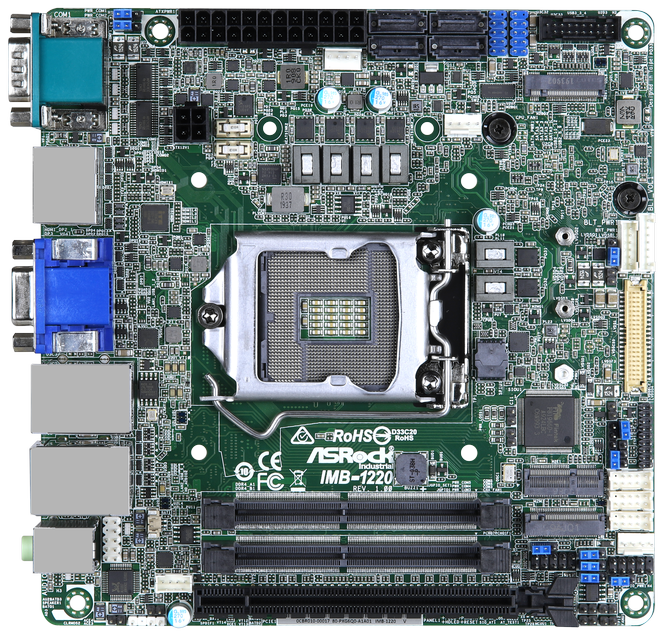

IMB-1220-D
About this offer

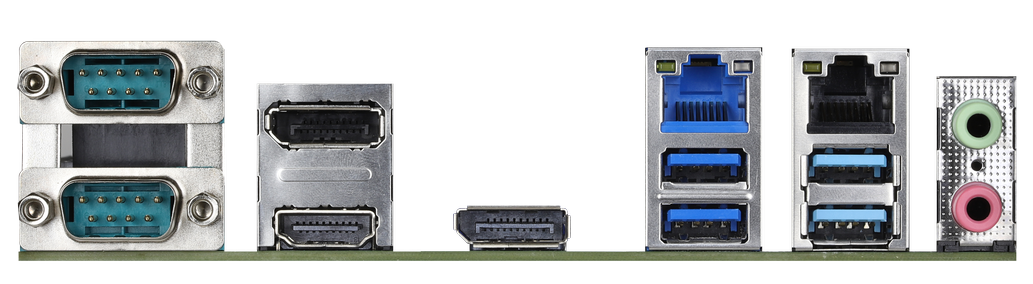

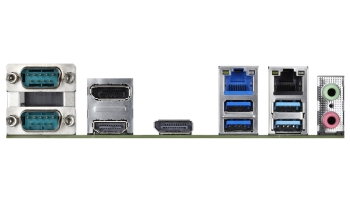

‧Intel® 10th Gen (Comet lake-S) Core ™ Processors with Q470E chipset‧2 x 260-pin SO-DIMM Support Dual Channel DDR4 2933 (i9 / i7 CPU) / 2666 (i5 / i3 CPU) /2400 (Pentium® / Celeron® CPU), up to 64GB‧1 x PCIe x16 Gen3, 6 x USB 3.2 Gen1, 4 x USB 2.0, 1 x M.2 Key E, 1 x M.2 Key M,1 x M.2 Key B, 5 x COM, 4 x SATA3‧1 x Intel® 1 Gigabit LAN, 1 x Intel 2.5 Gigabit LAN‧Support Triple display, 2 x DP1.2, 1 x eDP, 1 x HDMI 2.0a (IMB-1220-D)‧TPM 2.0 onboard‧ATX-PWR (24 + 4-pin)
Details
Regional Coverage
Americas:
Latin America Region
North America Region
Asia, Pacific, and Japan:
Southeast Asia
Australia and New Zealand
Japan
Taiwan
Rest of Asia
Korea
South Asia
Europe, Middle East, and Africa:
Middle East, Turkey, and Africa
Central Eastern Europe
Western European Union Region
Commonwealth of Independent States
Northern European Union Region
Southern European Union Region
Central European Region
People's Republic of China:
People's Republic of China
Use Case
Factory Automation
Digital Signage
Storage
Industry
Manufacturing : Industrial Automation
Automotive : Autonomous Driving
Education
Transportation and Warehouse : Warehousing and Storage
Arts and Entertainment : Amusement and Gambling
Technical Specifications
- Category:
- Component: Board: Mini-ITX
- End Customer Type:
-
Enterprise
Small and Medium sized Business
Included Intel Technology
Intel® Core™ Processors
10th Generation Intel® Core™ i7 Processors
10th Generation Intel® Core™ i3 Processors
10th Generation Intel® Core™ i9 Processors
10th Generation Intel® Core™ i5 Processors
