DVB-C / J83abc Demodulator
About this offer

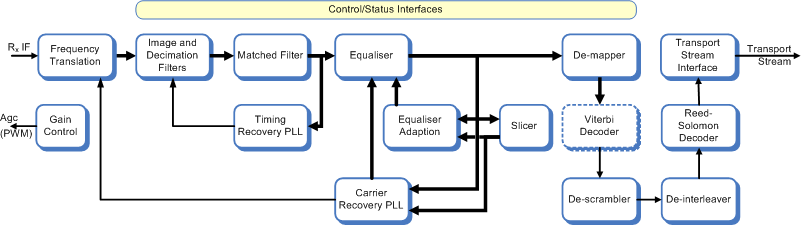

The CMS0022 Cable (QAM) Demodulator is fully compliant with the European, US and Japanese downlink cable standards DVB-C EN 300 429 and ITU J83 Annexes A/B/C (including DOCSIS 1.1/2.0). The core provides all the necessary functions between modulated QAM input to transport stream output. J.83B designs can operate either from internal memory (short interleaving modes) or from shared external memory (long interleaving modes) by means of a versatile access controller. For more up-to-date information about this core, please visit our website.
Technical Specifications
- Category:
- Software and IP Cores: FPGA Intellectual Property Cores: DSP: Modulation and Demodulation
- End Customer Type:
-
Enterprise
Small and Medium sized Business
Other
Resources
Included Intel Technology
Cyclone® IV FPGAs
Stratix® IV FPGAs
Intel Agilex® 5 FPGAs and SoC FPGAs
Cyclone® V FPGAs and SoC FPGAs
Arria® II FPGAs
Stratix® II FPGAs
Intel® Stratix® 10 FPGAs and SoC FPGAs
Intel Agilex® 7 FPGAs and SoC FPGAs
Intel Agilex® 9 FPGAs and SoC FPGAs
Stratix® V FPGAs
Stratix® III FPGAs
Intel® Cyclone® 10 FPGAs
Arria® V FPGAs and SoC FPGAs
Intel® Arria® 10 FPGAs and SoC FPGAs
Commsonic Ltd
Due to a technical difficulty, we were unable to submit the form. Please try again after a few minutes. We apologize for the inconvenience.
Commsonic Ltd
The recaptcha has identified the current interaction similar to a bot, please reload the page or try again after some time.
Commsonic develops licensable core technology blocks, ASICs, FPGAs and tools for wireless technologies. We are able to offer an array of core Intellectual Property (IP) for today's hot technology. Commsonic offers engineering design services to adapt and optimise its IP core products for customer applications and can assist with turnkey developments of related chip, software and board-level subsystems. Our expertise is primarily in the gate- and power-efficient implementation of physical-layer (PHY) functions.
