COM Express C6B-ALP
About this offer

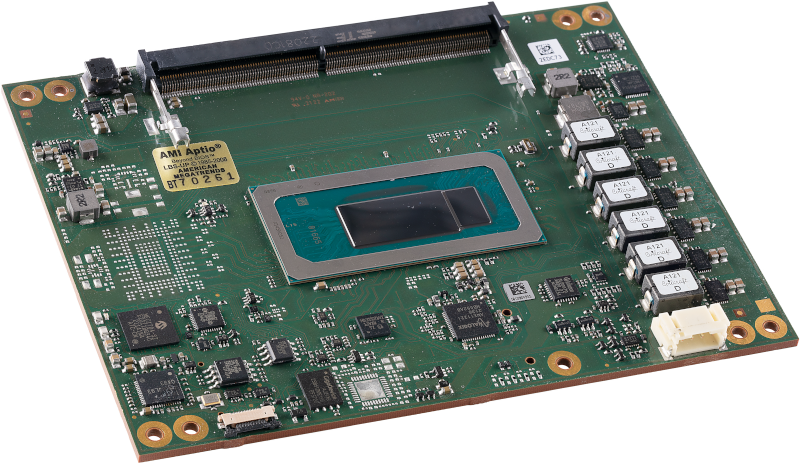

The MSC C6B-ALP COM Express module features the 12th Gen Intel® Core™ processor, giving application designers a great variety of choices of power efficient and performant compute solutions. Offering a great scalability of performance, the module is ideal for compute intense applications in medical, transportation, video surveillance and gaming. The new Intel® performance hybrid architecture combines Performance-cores and Efficient-cores with the Intel® Thread Director providing intelligent workload optimization. The architecture scales up to fourteen cores and twenty threads at 45/35W thermal design power (TDP). For applications with need for lower power dissipation, selected processor variants can be operated down to 12W TDP. For highest data throughput the module enables fast DDR5-4800 memory technology. Up to two SO-DIMMs can be installed for a total memory capacity from eight to sixty-four GB. I/O located on COM Express carrier designs can be connected to the module via eight PCIe lanes (mix of Gen 4/3) and an eight lane PEG port capable of PCIe Gen 4. The Ethernet interface provides up to 2.5GbE bandwidth based on the Intel i226 network controller. System investments are well protected through long-term availability of the module, designed, and manufactured by Avnet Embedded. In addition, the COM Express standard enables performance scaling and migrating applications to future technology upgrades when they become available.
Details
Availability and Pricing
Order Lead Time (Days): 84
Minimum Order Quantity (Unit): 40
Regional Coverage
Americas:
Latin America Region
North America Region
Asia, Pacific, and Japan:
Southeast Asia
Australia and New Zealand
Japan
Taiwan
Rest of Asia
Korea
South Asia
Europe, Middle East, and Africa:
Middle East, Turkey, and Africa
Central Eastern Europe
Western European Union Region
Commonwealth of Independent States
Northern European Union Region
Southern European Union Region
Central European Region
People's Republic of China:
People's Republic of China
Use Case
Digital Signage
Media & Entertainment : Video Editing & Visual Effects / Movies / Television
Digital Security Surveillance
Smart Building
Interactive Whiteboard
Health & Life Sciences : CT - Computerized Tomography
Health & Life Sciences : Laboratory Instrumentation / Pharma
Health & Life Sciences : Medical Robots
Health & Life Sciences : MRI - Magnetic Ressonance Imaging
Health & Life Sciences : PET - Positron Emission Tomography
Health & Life Sciences : Telemedicine
Health & Life Sciences : Ultrasound
Health & Life Sciences : X-Ray
Smart City
Factory Automation
Artificial Intelligence
Logistics & Tracking
Video Management
High Performance Computing
Industry
Finance and Insurance
Transportation and Warehouse : Warehousing and Storage
Gaming
Health and Life Sciences : Medical Devices
Health and Life Sciences : Medical Imaging
Government
Arts and Entertainment : Amusement and Gambling
Manufacturing : Industrial Automation
Manufacturing : Transportation Equipment
Technical Specifications
- Category:
- Component: Board: COM Express
- Operating Systems:
-
Linux*:Other Linux family*
Linux*:Other Linux family*:Yocto Project*
Microsoft Windows Client*:Windows 10 family*
Microsoft Windows Client*:Windows 10 family*:Windows 10 IoT Enterprise*
- End Customer Type:
-
Small and Medium sized Business
Enterprise
Included Intel Technology
Intel® Core™ Processors
Intel® Celeron® Processor
Intel® Celeron® Processor 7000 Series
Resources
