XIP2113B: Balanced IP core for ChaCha20-Poly1305 Authenticated Encryption with Associate Data (AEAD) scheme.
About this offer

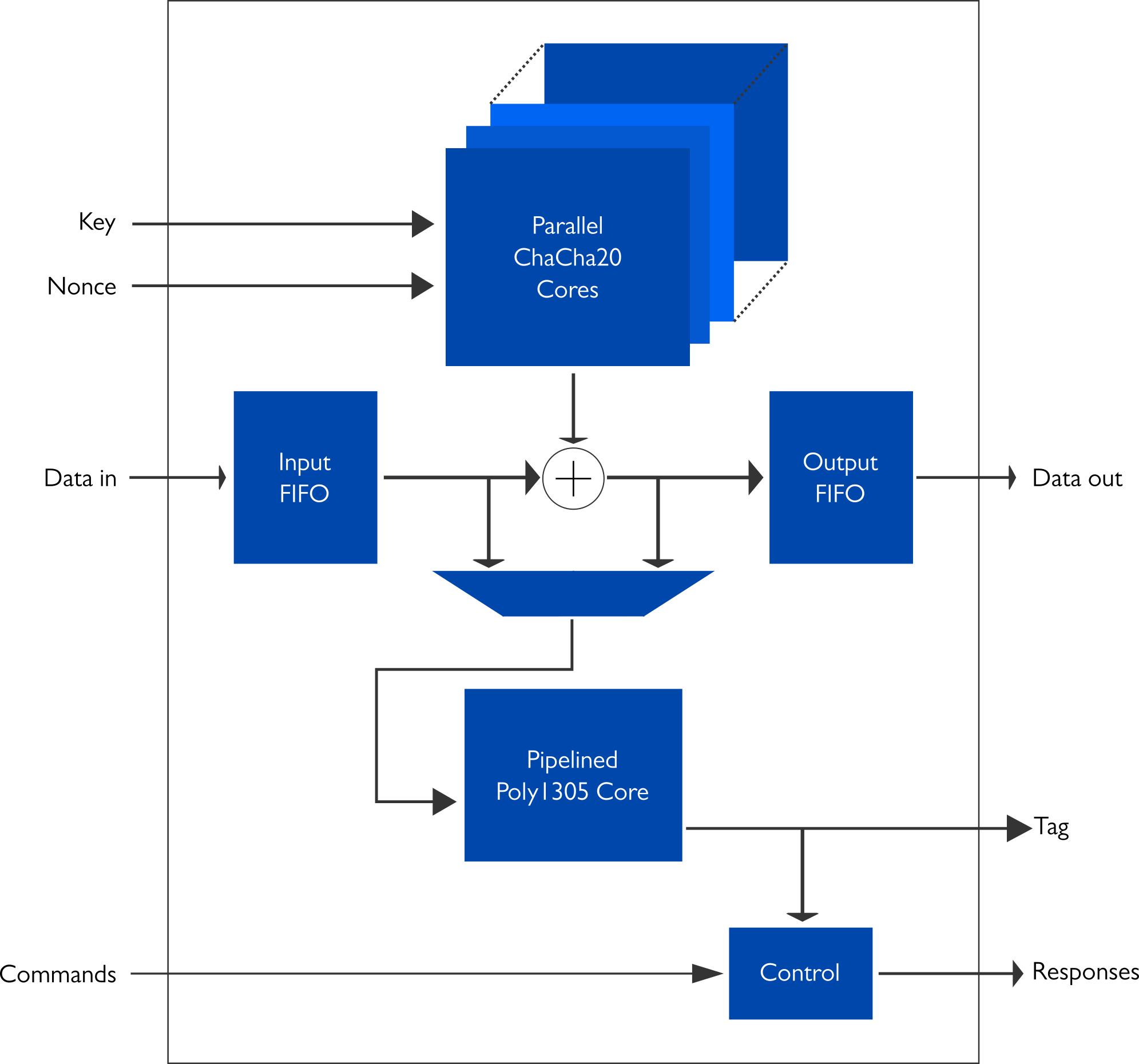

XIP2113B from Xiphera is a balanced Intellectual Property (IP) core designed for ChaCha20-Poly1305 Authenticated Encryption with Associated Data (AEAD) scheme protecting both confidentiality and authenticity at the same time. The current definitive standard for ChaCha20-Poly1305 is RFC 8439, “ChaCha20 and Poly1305 for IETF Protocols”.ChaCha20-Poly1305 is a combination of the ChaCha20 stream cipher and Poly1305 message authentication code, both algorithms designed by Daniel J. Bernstein, and it is used an AEAD scheme in multiple protocols, including TLS 1.3.Moderate resource requirements: The entire XIP2113B requires 5052 Adaptive Lookup Modules (ALMs) (Intel® Cyclone® 10 GX).Performance: XIP2113B achieves a throughput in several Gbps range, for example 2.99+ Gbps in Intel® Cyclone® 10 GX. Even higher throughputs can be achieved with parallel instantiations of XIP2113B.High Throughput with Short Latency: XIP2113B offers very high throughput for a single stream of data as it is capable to process one 16-byte block per clock cycle after certain initial latency. The length of the initial latency depends on the length of the message and XIP2113B has been carefully optimized to minimize this initial latency. Constant Latency: The execution time of XIP2113B is independent of the key values and message contents (apart from the message length), and consequently provides full protection against timing-based side-channel attacks. Standard Compliance: XIP2113B is fully compliant with RFC 8439 “ChaCha20 and Poly1305 for IETF Protocols”.
Details
Regional Coverage
Americas:
Latin America Region
North America Region
Asia, Pacific, and Japan:
Southeast Asia
Australia and New Zealand
Japan
Taiwan
Rest of Asia
Korea
South Asia
Europe, Middle East, and Africa:
Middle East, Turkey, and Africa
Central Eastern Europe
Western European Union Region
Commonwealth of Independent States
Northern European Union Region
Southern European Union Region
Central European Region
People's Republic of China:
People's Republic of China
Use Case
Others
Cloud Computing : Hybrid Cloud
Cloud Computing : Private Cloud
Cloud Computing : Private Cloud and Software Defined Infrastructure
Cloud Computing : Public Cloud
High Performance Computing
Factory Automation
Industry
Communications : Data Processing, Hosting and Related Services
Communications : Telecommunications
Energy and Utilities : Electric Power
Energy and Utilities : Oil and Gas
Finance and Insurance
Defense and Space
Government
Automotive : Autonomous Driving
Technical Specifications
- Category:
- Software and IP Cores: FPGA Intellectual Property Cores: DSP: Error Detection and Correction
- Operating Systems:
-
OS Independent:OS Independent family
OS Independent:OS Independent family:OS Independent
- End Customer Type:
-
Small and Medium sized Business
Enterprise
Included Intel Technology
Resources
Xiphera Ltd
Due to a technical difficulty, we were unable to submit the form. Please try again after a few minutes. We apologize for the inconvenience.
Xiphera Ltd
The recaptcha has identified the current interaction similar to a bot, please reload the page or try again after some time.
Xiphera Ltd is a Finnish company designing hardware-based security solutions using standardized cryptographic algorithms. We have strong cryptographic expertise, extensive experience in system design, and deep knowledge on reprogrammable logic, enabling us to protect our customers’ critical information and assets. Xiphera's product portfolio consists of secure and efficient cryptographic intellectual property cores, which enable the design of an embedded system meeting the cybersecurity requirements for confidentiality, integrity, authenticity, and non-repudiability. Xiphera's design philosophy targets a direct implementation of the cryptographic algorithms in hardware, and therefore the cryptographic IP cores have been designed for Field Programmable Gate Arrays (FPGAs) as the target technology.Xiphera's products and solutions have wide applicability in different end markets, where the customers' threat models and performance requirements vary considerably. With a high-reliability portfolio and extensive expertise, Xiphera’s value proposition is to offer peace of mind in a dangerous world.
