SCB-1942
About this offer

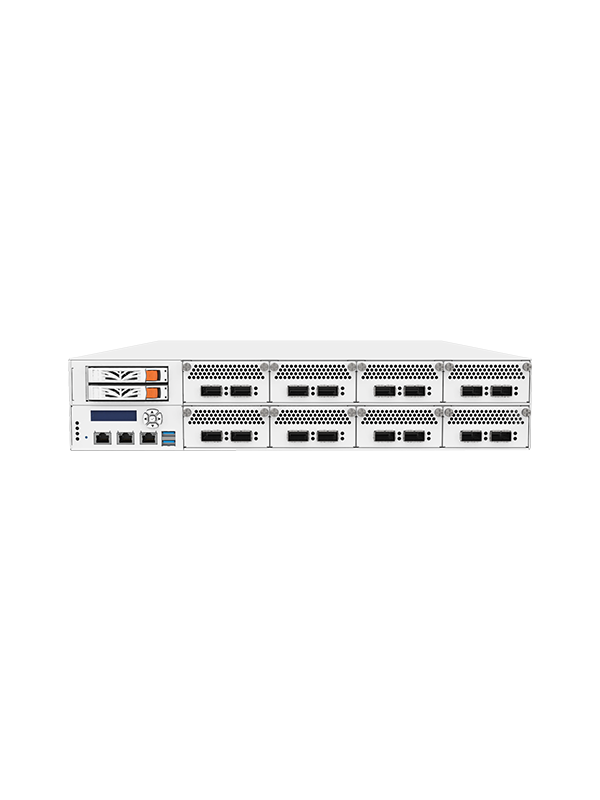

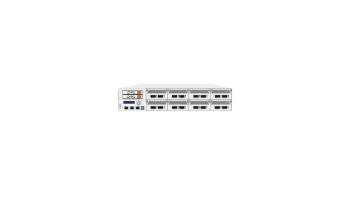

The SCB-1942 is a 2U Rack-Mount hardware networking system. Supporting 4th Gen Intel® Xeon® Scalable Processors (Sapphire Rapids) and Intel® C741 PCH. The new generation platform provides remarkable performance with increased CPU cores (up to 60C per CPU) and 4 Ultra Path Interconnect (UPI) links up to 16 GT/s. The SCB-1942 supports 16x channels DDR5 register ECC RDIMM (up to 4800 MHz) and maximum memory capacity is up to 1.5TB. With 80 PCI express lanes per CPU, the SCB-1942 can support up to 8x PCIe x8 slots (4x PCIe Gen5 + 4x PCIe Gen4) for network expansion modules for flexible port configuration, such as 1/10/40/100 Gigabit fiber, Gigabit Copper/Fiber with or without BYPASS function. The SCB-1942 Series also provides the flexibility to change the 2x PCIe slots to 1x PCIe x16 slot for standard PCIe form factor which can install off-the-shelf add-on card for additional function required. It can support 400G NIC card installed such as Mellanox PCIe 5.0 NIC. The maximum ethernet bandwidth capacity is up to 1,200GbE.The strong IO elements of SCB-1942 include two management port (one for management, another for option IPMI function), a console port, USB ports, LEDs for power/HDD/2x GPIO. In addition, the SCB-1942 also supports two front hot-swappable 2.5” SATA HDDs/SSDs and onboard CompactFlash/m-SATA/mini-PCIe, M.2 slot for network storage application.
Details
Availability and Pricing
Minimum Order Quantity (Unit): 1
Order Lead Time (Days): 60
Regional Coverage
Americas:
Latin America Region
North America Region
Asia, Pacific, and Japan:
Southeast Asia
Australia and New Zealand
Japan
Taiwan
Rest of Asia
Korea
South Asia
Europe, Middle East, and Africa:
Middle East, Turkey, and Africa
Central Eastern Europe
Western European Union Region
Commonwealth of Independent States
Northern European Union Region
Southern European Union Region
Central European Region
People's Republic of China:
People's Republic of China
Use Case
Advanced Analytics
High Performance Computing
Smart City
Artificial Intelligence : Deep Learning
Artificial Intelligence : Facial Detection/Recognition/Classification
Artificial Intelligence : Image/Object Detection/ Recognition/Classification
Artificial Intelligence : Video Surveillance and Analytics
Cloud Computing : Hybrid Cloud
Cloud Computing : Private Cloud
Cloud Computing : Private Cloud and Software Defined Infrastructure
Cloud Computing : Public Cloud
Industry
Communications : Publishing (except Internet)
Communications : Telecommunications
Communications : Data Processing, Hosting and Related Services
Technical Specifications
- Category:
- System: Communications & Networking: Network Appliance
- Operating Systems:
-
Microsoft Windows Client*:Windows 10 family*
Microsoft Windows Client*:Windows 10 family*:Windows 10*
- End Customer Type:
-
Small and Medium sized Business
Enterprise
Other
Included Intel Technology
Intel® Xeon® Processors
4th Generation Intel® Xeon® Scalable Processors
Resources
AEWIN TECHNOLOGIES CO., LTD.
Due to a technical difficulty, we were unable to submit the form. Please try again after a few minutes. We apologize for the inconvenience.
AEWIN TECHNOLOGIES CO., LTD.
The recaptcha has identified the current interaction similar to a bot, please reload the page or try again after some time.
AEWIN Technologies, a member of Qisda Business Group, provides smartly designed networking platforms for customers of any scale. With 20 years of experience building high performance network forwarding platforms, AEWIN has extensive knowledge in building secure and reliable systems trusted by some of the top Network Security experts as the foundation of their network solutions. We offer products featuring the full range of Intel® processors for wide range of applications. AEWIN can be your hardware partner with flexible design and customization options to meet your stringent requirements. We have profound accumulated experience and state-of-art know-how. With ISO 900/ISO 14001/ISO 45001 / OHSAS 18001/IECQ QC080000certification, AEWIN Technologies Co., Ltd. is the best solutions for Network Appliance and Edge Computing Servers. AEWIN has comprehensive in-house resources such as modular design workflow, overall quality control and management, and elite engineering team that is composed of aces from related industries, AEWIN is able to meet any unique ODM/OEM requirements in network appliances, edge servers, and cloud servers. Application for AEWIN Network Systems: Edge AIMEC Servers 5G gNBSD-WAN Security Gateways Virus Scanners & IDS Severs Firewalls Application Delivery Controller Load Balancer UTM (Unified Threat Management)WAN Optimization
