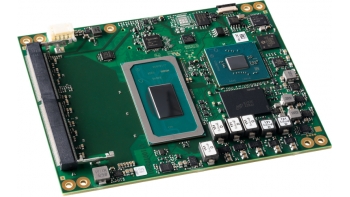

COM Express C6B-TLH
About this offer
The MSC C6B-TLH COM Express module features the 11th Gen Intel® Core™ vPro®, Intel® Xeon® W-11000E Series, and Intel® Celeron® processors, giving application designers a great variety of choices of power efficient and performant compute solutions. CPU core count scales from two cores/two hyper threads up to eight cores/sixteen hyper threads. Processor variants with 25W and 45/35W thermal design power (TDP) are available. With eight PCIe Gen 3 lanes and a sixteen lane PEG port based on PCIe Gen 3 and 4, the module is well equipped to handle demanding I/O traffic. The Ethernet controller based on Intel® i225 provides 1GbE and 2.5GbE bandwidth and offers TSN capability for real-time applications. For further real-time support, TCC is enabled on boards equipped with the Intel® Xeon® W-11000E Series processor. Board memory capacities is configurable from 8GB to 64GB via two SO-DIMM sockets. Error correction code (ECC) is optionally supported by dedicated module variants and use of ECC SO-DIMMs. Selection variants of the MSC C6B-TLH can be operated at extended temperature range with full 24/7 utilization. This supports system designs exposed to harsh environmental conditions that require a reliable compute engine. System investments are well protected through long-term availability of the module, designed and manufactured by Avnet Embedded. In addition, the COM Express standard enables performance scaling and migrating applications to future technology upgrades when they become available.
Details
Availability and Pricing
Minimum Order Quantity (Unit): 60
Order Lead Time (Days): 84
Regional Coverage
Americas:
Latin America Region
North America Region
Asia, Pacific, and Japan:
Southeast Asia
Australia and New Zealand
Japan
Taiwan
Rest of Asia
Korea
South Asia
Europe, Middle East, and Africa:
Middle East, Turkey, and Africa
Central Eastern Europe
Western European Union Region
Commonwealth of Independent States
Northern European Union Region
Southern European Union Region
Central European Region
People's Republic of China:
People's Republic of China
Use Case
Digital Security Surveillance
High Performance Computing
Factory Automation
Advanced Analytics
Video Management
Digital Signage
Smart City
Artificial Intelligence : Anomaly Detection
Artificial Intelligence : Drug Discovery
Artificial Intelligence : Facial Detection/Recognition/Classification
Artificial Intelligence : Image/Object Detection/ Recognition/Classification
Artificial Intelligence : Machine Learning
Artificial Intelligence : Medical imaging, Analysis and Diagnostics
Artificial Intelligence : Predictive Maintenance and Analytics
Artificial Intelligence : Robotic Process Automation
Artificial Intelligence : Video Surveillance and Analytics
Artificial Intelligence : Deep Learning
Industry
Defense and Space
Health and Life Sciences : Medical Devices
Health and Life Sciences : Medical Imaging
Finance and Insurance
Energy and Utilities
Manufacturing
Government
Gaming
Transportation and Warehouse
Arts and Entertainment : Amusement and Gambling
Technical Specifications
- Category:
- Component: Board: COM Express
- Operating Systems:
-
Linux*:Other Linux family*
Linux*:Other Linux family*:Yocto Project*
Microsoft Windows Client*:Windows 10 family*
Microsoft Windows Client*:Windows 10 family*:Windows 10 IoT Enterprise*
- End Customer Type:
-
Small and Medium sized Business
Enterprise
Included Intel Technology
Intel® Xeon® Processors
Intel® Xeon® W Processor
Intel® Celeron® Processor
Intel® Celeron® Processor 6000 Series
Intel® Core™ Processors
11th Generation Intel® Core™ i3 Processors
11th Generation Intel® Core™ i7 Processors
11th Generation Intel® Core™ i5 Processors
Intel vPro® Platform Technology
