XIP1103H: AES256-CTR High-Speed IP Core

About this offer

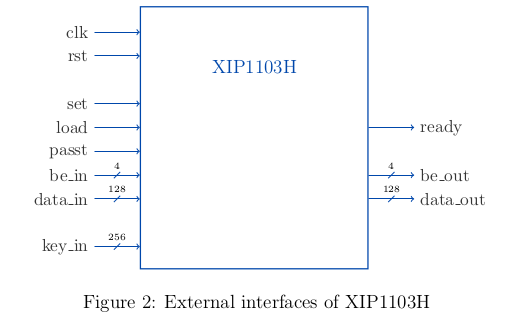

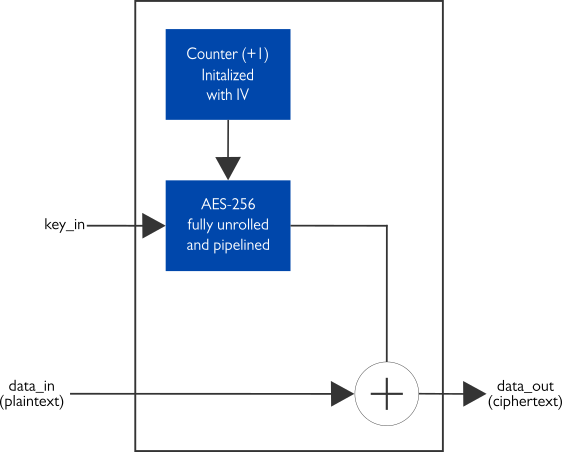

XIP1103H from Xiphera is a high-speed Intellectual Property (IP) core implementing the Advanced Encryption Standard (AES)in Counter Mode (CTR). The counter mode of operation effectively turns a block cipher into a stream cipher, and provides a number of advantages from an implementation point of view. These include the ability to use the same key expansion functionality and datapath for both encryption and decryption, and the possibility to parallelize the FPGA-based implementation by unrolling and pipelining. Moderate resource requirements: The entire XIP1103H requires 17076 Adaptive Lookup Modules (ALMs) (Intel Agilex® F), and does not require any multipliers or DSPBlocks. Performance: Despite its moderate size, XIP1103H achieves a throughput in the tens of Gbps range, for example 103.48 Gbps in Intel Agilex® F. Standard Compliance: XIP1103H is fully compliant with both the Advanced Encryption Algorithm (AES) standard FIPS-197, as well as with the Counter Mode (CTR) standard SP 800-38A.128-bit and 256-bit Interfaces ease the integration of XIP1103H with other FPGA logic and/or control software.

Details

Regional Coverage

Americas:
Latin America Region
North America Region

Asia, Pacific, and Japan:
Southeast Asia
Australia and New Zealand
Japan
Taiwan
Rest of Asia
Korea
South Asia

Europe, Middle East, and Africa:
Middle East, Turkey, and Africa
Central Eastern Europe
Western European Union Region
Commonwealth of Independent States
Northern European Union Region
Southern European Union Region
Central European Region

People's Republic of China:
People's Republic of China

Use Case

Cloud Computing : Hybrid Cloud

Cloud Computing : Private Cloud

Cloud Computing : Private Cloud and Software Defined Infrastructure

Cloud Computing : Public Cloud

Factory Automation

High Performance Computing

Energy Monitoring

Industry

Government

Communications : Data Processing, Hosting and Related Services

Communications : Telecommunications

Defense and Space

Energy and Utilities : Electric Power

Energy and Utilities : Oil and Gas

Automotive : Autonomous Driving

Technical Specifications

Category:
Software and IP Cores: FPGA Intellectual Property Cores: Interface Protocols: Communications
End Customer Type:

Small and Medium sized Business

Enterprise

Included Intel Technology

Stratix® V FPGAs
Stratix® V GX FPGA
Stratix® V E FPGA
Stratix® V GS FPGA
Stratix® V GT FPGA
Intel® Cyclone® 10 FPGAs
Intel® Cyclone® 10 GX FPGA
Intel® Cyclone® 10 LP FPGA
Intel® Stratix® 10 FPGAs and SoC FPGAs
Intel® Stratix® 10 SX SoC FPGA
Intel® Stratix® 10 AX SoC FPGA
Intel® Stratix® 10 MX FPGA
Intel® Stratix® 10 DX FPGA
Intel® Stratix® 10 TX FPGA
Intel® Stratix® 10 NX FPGA
Intel® Stratix® 10 GX FPGA
Cyclone® V FPGAs and SoC FPGAs
Cyclone® V SE SoC FPGA
Cyclone® V E FPGA
Cyclone® V GX FPGA
Cyclone® V GT FPGA
Cyclone® V ST SoC FPGA
Cyclone® V SX SoC FPGA
Arria® V FPGAs and SoC FPGAs
Arria® V GX FPGA
Arria® V GZ FPGA
Arria® V SX SoC FPGA
Arria® V GT FPGA
Arria® V ST SoC FPGA
Intel Agilex® 7 FPGAs and SoC FPGAs
Intel Agilex® 7 FPGAs and SoC FPGAs F-Series
Intel® Arria® 10 FPGAs and SoC FPGAs
Intel® Arria® 10 GX FPGA
Intel® Arria® 10 SX SoC FPGA
Intel® Arria® 10 GT FPGA

Resources

XIP1103H: AES256-CTR product brief
Resource Type: Product Brief
Published On: Jun 03, 2021
XIP1103H: AES256-CTR IP core
Resource Type: URL
Published On: Sep 08, 2023

Xiphera Ltd

Due to a technical difficulty, we were unable to submit the form. Please try again after a few minutes. We apologize for the inconvenience.

Clear

Your registration cannot proceed. The materials on this site are subject to U.S. and other applicable export control laws and are not accessible from all locations.

Xiphera Ltd

The recaptcha has identified the current interaction similar to a bot, please reload the page or try again after some time.

Xiphera Ltd

Xiphera Ltd is a Finnish company designing hardware-based security solutions using standardized cryptographic algorithms. We have strong cryptographic expertise, extensive experience in system design, and deep knowledge on reprogrammable logic, enabling us to protect our customers’ critical information and assets. Xiphera's product portfolio consists of secure and efficient cryptographic intellectual property cores, which enable the design of an embedded system meeting the cybersecurity requirements for confidentiality, integrity, authenticity, and non-repudiability. Xiphera's design philosophy targets a direct implementation of the cryptographic algorithms in hardware, and therefore the cryptographic IP cores have been designed for Field Programmable Gate Arrays (FPGAs) as the target technology.Xiphera's products and solutions have wide applicability in different end markets, where the customers' threat models and performance requirements vary considerably. With a high-reliability portfolio and extensive expertise, Xiphera’s value proposition is to offer peace of mind in a dangerous world.
