CAN-CTRL: CAN 2.0, CAN FD, & CAN XL Bus Controller Core
About this offer

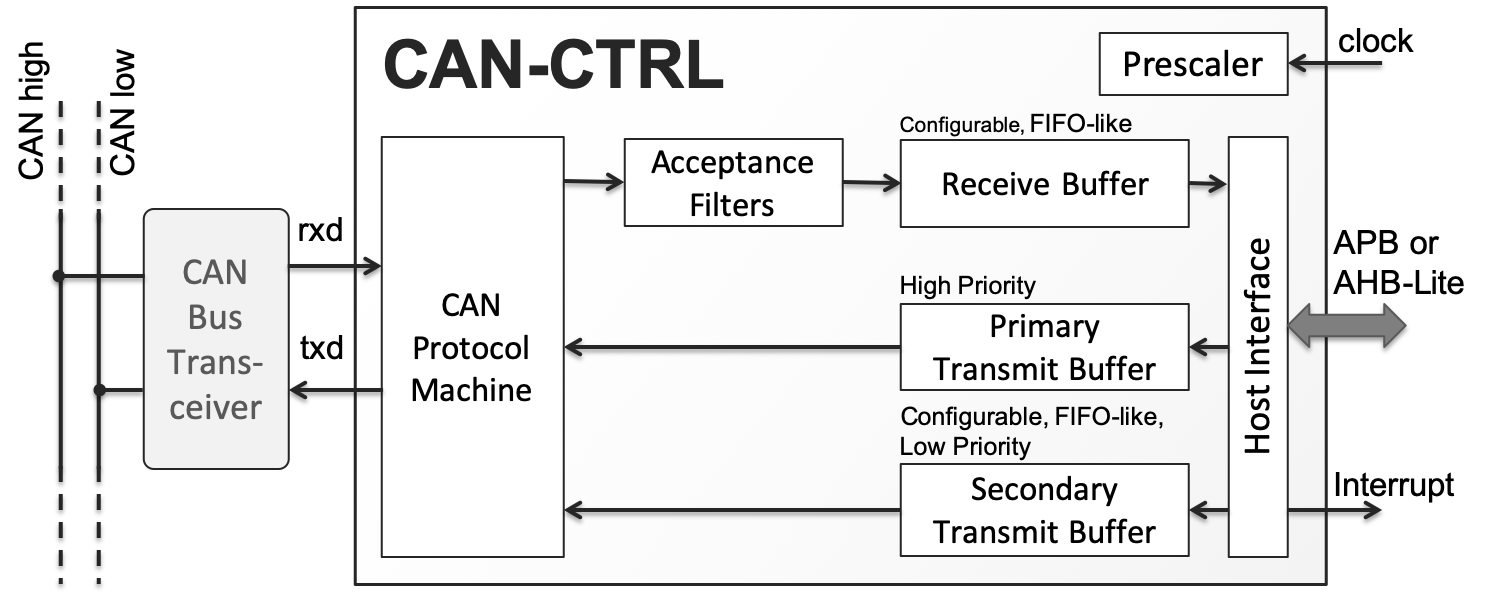

The CAN-CTRL is a CAN bus controller that performs serial communication according to the CAN 2.0, CAN FD, and CAN XL specifications. The CAN core is easy to use and integrate, featuring programmable interrupts, data and baud rates; and a configurable number of independently programmable acceptance filters. It implements a flexible buffering scheme, allowing fine-tuning of the core size to satisfy the requirements of each specific application. The number of receive buffers is synthesis-time configurable. Two types of transmit buffers are implemented: a high-priority primary transmit buffer (PTB) and a lower-priority secondary transmit buffer (STB). An optional wrapper instantiating multiple CAN controller cores eases integration in cases where multiple bus nodes need to be controlled by the same host processor. Finally, the CAN-CTRL provides error analysis, diagnosis, maintenance, and optimization features. The CAN bus controller comes in three variants: 2.0, FD, and XL. The 2.0 variant supports only the CAN 2.0 specification, the FD variant adds support for CAN FD, and the XL variant supports the CAN 2.0, CAN FD, and CAN XL standards. Each of the three core variants is available in two versions: Standard and safety-enhanced. The safety-enhanced version implements ECC for SRAMs protection and uses spatial redundancy for protecting the inner logic of the core. The safety-enhanced versions are certified as ISO-26262 ASIL-D ready. The CAN-CTRL is extensively verified, and proven in several plug fests and a large number of production designs.
Technical Specifications
- Category:
- Software and IP Cores: FPGA Intellectual Property Cores: Interface Protocols: Communications
- End Customer Type:
-
Small and Medium sized Business
Other
Enterprise
Resources
Included Intel Technology
Cyclone® V FPGAs and SoC FPGAs
Intel Agilex® 5 FPGAs and SoC FPGAs
