5.3. Design Examples

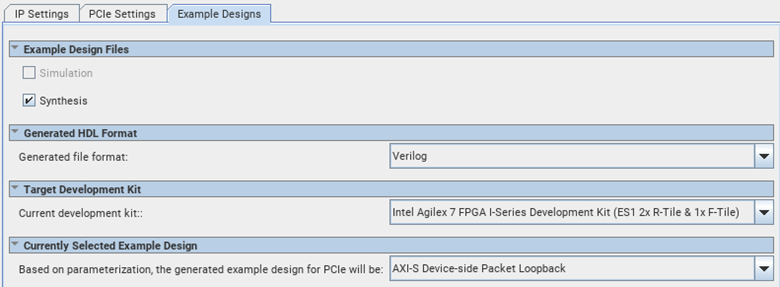

Figure 16. Design Example Parameters
Table 49.  Design Example Parameters
Parameter Value Default Value Description
Simulation Off Off When the Simulation box is checked, all necessary filesets for simulation are generated.
Note: Design example simulation is not supported in the current release.
Synthesis On/Off On When the Synthesis box is checked, all necessary filesets for synthesis are generated. When unchecked, only the Platform Designer system is generated.
Generated file format Verilog Verilog HDL format.
Current development kit Agilex™ 7 FPGA I-Series Development Kit (ES1 2xR-Tile & 1xF-Tile) Agilex™ 7 FPGA I-Series Development Kit (ES1 2xR-Tile & 1xF-Tile) Selects a target FPGA development kit board.
Note: If an FPGA development board is selected, the target device used for generation is the one that matches the device on the development kit board.
Currently selected example design AXI-S Device-side Packet Loopback AXI-S Device-side Packet Loopback Selects a design example. Only the AXI-S Device-side Packet Loopback design example is supported in the current release.
Note:
  • Design examples for 2x8 modes are not supported.
  • Design examples for BAM, BAS, BAM+BAS, BAM+MCDMA, and BAM+BAS+MCDMA modes are not supported.
  • Design examples for Root Port mode is not supported.

Design example generation includes an AXI Streaming PCIe IP (intel_pcie_ss_axi). Hence, the Example Designs tab includes the AXI Streaming PCIe IP Parameter Editor. Some of the PCIe Interface parameters are automatically configured per the AXI MCDMA IP parameter values and greyed out.

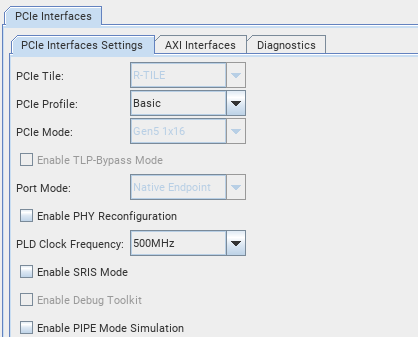

Figure 17. PCIe Interface Settings Parameters
Table 50.  PCIe Interface Settings Parameters
Parameter Value Default Value Description
PCIe Tile R-Tile R-Tile Selects the supported Tile of the PCIe Interface.
Note: Only R-Tile is supported.
PCIe Profile Basic

Basic+

Virtual

Virtual+

Basic Selects functional features based on the profile like virtualization, additional interfaces, number of endpoints, etc.
PCIe Mode Gen5 1x16

Gen5 2x8

Gen4 1x16

Gen4 2x8

Gen3 1x16

Gen3 2x8

Gen5 1x16 Selects a PCIe mode.
Note:
  • The mode value is passed from the AXI MCDMA IP Settings.
  • Design examples for 2x8 modes are not supported.
Port Mode Root Port

Native Endpoint

Native Endpoint Selects a PCIe mode for the AXI Streaming PCIe IP.
Note: The mode value is passed from the AXI MCDMA IP Settings.
Enable Debug Toolkit Off Off Debug Toolkit is not supported.

Refer to the AXI Streaming Intel® FPGA IP for PCI Express User Guide for other PCIe Interface parameter descriptions.
