3.3. Remote Access Parameters

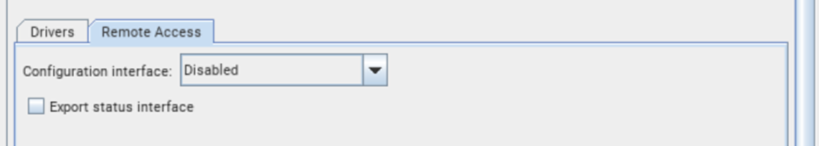

Figure 10. Group: Remote Access

Table 11.  Group: Remote Access
Display Name Description
Configuration interface The configuration interface enables access to Control and Status Registers (CSRs). Possible values are:

Disabled – No CSR bus is exported.

Export – Sideband AXI-Lite CSR buses for the Global CSR and individual drivers are exported.

Remote Access via JTAG – A JTAG remote interface is generated internally. You can interact with the Test Engine through the System Console.

Export status interface Status interface indicates the pass/fail status of all drivers. Exported signals are:

status_done is asserted if all drivers are done.

status_error is asserted if any driver reports an error.
