6.3.5.1. Single Rank x 8 Discrete (Component) Topology
Nine memory devices are required to cover 72 bits of data in a single channel, with one rank and ×8 memory devices.
The interface covers data bytes (DQ/DQS), address signals, command signals (BA, BG, RAS, CAS, WE, ACT, PAR), control signals (CKE, CS, ODT) and clocks (CLK).

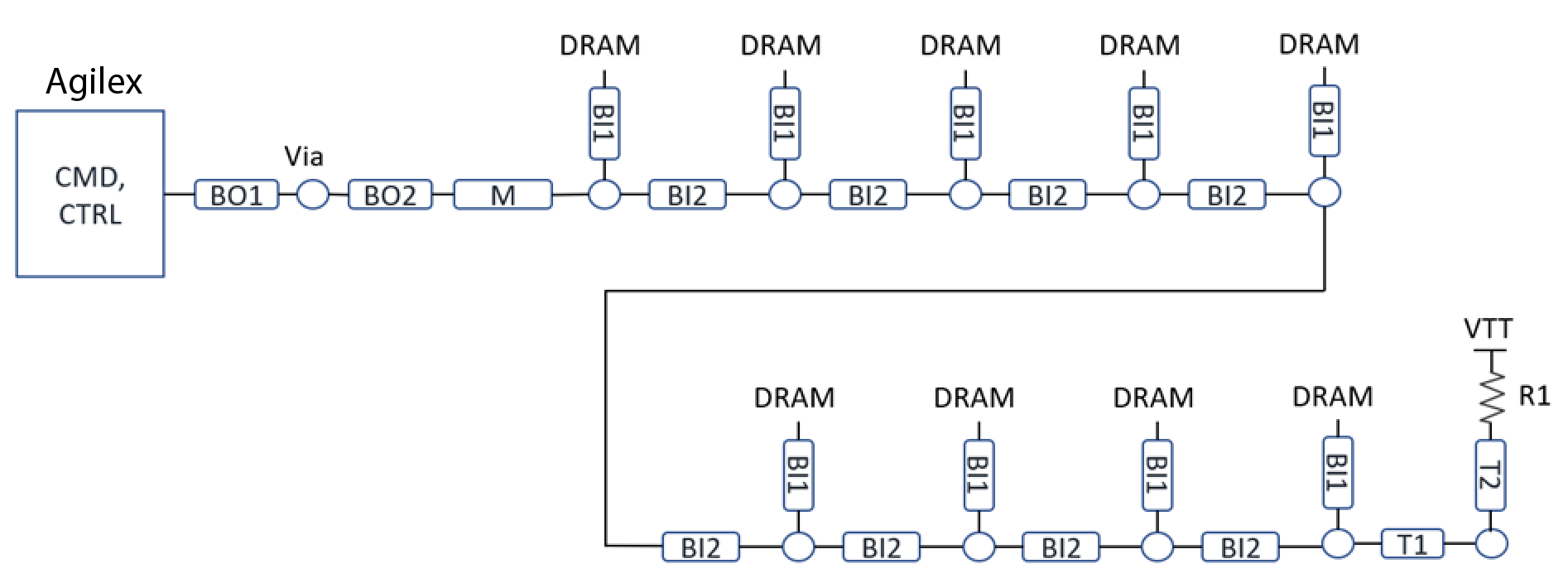

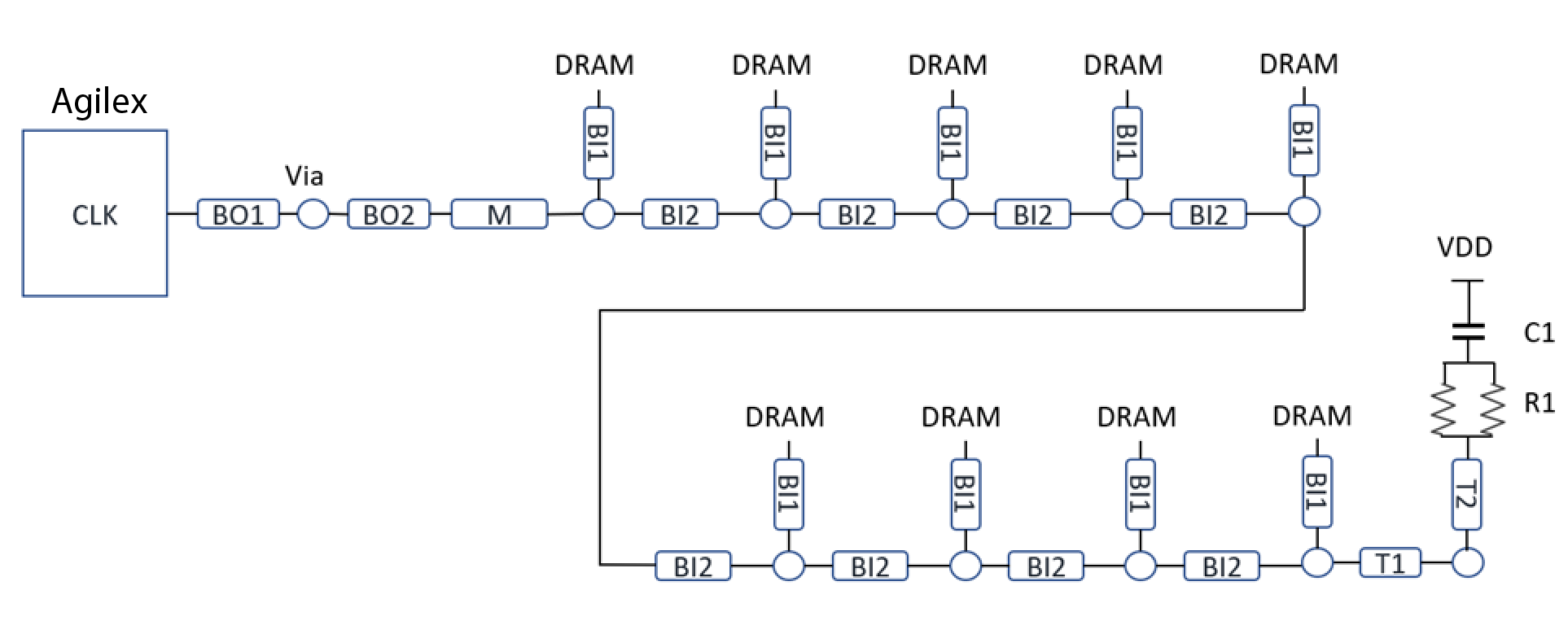

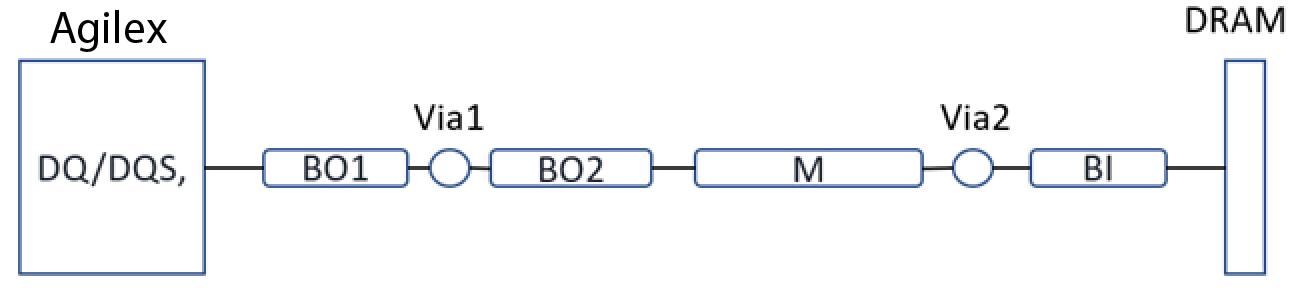

Figure 26. Signal connections for DDR4 Single Rank × 8 Discrete Topology (9 memory devices to cover 72 bits)
![](/content/dam/docs/us/en/772538/23-2-4-0-0/ksx1572026568891.png)
![](/content/dam/docs/us/en/772538/23-2-4-0-0/lvx1572026655132.png)
![](/content/dam/docs/us/en/772538/23-2-4-0-0/ovg1572026734580.png)
Signal Group | Segment | Routing Layer | Max Length (mil) | Target Zse (ohm) | Trace Width, W (mil) | Trace Spacing, S1 (mil): Within Group | Trace Spacing, S2 (mil): CMD/CTRL/CLK to DQ/DQS | Trace Spacing, S3 (mil): DQ Nibble to Nibble | Trace Spacing (mil), Within DIFF pair | Trace Spacing (mil), DQS pair to DQ | Trace Spacing (mil), CLK pair to CMD/CTRL/CKE | Rtt / Ctt | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Segment | Total MB | ||||||||||||
CLK | BO1 | US | 50 | To first DRAM: 4000 To last DRAM: 9600 | 4 | 5, 17 | 17 | 4 | 17 | R1=36Ω C1=10nF | |||
BO2 | SL | 1000 | 4 | 5, 17 | 17 | 4 | 17 | ||||||
M | SL | 40 | 5.5 | 12 (3h) | 4 | 12 (3h) | |||||||
BI1 | US | 50 | 3 | 12 (3h) | 4 | 12 (3h) | |||||||
BI2 | SL | 700 | 50 | 3 | 12 (3h) | 4 | 12 (3h) | ||||||
T1 | SL | 300 | 3 | 12 (3h) | 4 | 12 (3h) | |||||||
T2 | US | 50 | 3 | 12 (3h) | 4 | 12 (3h) | |||||||
CMD, CTRL, Alert | BO1 | US | 50 | To first DRAM: 4000 To last DRAM: 9600 | 4 | 5, 17 | 17 | R1=36Ω alert_n requires an external pullup resistor to VDD (1.2V) of approximately 1KΩ. | |||||
BO2 | SL | 1000 | 4 | 5, 17 | 17 | ||||||||
M | SL | 40 | 5.5 | 8 (2h) | 12 (3h) | ||||||||
BI1 | US | 50 | 3 | 8 (2h) | 12 (3h) | ||||||||
BI2 | SL | 700 | 50 | 3 | 8 (2h) | 12 (3h) | |||||||
T1 | SL | 300 | 3 | 8 (2h) | 12 (3h) | ||||||||
T2 | US | 50 | 3 | 8 (2h) | 12 (3h) | ||||||||
DQ | BO1 | US | 50 | 5000 | 4 | 5, 17 | 17 | ||||||
BO2 | SL | 1000 | 4 | 5, 17 | 17 | ||||||||
M | SL | 45 | 4.5 | 8 (2h) | 12 (3h) | ||||||||
BI | US | 50 | 4 | 8 (2h) | 12 (3h) | ||||||||
DQS | BO1 | US | 50 | 5000 | 4 | 4 | 17 | ||||||
BO2 | SL | 1000 | 4 | 4 | 17 | ||||||||
M | SL | 45 | 4.5 | 4 | 12 (3h) | ||||||||
BI | US | 50 | 4 | 4 | 12 (3h) | ||||||||
For an explanation of the guidelines represented in this table, refer to the bullet points immediately following Figure 22. |
