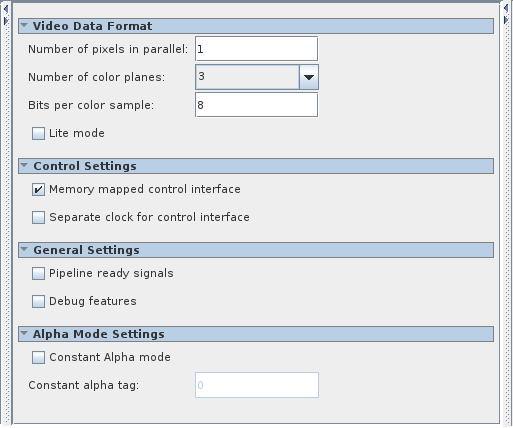

10.2. Chroma Key IP Parameters

The IP offers compile-time parameters.
Table 58.  Chroma Key IP Parameters
Parameter Values Description
Video Data Format
Number of pixels in parallel 1 to 8 Select the number of pixels in parallel.
Number of color planes 1 or 3 Select the number of input color planes per pixel. (Output color planes are N+1 for carriage of alpha channel)
Bits per color sample 8 to 16 Select the number of bits per color sample.
Lite mode On or off Turn on to use the lite variant of the Intel FPGA Streaming Video protocol.
Control
Memory-mapped control interface On or off

Turn on to specify the pixel matching ranges and alpha values for pixel tagging.

The memory-mapped control interface is mandatory in lite mode.
Separate clock for control interface On or off Turn on to enable a separate clock for the control interface.
Chroma Key Behavior
Constant Alpha Mode On or off Turn on for constant alpha mode.
Constant Alpha Tag 0 to 65535 If Constant Alpha Mode is on, the IP appends the Constant Alpha Tag value to each pixel.
General
Debug features On or off Turn on for debug features (not applicable for lite mode).
Pipeline Ready On or off Turn on to pipeline the Tready signal.
Figure 18. Chroma Key IP GUI
